5017 - Troy-Bilt Front-Tine Mini-Tiller (SN: C001001 - C017818) EDGER ATTACHMENT Parts Diagram

Front-Tine Mini-Tiller

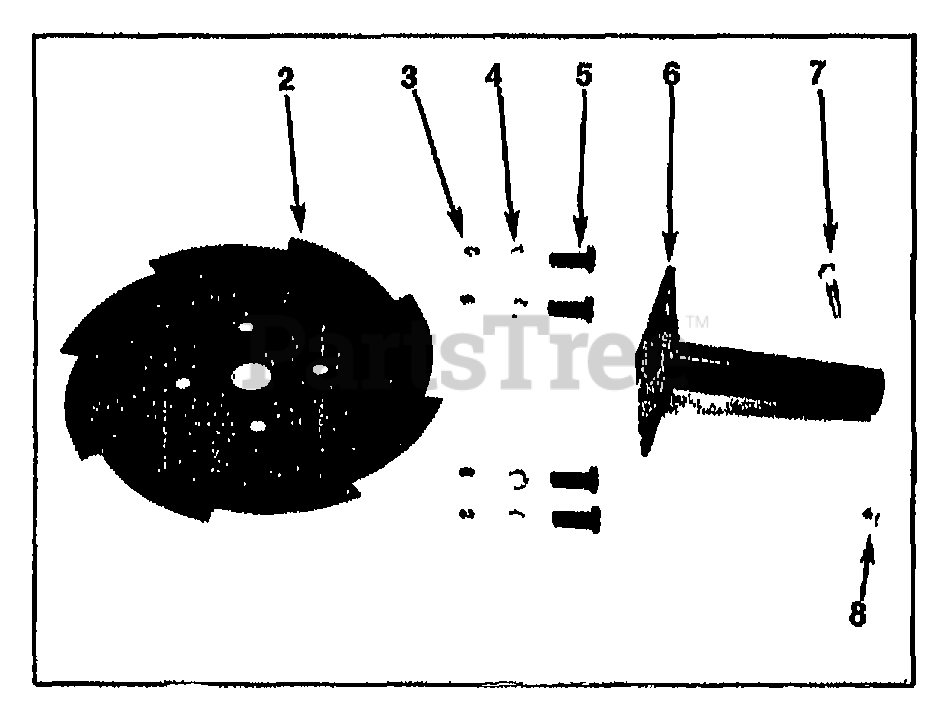

EDGER ATTACHMENT Parts Diagram

  • Title

MTD 10081

EDGER-CULT (INCL. ALL PARTS LISTED BELOW)

$

$

Not available

2

Troy-Bilt 60132

BLADE-EDGER 10"

$

$

Currently unavailable

3

Troy-Bilt 1186231

NUT-HEX 3/8-16
(Superseded to 912-3017)

$4.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 1100243

WASHER-LK .375
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

5

Troy-Bilt 1100046

SCR-HH 3/8-16X1.0 G5 (USED TO ATTACH EDGER BLADE TO EDGER TUBE)
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 60141

HOLDER-EDGER PNT

$

$

Currently unavailable

7

MTD 9555

BOLT-HH 3/8-16X1.75 G8 (USED TO ATTACH EDGER TUBE TO TINE SHAFT)

$

$

Not available

8

Troy-Bilt 1110108

NUT-H/LK 3/8-16
(Superseded to 712-0375)

$4.49

$

In Stock, Qty 6

0
