5015 (2097352) - Allis-Chalmers Compact Tractor, Diesel Clutch - Input Shaft Group (3486I41) Parts Diagram

Compact Tractor, Diesel

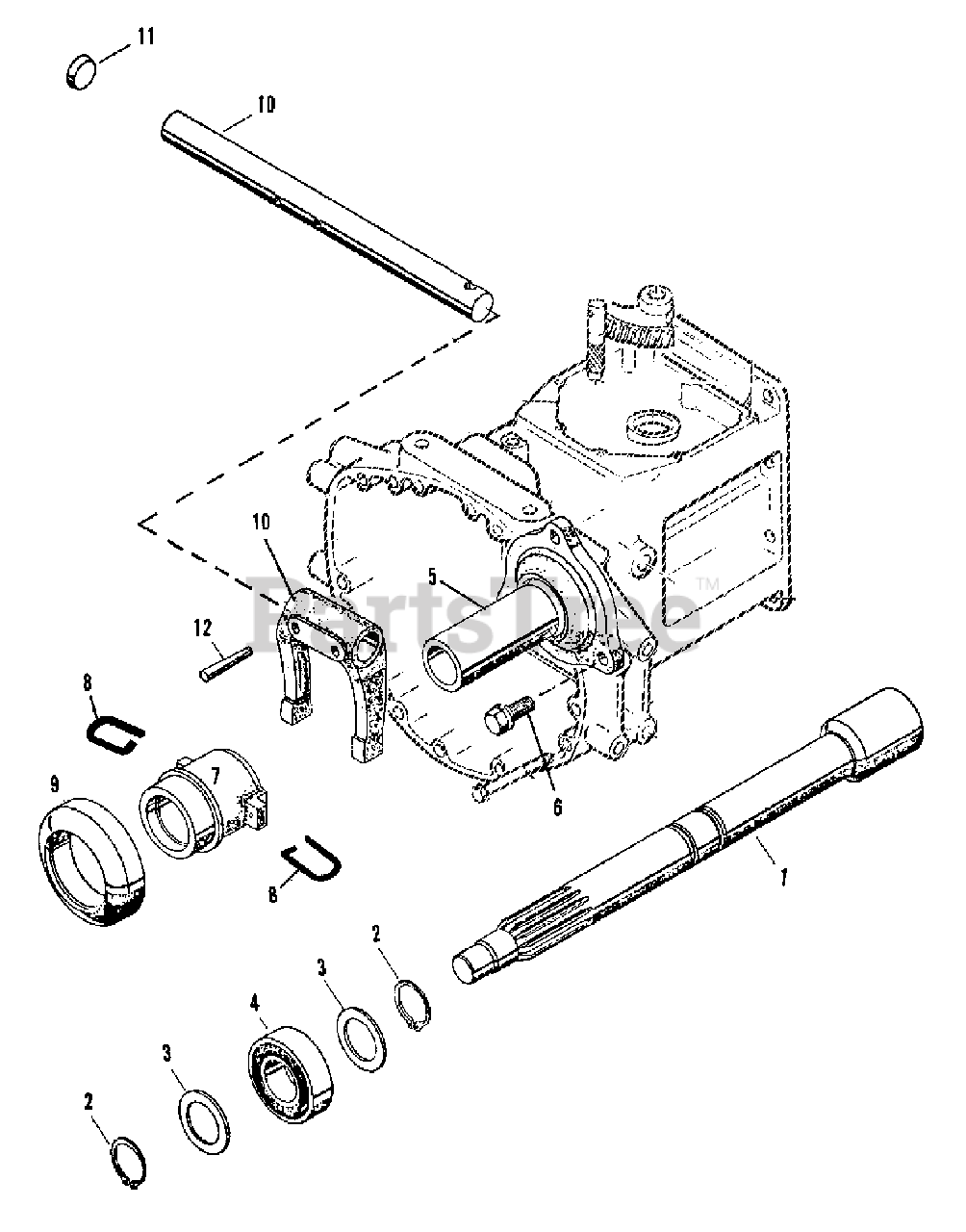

Clutch - Input Shaft Group (3486I41) Parts Diagram

  • Title

1

Simplicity 2098060

SHAFT, input

$

$

Not available

2

Simplicity 934008

RING, M25, snap, external

$

$

Not available

3

Simplicity 2097936

WASHER, THRUST

$

$

Not available

4

Simplicity 2098062

BEARING, ball (Seal type)

$

$

Not available

5

Simplicity 2098052

GUIDE, release bearing

$

$

Not available

6

Simplicity 934078

CAPSCREW, M8 x 22, w/lockwasher

$

$

Not available

7

Simplicity 2098053

SLEEVE, release bearing

$

$

Not available

8

Simplicity 2098055

SPRING, return

$

$

Not available

9

Simplicity 2098054

BEARING, release - clutch

$

$

Not available

10

Simplicity 2098058

SHIFTER ASSEMBLY, (Incl. Item 10 & 11)

$

$

Not available

11

Simplicity 2098056

PLUG

$

$

Not available

12

Simplicity 2098057

PIN, tapered

$

$

Not available
