50147 - Gravely 50" Deck for Pro-Walk Mower MOWER DRIVE Parts Diagram

50" Deck for Pro-Walk Mower

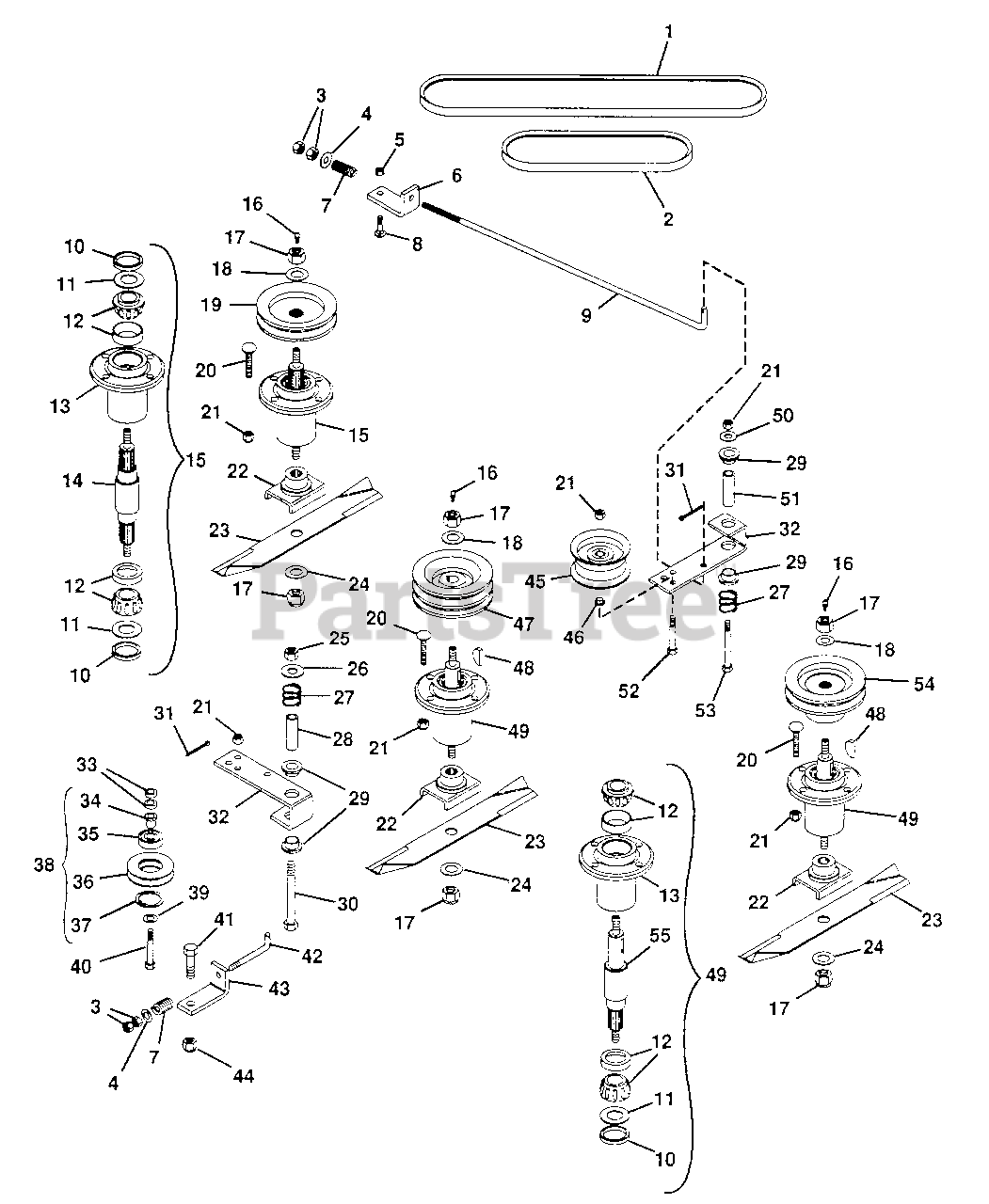

MOWER DRIVE Parts Diagram

  • Title

1

Gravely 038745

Belt, Pro Mower
(Superseded to 07220300)

$62.99

$

Usually ships in 4-12 days

0

2

Gravely 034944

Belt, Mower A44
(Superseded to 07220000)

$28.99

$

In Stock, only 1 left!

0

3

Gravely 120377

Nut, Hex 3/8-16
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 120394

Washer, Flat .406x.812x.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 419455

Nut, Lock 5/16-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 034287

Bracket, Belt Tensioner
(Superseded to 08802700)

$

$

Not available

7

Gravely 011779

Spring, Comp. 1x.78x338 Lb/N
(Superseded to 08327000)

$15.99

$

In Stock, only 2 left!

0

8

Gravely 126358

Bolt, Carriage 5/16-18x1.00
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 031913

Rod, Idler
(Superseded to 08654100)

$63.99

$

Usually ships in 4-12 days

0

10

Gravely 021211

Seal, Steel(Left & Center Spindles)
(Superseded to 08722600)

Note: (Left & Center Spindles)

$15.99

$

Usually ships in 4-12 days

0

10

Gravely 021211

Seal, Steel(Right Spindle)
(Superseded to 08722600)

Note: (Right Spindle)

$15.99

$

Usually ships in 4-12 days

0

11

Gravely 020743

Washer, Flat .975x1.970x.030(Left & Center Spindles)
(Superseded to 06426900)

Note: (Left & Center Spindles)

$5.99

$

In Stock, Qty 9

0

11

Gravely 020743

Washer, Flat .975x1.970x.030(Right Spindle)
(Superseded to 06426900)

Note: (Right Spindle)

$5.99

$

In Stock, Qty 9

0

12

Gravely 038199

Assembly, Bearing
(Superseded to 21245800)

$25.99

$

In Stock, Qty 20+

0

13

Gravely 021215

Housing, Bearing
(Superseded to 08722700)

$134.99

$

Usually ships in 4-12 days

0

14

Gravely 021216

Shaft, Spindle
(Superseded to 58802800)

$85.99

$

In Stock, only 1 left!

0

15

Gravely 021306

Assembly, Spindle
(Superseded to 58803600)

$262.99

$

In Stock, only 1 left!

0

16

Gravely 411010

Fitting, Lube 1/8
(Superseded to 07012500)

$3.99

$

In Stock, only 2 left!

0

17

Gravely 418692

Nut, Lock 5/8-11
(Superseded to 06540700)

$3.99

$

In Stock, only 2 left!

0

18

Gravely 033845

Washer, Flat .687x1.312x.122
(Superseded to 06427400)

$2.49

$

In Stock, only 2 left!

0

19

Gravely 043366

Sheave, Spindle
(Superseded to 08896000)

$

$

Not available

20

Gravely 126406

Bolt 3/8-16x1.37 Rd Hd Sq Nk
(Superseded to 06200416)

$3.99

$

In Stock, only 2 left!

0

21

Gravely 456004

Nut, Lock 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

22

Gravely 023026

Weldment, Blade Cradle
(Superseded to 08798300)

$155.99

$

Usually ships in 4-12 days

0

23

Gravely 011234

Blade
(Superseded to 08861600)

$23.99

$

In Stock, Qty 20+

0

24

Gravely 131016

Washer, Flat .656x1.312x.095
(Superseded to 06401118)

$2.49

$

Usually ships in 4-12 days

0

25

Gravely 414074

Nut, Lock 1/2-13
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

26

Gravely 415543

Washer, Flat .531x1.250x.100
(Superseded to 06441000)

$2.99

$

In Stock, Qty 6

0

27

Gravely 020444

Spring, Comp. 1x.80x36 Lb/N
(Superseded to 08329100)

$13.99

$

In Stock, only 1 left!

0

28

Gravely 034119

Bushing, St. .560x.750x2.44 Stl.
(Superseded to 08820500)

$17.99

$

In Stock, only 1 left!

0

29

Gravely 010174

Bushing, Nylon .76x1x.6 Flg.
(Superseded to 05518400)

$4.99

$

In Stock, Qty 20+

0

30

Gravely 180192

Bolt, Hex 1/2-13x3.50
(Superseded to 05901937)

$4.99

$

In Stock, only 2 left!

0

31

Gravely 121222

Pin, Cotter .09x.75
(Superseded to 06706900)

$0.99

$

In Stock, Qty 8

0

32

Gravely 034120

Arm, Idler Pivot
(Superseded to 08905900)

$82.99

$

Usually ships in 4-12 days

0

33

Gravely 014672

Bushing, St. .406x.750x.188 Stl.
(Superseded to 03488200)

$5.99

$

In Stock, Qty 6

0

34

Gravely 038897

Bushing, Flange Steel
(Superseded to 05521500)

$21.99

$

Usually ships in 4-12 days

0

35

Gravely 038898

Bearing, Ball
(Superseded to 05425100)

$

$

Not available

36

Gravely 038896

Sheave, Idler
(Superseded to 08744300)

$129.99

$

Usually ships in 4-12 days

0

37

Gravely 018960

Ring, Retaining
(Superseded to 05713100)

$3.99

$

Usually ships in 4-12 days

0

38

Gravely 038900

Assembly, Idler Sheave
(Superseded to 08930300)

$242.99

$

Usually ships in 4-12 days

0

39

Gravely 446470

Washer, Flat .375x1.125x.065
(Superseded to 06401139)

$2.49

$

In Stock, only 2 left!

0

40

Gravely 180130

Bolt, Hex 3/8-16x2.00
(Superseded to 05901718)

$2.99

$

In Stock, Qty 6

0

41

Gravely 180175

Bolt, Hex 1/2-13x1.25
(Superseded to 05901637)

$3.49

$

In Stock, only 1 left!

0

42

Gravely 038714

Rod, Idler
(Superseded to 08876000)

$

$

Not available

43

Gravely 038713

Bracket, Belt Tensioner
(Superseded to 08928800)

$

$

Not available

44

Gravely 435507

Nut, Lock 1/2-13
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

45

Gravely 034286

Pulley, Idler
(Superseded to 07327800)

$87.99

$

In Stock, only 2 left!

0

46

Gravely 024815

Bushing, Flange Bronze
(Superseded to 05515800)

$9.49

$

In Stock, only 4 left!

0

47

Gravely 034935

Sheave, Spindle
(Superseded to 08804300)

$

$

Not available

48

Gravely 124553

Key, Woodruff .250x1 Hard #15
(Superseded to 06608900)

$3.99

$

In Stock, Qty 18

0

49

Gravely 034605

Assembly, Spindle
(Superseded to 58803600)

$262.99

$

In Stock, only 1 left!

0

50

Gravely 120388

Washer, Flat .438x1.000x.083
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

51

Gravely 034938

Bushing, St. .437x.750x2.44 Stl.
(Superseded to 08818500)

$34.99

$

Usually ships in 4-12 days

0

52

Gravely 180132

Bolt, Hex 3/8-16x2.25
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

53

Gravely 189304

Bolt, Hex 3/8-16x3.25
(Superseded to 05901817)

$3.99

$

In Stock, Qty 20+

0

54

Gravely 034936

Sheave, Spindle
(Superseded to 08804400)

$387.99

$

Usually ships in 4-12 days

0

55

Gravely 034603

Shaft, Spindle
(Superseded to 58802900)

$125.99

$

Usually ships in 4-12 days

0
