50146 - Gravely 40" Deck for Pro-Walk Mower MOWER FRAME Parts Diagram

40" Deck for Pro-Walk Mower

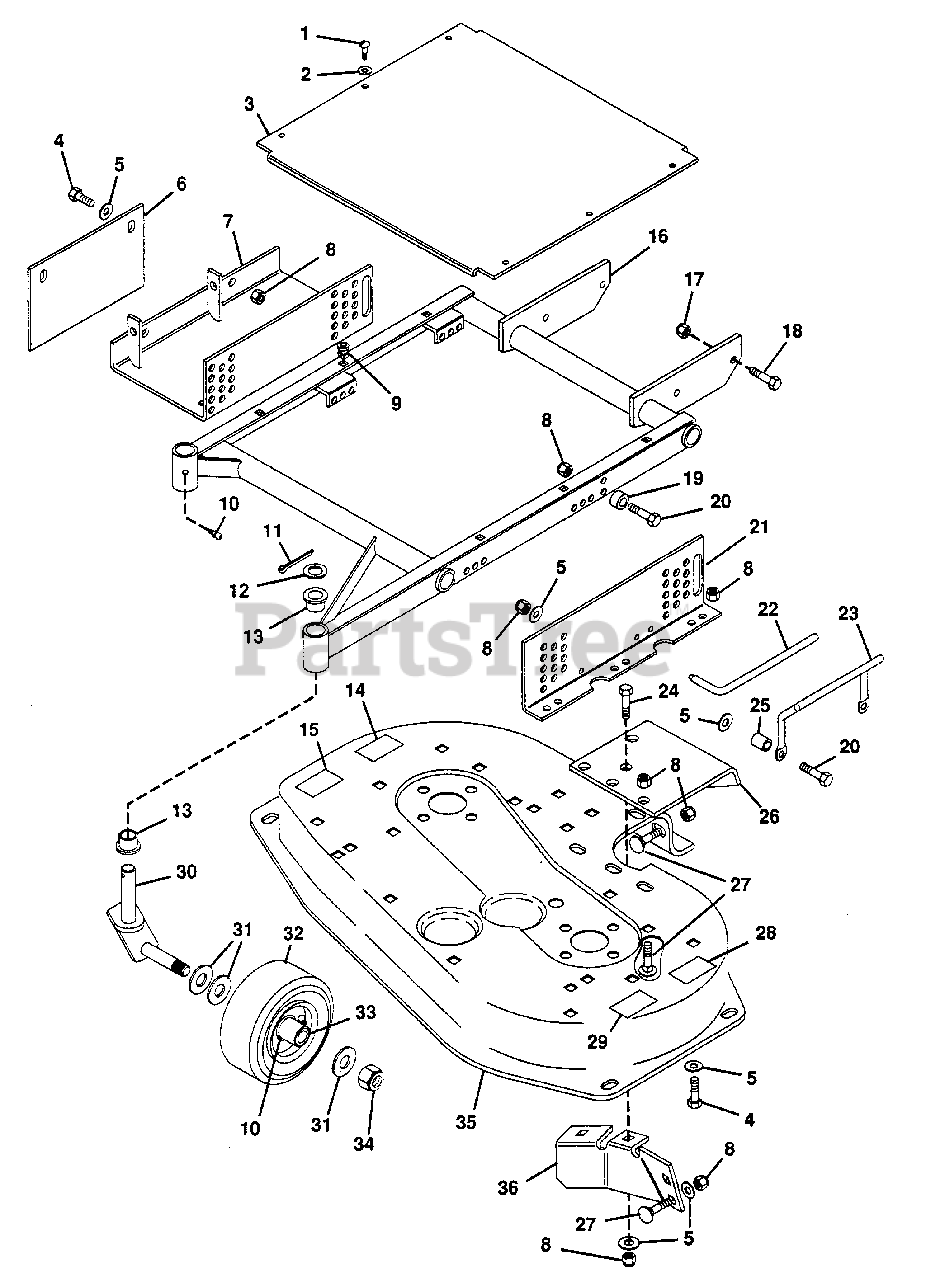

MOWER FRAME Parts Diagram

  • Title

1

Gravely 045207

Screw, 1/4-20x.50 Self Tapping
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

2

Gravely 120392

Washer, Flat .281x.625x.065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 045016

Cover, Silkscreen 40" Mower
(Superseded to 08826400)

$

$

Not available

4

Gravely 180122

Bolt, Hex 3/8-16x1.00
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 120394

Washer, Flat .406x.812x.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 035029

Plate, Discharge Cover
(Superseded to 08805600)

$

$

Not available

7

Gravely 049748

Weldment, Mower Support Brkt.
(Superseded to 08837600)

$

$

Not available

8

Gravely 456004

Nut, Lock 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

9

Gravely 011777

Grommet, Plastic
(Superseded to 07538100)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 411027

Fitting, Lube 1/4-28
(Superseded to 07012600)

$

$

Not available

11

Gravely 103409

Pin, Cotter .187x1.50
(Superseded to 06712800)

$1.99

$

In Stock, only 2 left!

0

12

Gravely 019340

Race, Bearing Thrust
(Superseded to 06435300)

$4.99

$

Usually ships in 4-12 days

0

13

Gravely 018355

Bushing, Flange Nylon
(Superseded to 05520100)

$11.99

$

In Stock, Qty 12

0

14

Gravely 035127

Decal, Caution
(Superseded to 07893700)

$17.99

$

Usually ships in 4-12 days

0

15

Gravely 033927

Decal, Danger Foot
(Superseded to 05350100)

$

$

Not available

16

Gravely 050108

Weldment, Mower Frame
(Superseded to 08839100)

$131.99

$

Usually ships in 4-12 days

0

17

Gravely 418692

Nut, Lock 5/8-11
(Superseded to 06540700)

$3.99

$

In Stock, only 2 left!

0

18

Gravely 271547

Bolt, Hex 5/8-11x1.50
(Superseded to 05968700)

$3.99

$

In Stock, only 3 left!

0

19

Gravely 050396

Bushing, St. .391x.621x.676 Stl.
(Superseded to 08814100)

$7.49

$

Usually ships in 4-12 days

0

20

Gravely 180126

Bolt, Hex 3/8-16x1.50
(Superseded to 05901928)

$1.49

$

In Stock, Qty 15

0

21

Gravely 049342

Bracket, Mower Side Support R.H.
(Superseded to 08836100)

$122.99

$

Usually ships in 4-12 days

0

22

Gravely 038514

Pin, Mower Locking
(Superseded to 08875900)

$18.99

$

Usually ships in 4-12 days

0

23

Gravely 044507

Handle
(Superseded to 08878000)

$59.99

$

In Stock, only 1 left!

0

24

Gravely 180124

Bolt, Hex 3/8-16x1.25
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 043922

Bushing
(Superseded to 08553700)

$5.99

$

In Stock, only 1 left!

0

26

Gravely 025123

Shield, Discharge
(Superseded to 08802200)

$28.99

$

Usually ships in 4-12 days

0

27

Gravely 120915

Bolt, 3/8-16x1.00 Rd Hd Sq Nk

$

$

Not available

28

Gravely 033928

Decal, Warning Eye
(Superseded to 05350200)

$31.99

$

Usually ships in 4-12 days

0

29

Gravely 033926

Decal, Danger Hand
(Superseded to 05350300)

$31.99

$

Usually ships in 4-12 days

0

30

Gravely 044680

Weldment, Caster Fork
(Superseded to 08954653)

$221.99

$

Usually ships in 4-12 days

0

31

Gravely 131017

Washer,Flat .812x1.496x.134
(Superseded to 06426000)

$1.49

$

In Stock, Qty 20+

0

32

Gravely 045205

Wheel, Gauge
(Superseded to 07130100)

$108.99

$

In Stock, only 4 left!

0

33

Gravely 037823

Bearing, Gauge Wheel
(Superseded to 05408900)

$18.99

$

In Stock, only 3 left!

0

34

Gravely 456007

Nut, Lock 3/4-10
(Superseded to 06540800)

$5.99

$

In Stock, Qty 6

0

35

Gravely 034854

Deck, 40" Mower
(Superseded to 08803800)

$

$

Not available

36

Gravely 025122

Shroud, Blade
(Superseded to 08802100)

$66.99

$

Usually ships in 4-12 days

0

Gravely 043003

Decal, Gravely Logo
(Superseded to 05210700)

$

$

Not available

Gravely 044530

Decal, Pro-40
(Superseded to 05212300)

$

$

Not available
