50127 - Troy-Bilt Junior I Rear-Tine Tiller (SN: M1274 - M8203) HOOD & DEPTH REGULATOR Parts Diagram

Junior I Rear-Tine Tiller

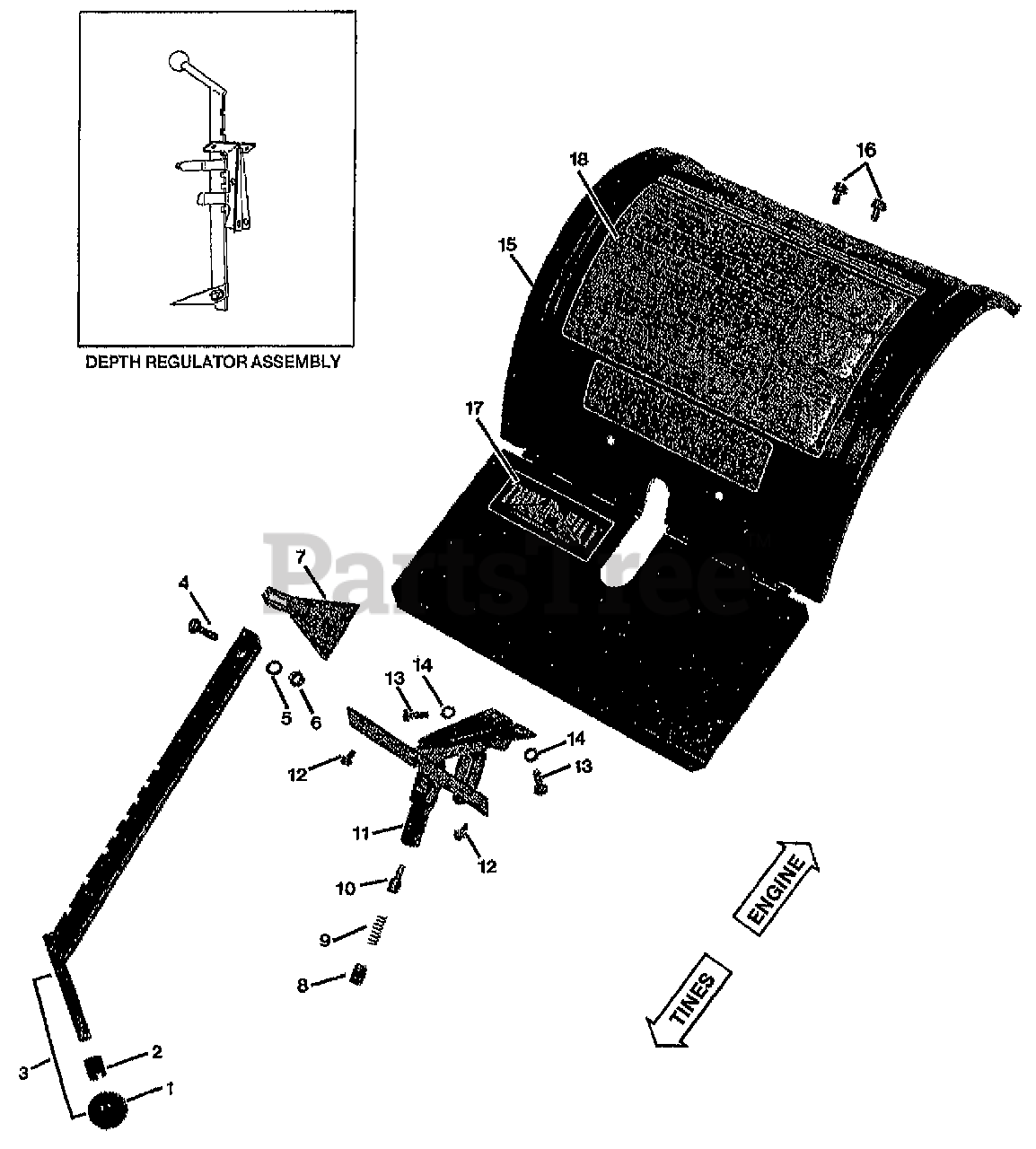

HOOD & DEPTH REGULATOR Parts Diagram

  • Title

1

Troy-Bilt 9119

KNOB-CONTROL (INCLUDES RETAINING RING)
(Superseded to GW-9119)

$11.99

$

In Stock, only 1 left!

0

2

Troy-Bilt 9120

RING-TOLERANCE .5325 ID
(Superseded to GW-9120)

$6.99

$

In Stock, only 1 left!

0

3

Troy-Bilt 50119

REGULATOR-DEPTH W/KNOB

$

$

Currently unavailable

4

Troy-Bilt 1100046

SCR-HH 3/8-16X1.0 G5 ZP
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 1100243

WASHER-LK .375 @ DEPL
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 1186231

NUT-HEX 3/8-16 ZP
(Superseded to 912-3017)

$4.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 50058

SHOE-DEPTH REGULATOR

$

$

Currently unavailable

8

Troy-Bilt 9726

PLUG-PIPE 1/4 NPT
(Superseded to 1105620)

$4.49

$

In Stock, only 4 left!

0

9

Troy-Bilt 1120

SPRING .406 X 1.25

$

$

Currently unavailable

10

Troy-Bilt 1119

PLUNGER

$

$

Currently unavailable

11

Troy-Bilt 50120

ASSM-REAR HOOD BRKT (INCLUDES ROLL PIN)

$

$

Currently unavailable

12

Troy-Bilt 9552

SCR-HWH 1/4-20 X .5 STH
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0

13

Troy-Bilt 1100044

SCR-HHC 5/16-18X.75 GR 5 ZP
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

14

Troy-Bilt 1100242

WASHER-LK .312 ZP
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 50182

ASSM-HOOD W/DECALS

$

$

Currently unavailable

16

Troy-Bilt 9553

SCR-HWH 5/16-18 X .5 STH
(Superseded to 710-0607)

$6.99

$

In Stock, Qty 11

0

17

Troy-Bilt 50098

DECAL-TB JR LOGO

$

$

Currently unavailable

18

Troy-Bilt 50193

DECAL-OPER INST

$

$

Currently unavailable
