50126 - Troy-Bilt Junior I Rear-Tine Tiller (SN: M1274 - M8203) WHEEL & TILLER SHAFT ASSEMBLIES Parts Diagram

Junior I Rear-Tine Tiller

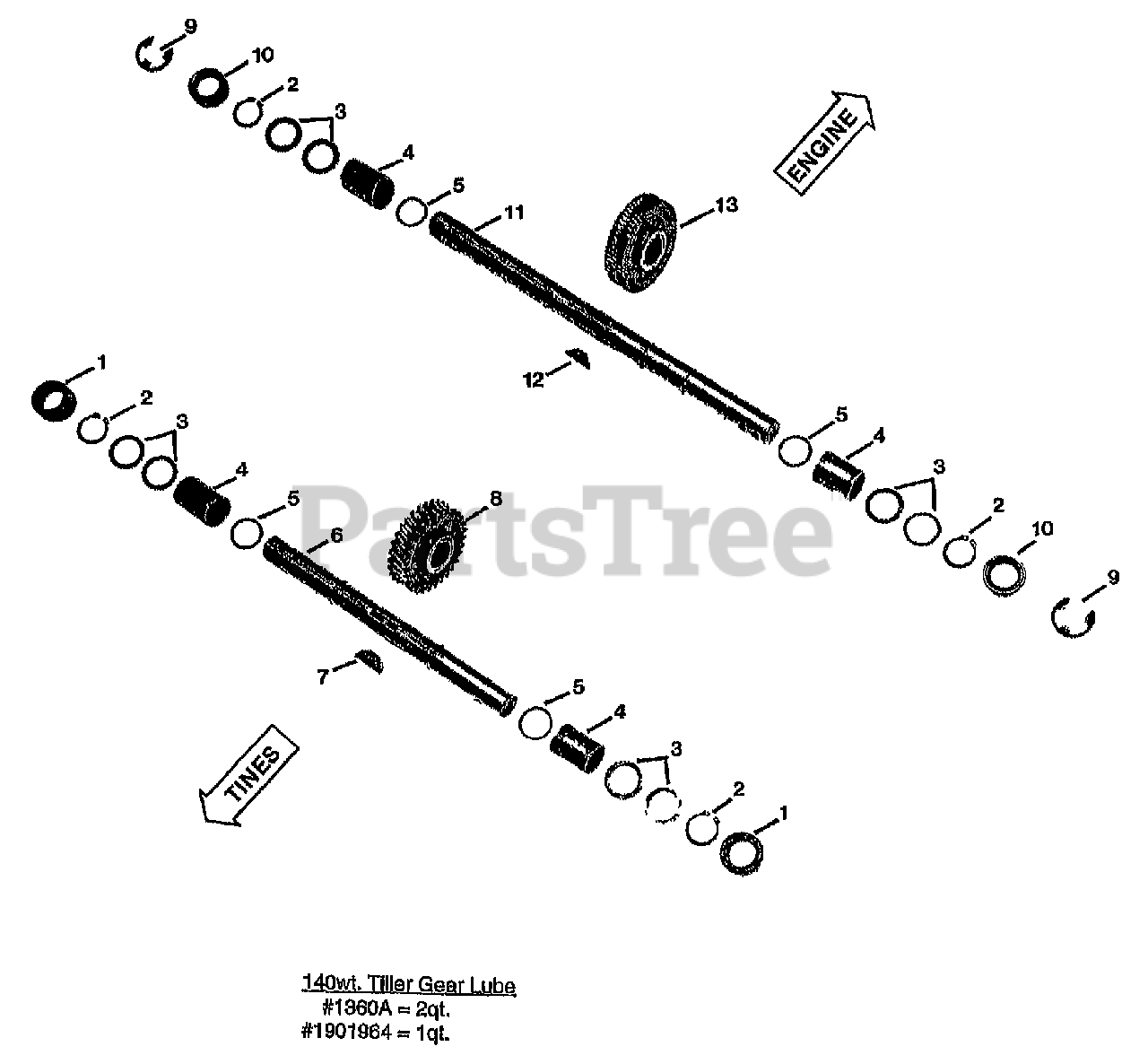

WHEEL & TILLER SHAFT ASSEMBLIES Parts Diagram

  • Title

1

Troy-Bilt 9613

SEAL-OIL TRIPLE LIP (Tiller shaft, LT & RT Sides)

$

$

Currently unavailable

2

Troy-Bilt 9511

RING-HEAVY EXT .906 ID (Tiller and Wheel Shafts)
(Superseded to 716-04104)

$4.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 1166-1

SHIM-1.375X1.015X.062
(Superseded to 736-04309)

$4.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 1166-2

SHIM-1.375X1.015X.03
(Superseded to 736-04260)

$6.99

$

In Stock, only 2 left!

0

3

Troy-Bilt 1166-3

SHIM-1.375X1.015X.015
(Superseded to 736-04259)

$6.99

$

In Stock, Qty 5

0

3

Troy-Bilt 1166-4

SHIM-1.375X1.015X.01
(Superseded to 736-04258)

$3.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 1086

BUSHING-1.25X1.005X1.5 bronze, (Tiller and Wheel Shafts, LT & RT sides)
(Superseded to 941-04300)

$16.99

$

In Stock, Qty 6

0

5

Troy-Bilt 1132-2

SHIM-1.234X1.015X.062 (Tiller and Wheel Shafts)
(Superseded to 736-04310)

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 50104

TILLER SHAFT-W/KEY (Inc. 6)

$

$

Currently unavailable

7

Troy-Bilt 1104

KEY-WOODRUFF .25X1.12 (Tiller shaft to worm gear)
(Superseded to GW-1104)

$9.49

$

In Stock, Qty 20+

0

8

MTD 50042

GEAR-WORM BRONZE MACH (Tiller Drive)

$

$

Not available

9

Troy-Bilt 9512

RING-RETAINING 5133-989 (E-type retaining, external, LT & RT sides)
(Superseded to GW-9512)

$3.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 9609

SEAL-OIL WHEELSHAFT (LT & RT sides)

$

$

Currently unavailable

11

Troy-Bilt 50105

WHEELSHAFT-W/KEY (Inc. 12)

$

$

Currently unavailable

12

Troy-Bilt 9305

KEY-HI PRO .25X1.062 (Wheel shaft to worm gear)
(Superseded to 714-04059)

$6.99

$

In Stock, Qty 8

0

13

Troy-Bilt 50041

GEAR-WORM 61 TEETH MACH bronze, (Wheel drive)

$

$

Currently unavailable

Troy-Bilt 1360A

OIL (1901964) 2 QT 140WT

$

$

Currently unavailable

Troy-Bilt 1901964

OIL-GEAR 1 QT 140WT

$

$

Currently unavailable
