50126 - Troy-Bilt Junior I Rear-Tine Tiller (SN: M1274 - M8203) TRANSMISSION HSG. & SEALS/GASKETS Parts Diagram

Junior I Rear-Tine Tiller

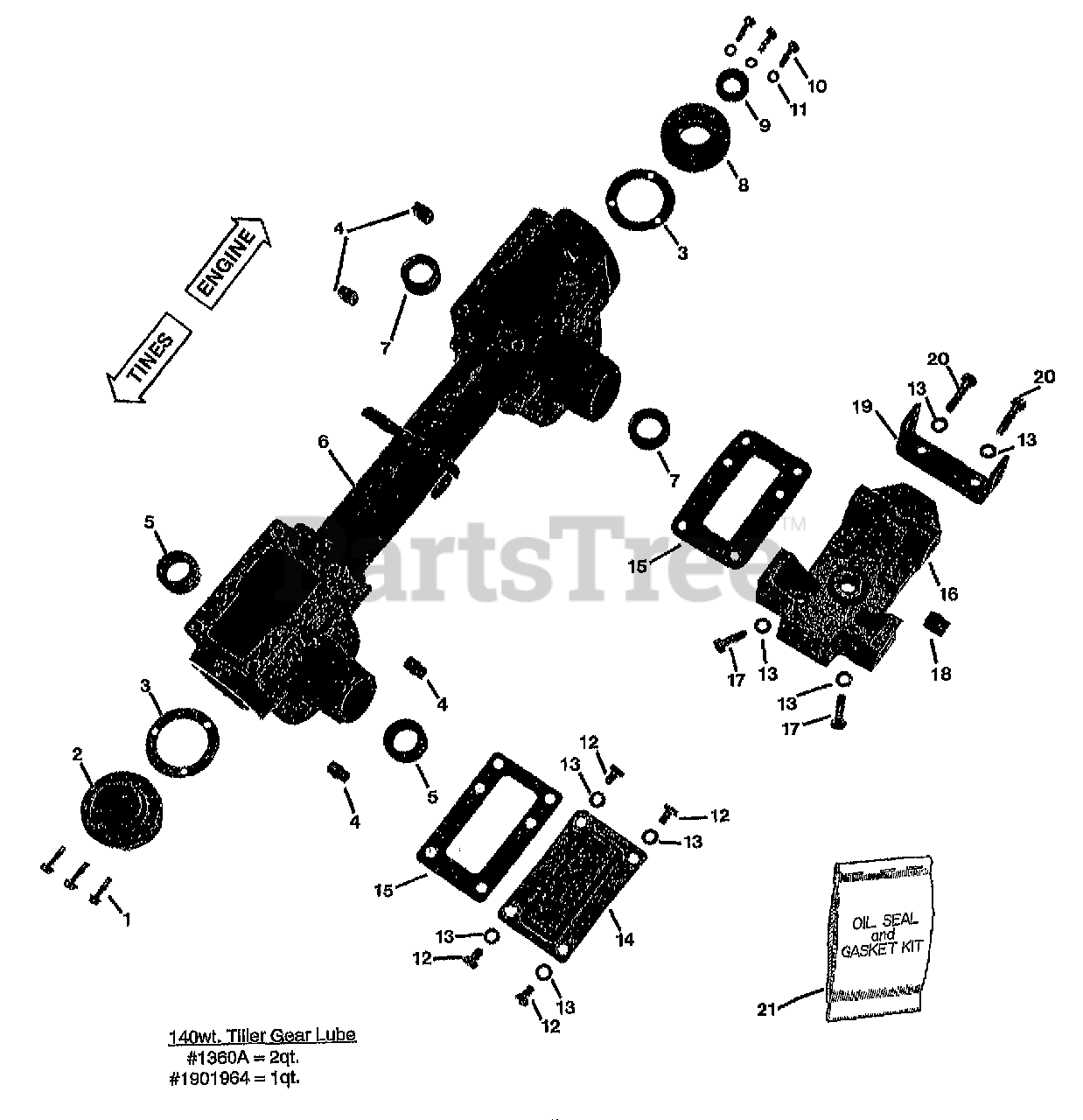

TRANSMISSION HSG. & SEALS/GASKETS Parts Diagram

  • Title

1

Troy-Bilt 9773

SCR-HFLK 1/2-20X.875 (Rear bearing cap mounting)

$

$

Currently unavailable

2

Troy-Bilt 1115

CAP-REAR #1115 (Rear Bearing)

$

$

Currently unavailable

3

Troy-Bilt 1124-2

GASKET-BRG COVER (Front and rear bearing caps 0.010" thick)
(Superseded to GW-1124-2099)

$4.99

$

In Stock, Qty 18

0

4

Troy-Bilt 9726

PLUG-PIPE 1/4 NPT (Gear oil level check and gear oil drain holes, front & rear)
(Superseded to 1105620)

$4.49

$

In Stock, only 3 left!

0

5

Troy-Bilt 9613

SEAL-OIL TRIPLE LIP (Tiller shaft, LT & RT side)

$

$

Currently unavailable

6

Troy-Bilt 50078

ASSM-TRANS A UNIT (W/O covers, shaft, gears, seals, etc.)

$

$

Currently unavailable

7

Troy-Bilt 9609

SEAL-OIL WHEEL SHAFT (Lt & Rt sides)

$

$

Currently unavailable

8

Troy-Bilt 1114

CAP (Front Bearing)

$

$

Currently unavailable

9

Troy-Bilt 9600

SEAL-PINION SHAFT PT/85030/00 (Main Drive shaft, front)

$

$

Currently unavailable

10

Troy-Bilt 9701

SCR-HH 1/4-20X.75 G5 ZP (Front bearing cap mounting)

$

$

Currently unavailable

11

Troy-Bilt 9910

WASHER-LK .25 ZP

$

$

Currently unavailable

12

Troy-Bilt 9550

SCR-HH 5/16-18X.5 GD5 YEL (Tiller housing cover to case)

$

$

Currently unavailable

13

Troy-Bilt 9912

WASHER-LK .312 ZP (Used in both covers)

$

$

Currently unavailable

14

Troy-Bilt 50074

CVR-TRANS REAR PNT (Tiller Housing)
(Superseded to 1916109001)

$

$

Not available

15

Troy-Bilt 50032

GASKET-GEAR HSG (Transmission covers, front & rear)
(Superseded to 921-04229)

$6.99

$

In Stock, Qty 20+

0

16

Troy-Bilt 50031

COVER-TRANS MACH (Front Transmission)

$

$

Currently unavailable

17

Troy-Bilt 9704

SCR-HH 5/16-18X1.0 G5 ZP (Front Transmission to cover)

$

$

Currently unavailable

18

Troy-Bilt 9727

PLUG-PIPE 3/8 NPT (Gear oil fill hole)
(Superseded to 737-04202)

$6.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt 50051

BRKT-HANDLEBAR PIVOT (Handlebar attachment)

$

$

Currently unavailable

20

Troy-Bilt 9705

SCR-HH 5/16-18X1.25 G5 (Handlebar attachment)

$

$

Currently unavailable

21

Troy-Bilt 1898

SEAL & GASKET SET-JR (Inc. 2 #3, 2 #15, 2 #5, 1 #9)

$

$

Currently unavailable

Troy-Bilt 1360A

OIL (1901964) 2 QT 140WT

$

$

Currently unavailable

Troy-Bilt 1901964

OIL-GEAR 1 QT 140WT

$

$

Currently unavailable
