50126 - Troy-Bilt Junior I Rear-Tine Tiller (SN: M1274 - M8203) ENGINE, BELT & CARB GUARD Parts Diagram

Junior I Rear-Tine Tiller

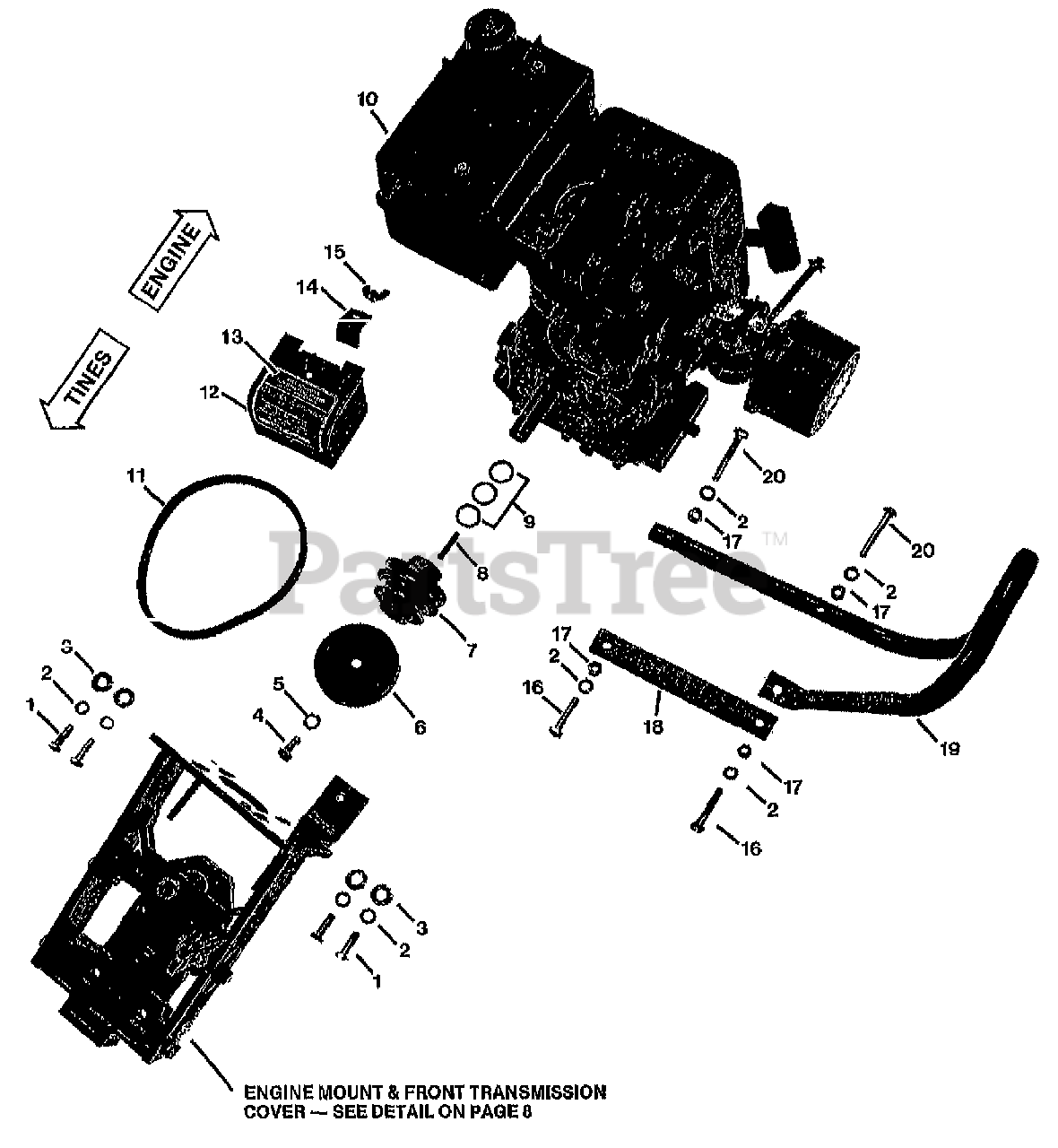

ENGINE, BELT & CARB GUARD Parts Diagram

  • Title
1

Troy-Bilt 9707

SCR 5/16-24 X 1

$

$

Currently unavailable

2

Troy-Bilt 9912

WASHER-LK .312 ZP

$

$

Currently unavailable

3

MTD 9901

WASHER-.88X312X.08 ZP

$

$

Not available

4

Troy-Bilt 9797

BOLT-HH 3/8-24 X .75 ZP

$

$

Currently unavailable

5

Troy-Bilt 9913

WASHER-LK .375 @ DEPL

$

$

Currently unavailable

6

Troy-Bilt 50024

DISC-REV

$

$

Currently unavailable

7

Troy-Bilt 50022

PULLEY-ENG MACH

$

$

Currently unavailable

8

Troy-Bilt 9302

KEY-.188 SQ X 1.25

$

$

Currently unavailable

9

Troy-Bilt 1138-1

SHIM-1.0X.7656X.062
(Superseded to 736-04187)

$4.99

$

In Stock, Qty 20+

0

10

0

ENGINE - TECUMSEH

Note: INDIVIDUAL ENGINE PARTS FOR YOUR TILLER'S ENGINE ARE NOT LISTED IN THIS CATALOG. ENGINE PARTS ARE AVAILABLE FROM YOU LOCAL TECUMSEH ENGINE SERVICE OUTLET (LOOK IN THE YELLOW PAGES UNDER "ENGINES-GASOLINE."

$

$

Not available

10

0

ENGINE - STANDARD RECOIL START

Note: IF YOU CANNOT OBTAIN ENGINE PARTS LOCALLY, PLEASE CONTACT THE OWNER SERVICE DEPARTMENT HERE AT THE TILLER FACTORY. YOUR ENGINE IS COVERED BY THE ENGINE MANUFACTURER'S LIMITED WARRANTY FOR ONE FULL YEAR

$

$

Not available

10

0

ENGINE - 3.5 HP, MODEL H35,

Note: AFTER THE DATE YOU RECEIVED YOUR TILLER. DURING THIS TIME, ANY REPAIR WORK SHOULD BE PERFORMED BY THE ENGINE REPAIR DEALER WHO IS AUTHORIZED BY THE MANUFACTURER TO REPAIR YOUR MAKE OF ENGINE.

$

$

Not available

10

0

ENGINE - TYPE 45564N

Note: FOR FURTHER DETAILS ON THE ENGINE MANUFACTURER'S LIMITED WARRANTY, PLEASE SEE THE ENGINE OWNER'S MANUAL THAT CAME WITH YOUR TILLER.

$

$

Not available

11

$

$

Currently unavailable

12

Troy-Bilt 50122

BELT SHROUD W/DECAL

$

$

Currently unavailable

13

Troy-Bilt 50082

DECAL-BELT COVER

$

$

Currently unavailable

14

$

$

Currently unavailable

15

Troy-Bilt 9822

NUT-WING/LK 1/4-20 ZP

$

$

Currently unavailable

16

Troy-Bilt 9759

SCR-HH 5/16-18X1.75

$

$

Currently unavailable

17

Troy-Bilt 9801

NUT-HEX 5/16-18 ZP

$

$

Currently unavailable

18

Troy-Bilt 50026

PAD-ENG JACKING

$

$

Currently unavailable

19

Troy-Bilt 50097

GUARD-CARBURETOR PNT

$

$

Currently unavailable

20

Troy-Bilt 9720

BOLT-HH 5/16-18X2 ZP

$

$

Currently unavailable
