5011 - Troy-Bilt Pony IV Rear-Tine Tiller (SN: S164133 - S860712) ENGINE, PULLEYS & BELTS Parts Diagram

Pony IV Rear-Tine Tiller

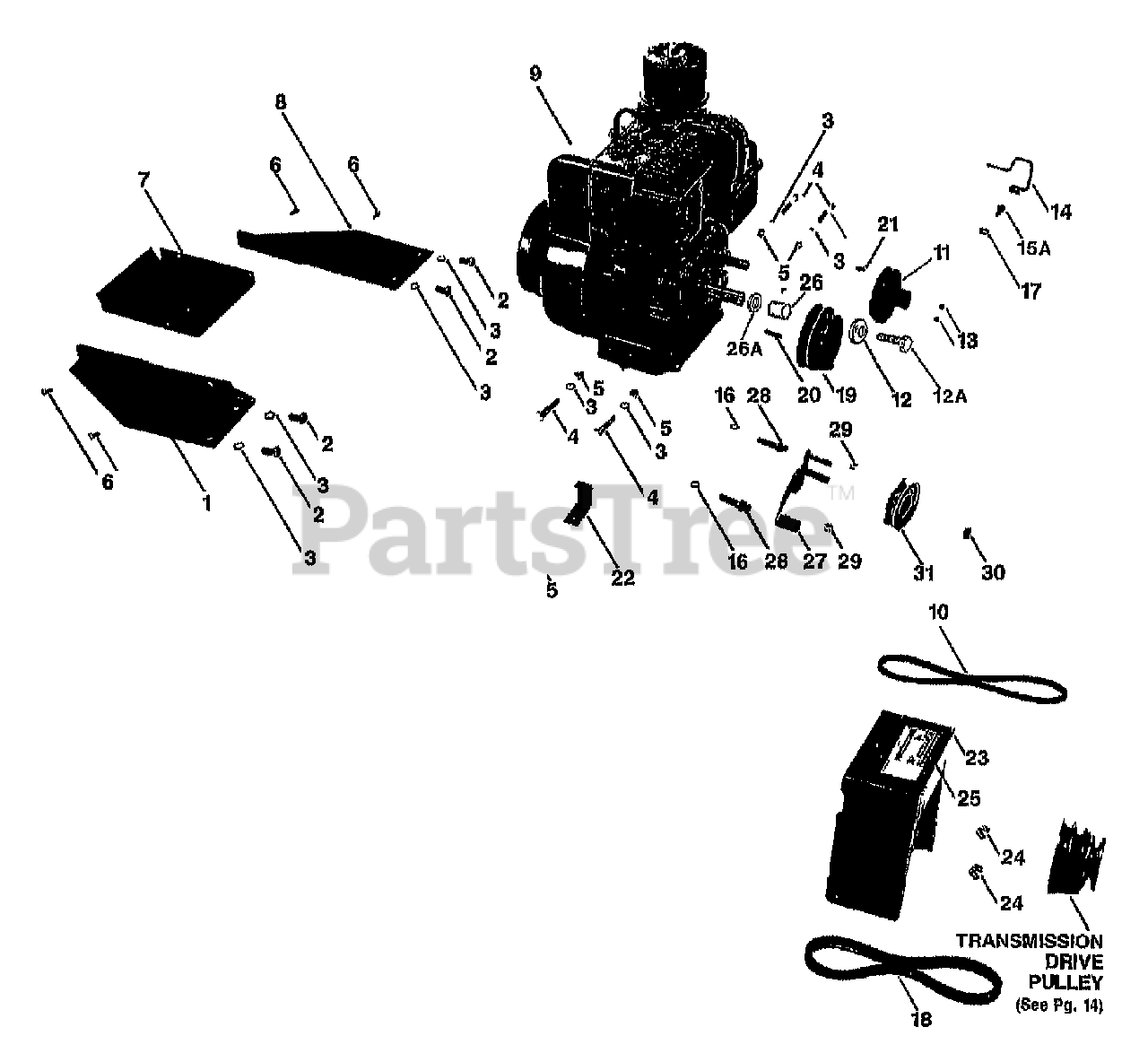

ENGINE, PULLEYS & BELTS Parts Diagram

  • Title

1

MTD 20754

BRKT-ENG LT P4

$

$

Not available

2

Troy-Bilt 9703

SCR-HHC 5/16-18X.75 GR 5

$

$

Currently unavailable

3

Troy-Bilt 9912

WASHER-LK .312

$

$

Currently unavailable

4

Troy-Bilt 9759

SCR-HH 5/16-18X1.75

$

$

Currently unavailable

5

Troy-Bilt 9801

NUT-HEX 5/16-18

$

$

Currently unavailable

6

Troy-Bilt 9768

SCR-HH SEMS 10-32 X .5 (SEMS - W/PERMANENT WASHER)

$

$

Currently unavailable

7

Troy-Bilt 20673

PAN-ENG BRKT PNT
(Superseded to 786-04080-0638)

$20.99

$

Usually ships in 3-6 days

0

8

MTD 20755

BRKT-ENG RT PNT

$

$

Not available

9

0

ENGINE, BRIGGS & STRATTON 5HP,

Note: STD. RECOIL W/MEGNETROL IGN., MODEL 130292, TYPE 1900-01

$

$

Not available

9

0

ENGINE, BRIGGS & STRATTON 5HP,

Note: ELEC. START W/MEGNETROL IGN., MODEL 130297, TYPE 1901-01

$

$

Not available

10

Troy-Bilt 9493

BELT-V (SEE V-BLET SET)

$

$

Currently unavailable

11

Troy-Bilt 20503

PULLEY-ENG MACH

$

$

Currently unavailable

12

Troy-Bilt 9944

WASHER-.827X.331X.098
(Superseded to 736-04193)

$6.99

$

In Stock, Qty 20+

0

12A

Troy-Bilt 9655

SCR-HH 5/16-24X.75 G5
(Superseded to 710-0157)

$4.49

$

In Stock, Qty 18

0

13

MTD 9561

SCR-SS 1/4-20 X .25

$

$

Not available

14

MTD 20555

GUIDE-BELT FWD

$

$

Not available

?15

Troy-Bilt 9552

SCR-HWH 1/4-20 X .5 STH
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0

15A

Troy-Bilt 9573

SCR-HWH 1/4-20 X .75 STH
(Superseded to 1754128)

$3.99

$

In Stock, only 2 left!

0

16

Troy-Bilt 9910

WASHER-LK .25

$

$

Currently unavailable

17

Troy-Bilt 9900

WASHER-FLAT 1/4 SAE

$

$

Currently unavailable

18

Troy-Bilt 20565

BELT-V GROOVE FWD SMFRAME (SEE V-BELT SET)

$

$

Currently unavailable

19

Troy-Bilt 20683

PULLEY-ENGINE MACH

$

$

Currently unavailable

20

Troy-Bilt 9301

KEY-.188 SQX1.0
(Superseded to GW-9301099)

$3.99

$

In Stock, Qty 20+

0

21

MTD 9361

KEY-WOODRUFF #5

$

$

Not available

22

Troy-Bilt 20658

GUIDE-BELT REV PNT

$

$

Currently unavailable

23

Troy-Bilt 20650

BELT SHROUD W/DECAL (INCL. 25)

$

$

Currently unavailable

24

Troy-Bilt 9824

NUT-WING/LK 5/16-18
(Superseded to GW-9824)

$5.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt 20649

DECAL-BELT POSITION

$

$

Currently unavailable

26

Troy-Bilt 9046

SPACER-.755X.937X1.375

$

$

Currently unavailable

26A

Troy-Bilt 1138-2

SHIM-1.0X.7656X.031 (AS REQUIRED)
(Superseded to 736-04192)

$6.99

$

In Stock, only 2 left!

0

Troy-Bilt 4922

KIT-BELT PONY III (INCL. #20565 FORWARD & #9493 REVERSE BELTS)

$

$

Currently unavailable

27

Troy-Bilt 20648

BRKT-IDLER WELD PNT

$

$

Currently unavailable

28

Troy-Bilt EB94067

STUD-5HP (BRIGGS & STRATTON PART)

$

$

Currently unavailable

29

Troy-Bilt 9811

NUT-LK 1/4-20

$

$

Currently unavailable

30

MTD 9807

NUT-H/LK 3/8-16
(Superseded to 690-239-0020)

$

$

Not available

31

Troy-Bilt 9017

IDLER-"V" GROOVE (INTERNAL BUSHING TYPE)

$

$

Currently unavailable
