5010 LTD (1690119) - Simplicity Broadmoor Lawn Tractor SEAT AND SEAT SUPPORT Parts Diagram

Broadmoor Lawn Tractor

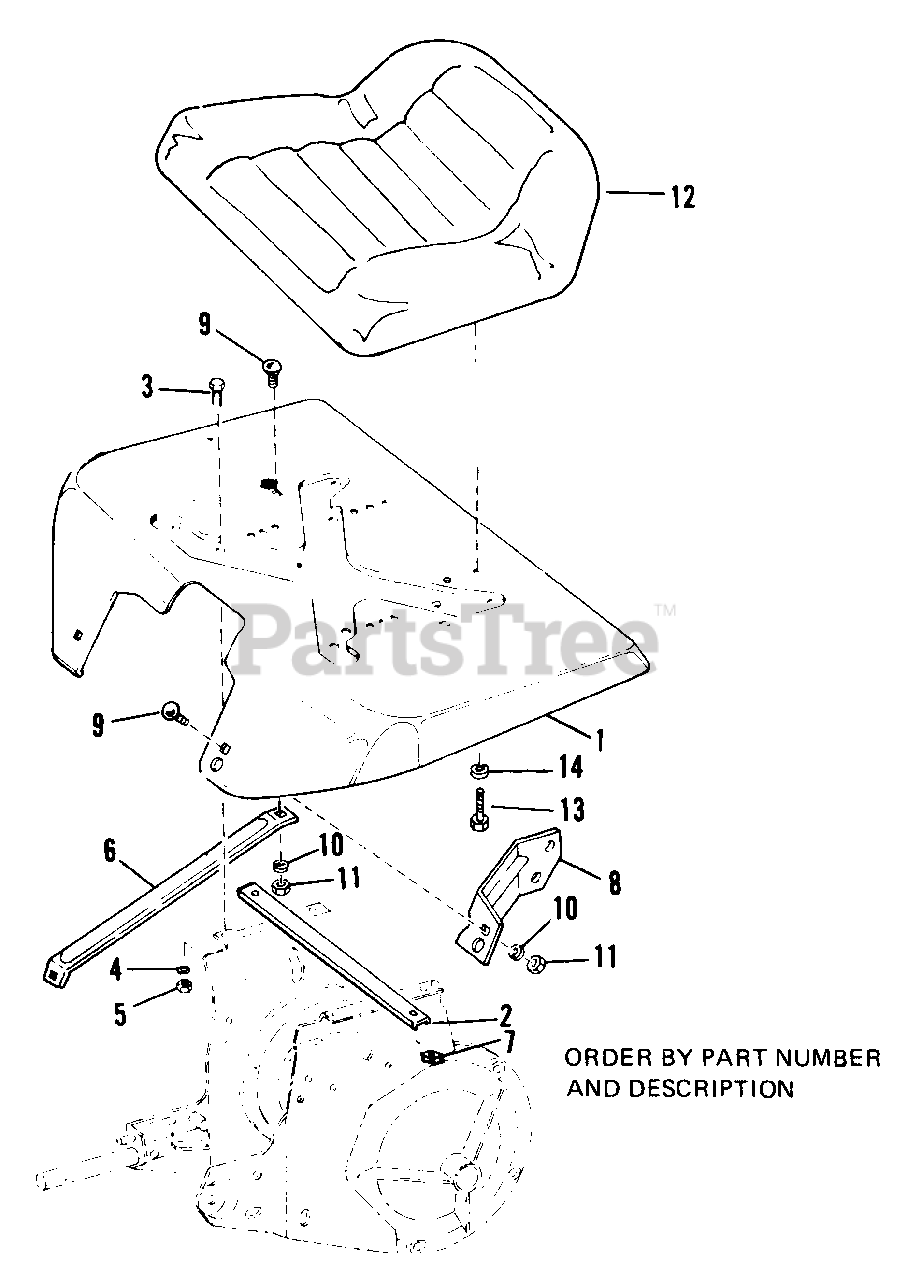

SEAT AND SEAT SUPPORT Parts Diagram

  • Title

1

Simplicity 1652348

Support, Seat

$

$

Not available

2

Simplicity 1651317

Spacer, Seat Support

$

$

Not available

3

Simplicity 2820243

Capscrew, Hex

$

$

Not available

4

Simplicity 1917356SM

Lockwasher, 5/16"
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

5

Simplicity 1917372SM

Nut, Hex, Full, 5/16"-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

6

Simplicity 1652349

Brace, Seat Support

$

$

Not available

7

Simplicity 2810292

Nut, Square, 5/16"-18

$

$

Not available

8

Simplicity 1653503

Bracket

$

$

Not available

9

Simplicity 923700

Bolt, Carriage, 5/16"-18 x 1/2" lg.

$

$

Not available

10

Simplicity 1917356SM

Lockwasher, 5/16"
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

11

Simplicity 1917372SM

Nut, Hex, Full, 5/16"-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

12

Simplicity 1652668

Seat Assembly

$

$

Not available

13

Simplicity 2817397

Capscrew, Hex, 5/16"-18 x 3/4" lg.

$

$

Not available

14

Simplicity 1917356SM

Lockwasher, 5/16"
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0
