5010 LTD (1690119) - Simplicity Broadmoor Lawn Tractor FRAME, HOOD AND DASH Parts Diagram

Broadmoor Lawn Tractor

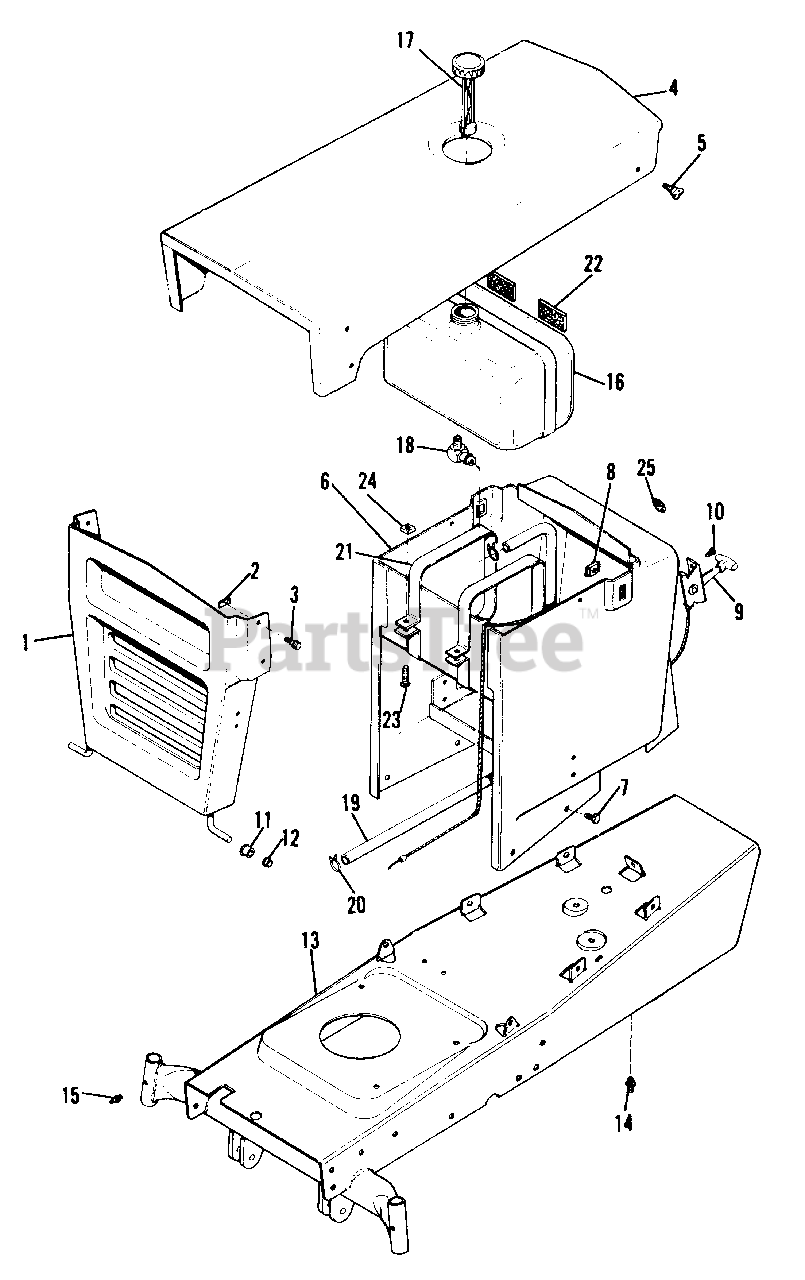

FRAME, HOOD AND DASH Parts Diagram

  • Title

1

Simplicity 1652670

Grille Assembly

$

$

Not available

2

Simplicity 2828705

J-Nut

$

$

Not available

3

Simplicity 2830594

Screw, Flange 1/4"-20 x 3/4 lg.

$

$

Not available

4

Simplicity 1652367

Hood

$

$

Not available

5

Simplicity 2828693

Screw, Thumb

$

$

Not available

6

Simplicity 1652161

Dash Assembly

$

$

Not available

7

Simplicity 2827428

Screw, Taptite, 1/4" x 3/8" lg.

$

$

Not available

8

Simplicity 2830659

Nut, Retainer

$

$

Not available

9

Simplicity 1650999

Control

$

$

Not available

10

Simplicity 2827428

Screw, Taptite, 1/4"-20 x 3/8" lg.

$

$

Not available

11

Simplicity 2118273SM

Bushing

$3.49

$

Usually ships in 2-12 days

0

12

Simplicity 1960093SM

Fastener, Pushout
(Superseded to 703948)

$4.49

$

In Stock, Qty 20+

0

13

Simplicity 1650581

Frame Assembly

$

$

Not available

14

Simplicity 2821133SM

Fitting, Grease
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

15

Simplicity 2814687

Fitting, Grease

$

$

Not available

16

Simplicity 156174

Tank, Fuel

$

$

Not available

17

Simplicity 2156175SM

Cap, Fuel Tank

$31.99

$

In Stock, only 4 left!

0

18

Simplicity 174640

Elbow, 90ø

$

$

Not available

19

Simplicity 2156177

Hose, Fuel

$

$

Not available

20

Simplicity 2154372

Clamp, Hose

$

$

Not available

21

Simplicity 1653613

Strap, Tank

$

$

Not available

22

Simplicity 106582

Gasket, Felt

$

$

Not available

23

Simplicity 930534

Screw, Mach. 1/4"-20 x 1-1/2" lg.

$

$

Not available

24

Simplicity 930623

Nut, Square, 1/4"-20

$

$

Not available

25

Simplicity 2156319

Button, Plug

$

$

Not available
