5010 LTD (1690119) - Simplicity Broadmoor Lawn Tractor ENGINE, PULLEY, BRAKE AND CLUTCH Parts Diagram

Broadmoor Lawn Tractor

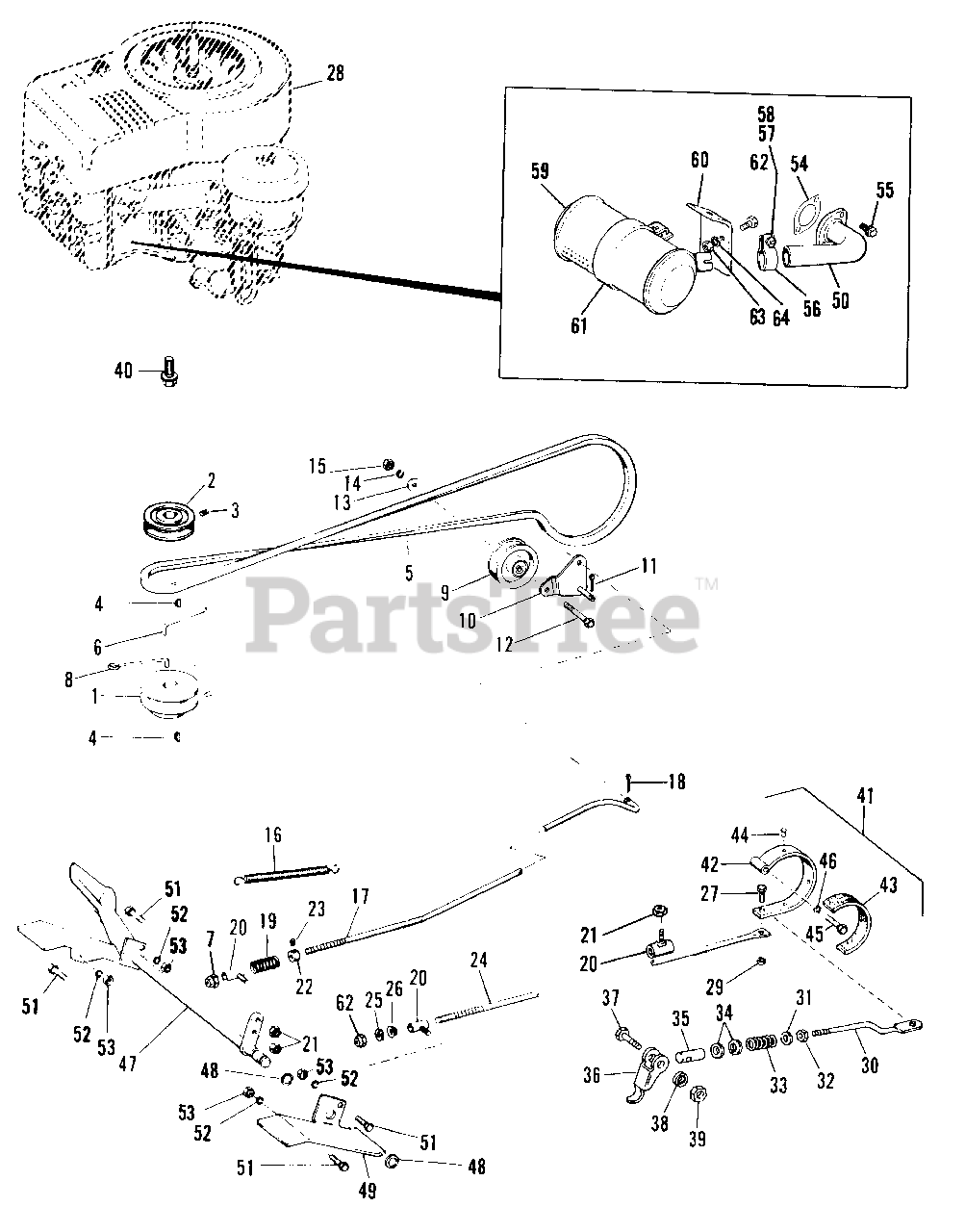

ENGINE, PULLEY, BRAKE AND CLUTCH Parts Diagram

  • Title

1

Simplicity 2156111SM

Pulley, Engine, Large

$75.99

$

Usually ships in 2-12 days

0

2

Simplicity 2163010

Pulley

$

$

Not available

3

Simplicity 2828691

Screw, Set, 5/16"-18 x 5/16" lg.

$

$

Not available

4

Simplicity 2154096SM

Key

$6.99

$

In Stock, only 2 left!

0

5

Simplicity 2165048SM

Belt,"V" Drive

$49.99

$

In Stock, only 3 left!

0

6

Simplicity 2165044

Stop, Belt

$

$

Not available

7

Simplicity 2824433

Nut, Eiastic, Stop, 5/16-18

$

$

Not available

8

Simplicity 170786

Stop, Belt

$

$

Not available

9

Simplicity 2106716

Puller, Idler

$

$

Not available

10

Simplicity 1652312

Bracket Assembly, Pulley

$

$

Not available

11

Simplicity 2818451

Pin, Cotter, 1/8" x 3/4" lg.

$

$

Not available

12

Simplicity 2817400

Capscrew, Hex, 3/8"-16 x 1-1/4" lg.

$

$

Not available

13

Simplicity 2817642

Washer, Plain, 5/16"

$

$

Not available

14

Simplicity 1916965SM

Lockwasher, 3/8"
(Superseded to 703454)

$3.49

$

In Stock, Qty 18

0

15

Simplicity 2816950SM

Nut, Hex, Full, 3/8"-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

16

Simplicity 2165068SM

Spring, Return

$12.99

$

In Stock, Qty 5

0

17

Simplicity 1650865

Rod, Clutch

$

$

Not available

18

Simplicity 2818451

Pin, Coner, 1/8" x 3/4" lg.

$

$

Not available

19

Simplicity 2157041SM

Spring, Compression

$15.99

$

Usually ships in 2-12 days

0

20

Simplicity 156303

Guide Assembly, Rod

$

$

Not available

21

Simplicity 2823362

Nut, Hex, Full, Lock, 5/16"-18

$

$

Not available

22

Simplicity 1729254SM

Collar, Set
(Superseded to 703150)

$

$

Not available

23

Simplicity 2828804

Screw, Set, 1/4"-20 x 3/8" lg.

$

$

Not available

24

Simplicity 1650864

Rod, Brake

$

$

Not available

25

Simplicity 1924940SM

Washer, Plain 3/8" lg.
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

26

Simplicity 2157127SM

Spring, Conical

$

$

Not available

27

Simplicity 2827340

Capscrew, Hex, 1/4"-20 x 3/4" lg.

$

$

Not available

28

ENGINE, 10 HP, Briggs & Stratton, Model 251707, Type 0149-01

$

$

Not available

29

Simplicity 2823329

Nut, Hex, Full, Lock, 1/4"-20

$

$

Not available

30

Simplicity 174636

Rod, Parking Brake

$

$

Not available

31

Simplicity 2817377

Washer, Plain, 1/4"

$

$

Not available

32

Simplicity 1917372SM

Nut, Hex, Full, 5/16"-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

33

Simplicity 174482

Spring

$

$

Not available

34

Simplicity 2818431

Washer, Plain, 1/2"

$

$

Not available

35

Simplicity 2171994SM

Rod, End

$15.99

$

In Stock, only 1 left!

0

36

Simplicity 2172108SM

Lever, Parking Brake

$

$

Not available

37

Simplicity 2828745

Capscrew, Hex, 1/4"-20 x 1-1/4" lg.

$

$

Not available

38

Simplicity 930666

Lockwasher, Double, 1/4"

$

$

Not available

39

Simplicity 2823329

Nut, Hex, Full, Lock 1/4"-20

$

$

Not available

40

Simplicity 2828635SM

Capscrew, Hex, Special 3/8"-16 x 1-1/4" lg.

$4.99

$

In Stock, Qty 20+

0

41

Simplicity 2156134SM

Band Assembly, Brake

$104.99

$

Usually ships in 2-12 days

0

42

Simplicity 2156134SM

Band, Brake

$104.99

$

Usually ships in 2-12 days

0

43

Simplicity 2156134SM

Lining, Brake

$104.99

$

Usually ships in 2-12 days

0

44

Simplicity 2828810

Rivet, #7 x 1/4" lg.

$

$

Not available

45

Simplicity 2819360

Capscrew, Hex, 3/8"-16 x 1-1/2" lg.

$

$

Not available

46

Simplicity 1916965SM

Lockwasher, 3/8"
(Superseded to 703454)

$3.49

$

In Stock, Qty 18

0

47

Simplicity 1652143

Shaft Assembly, Clutch

$

$

Not available

48

Simplicity 2827793SM

Ring, "E"
(Superseded to 703977)

$4.99

$

In Stock, Qty 17

0

49

Simplicity 1652147

Foot Rest, L.H.

$

$

Not available

50

Simplicity 1652477

Pipe, Exhaust

$

$

Not available

51

Simplicity 2808127

Capscrew, Hex, 3/8"-16 x 3/4" lg.

$

$

Not available

52

Simplicity 1916965SM

Lockwasher, 3/8"
(Superseded to 703454)

$3.49

$

In Stock, Qty 18

0

53

Simplicity 2816950SM

Nut, Hex, Full, 3/8"-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

54

Simplicity 1650670SM

Gasket

$8.49

$

Usually ships in 2-12 days

0

55

Simplicity 2830591

Screw, Hex, "Whiz Lock" 5/16"-18 x 1-1/42" lg.

$

$

Not available

56

Simplicity 1652476

Clamp

$

$

Not available

57

Simplicity 2807729

Capscrew, Hex, 5/16"-18 x 1-1/4" lg.

$

$

Not available

58

Simplicity 1917372SM

Nut, Hex, Full, 5/16"-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

59

Simplicity 1650508

Muffler

$

$

Not available

60

Simplicity 1652475

Bracket, Muffler

$

$

Not available

61

Simplicity 1652474

Clamp

$

$

Not available

62

Simplicity 2824433

Nut, Elastic, Stop, 5/16-18

$

$

Not available

63

Simplicity 914880

Nut, Hex

$

$

Not available

64

Simplicity 1917356SM

Lockwasher, 5/16"
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0
