5010 LTD (1690118) - Simplicity Broadmoor 36" Lawn Tractor TRANSMISSION Parts Diagram

Broadmoor 36" Lawn Tractor

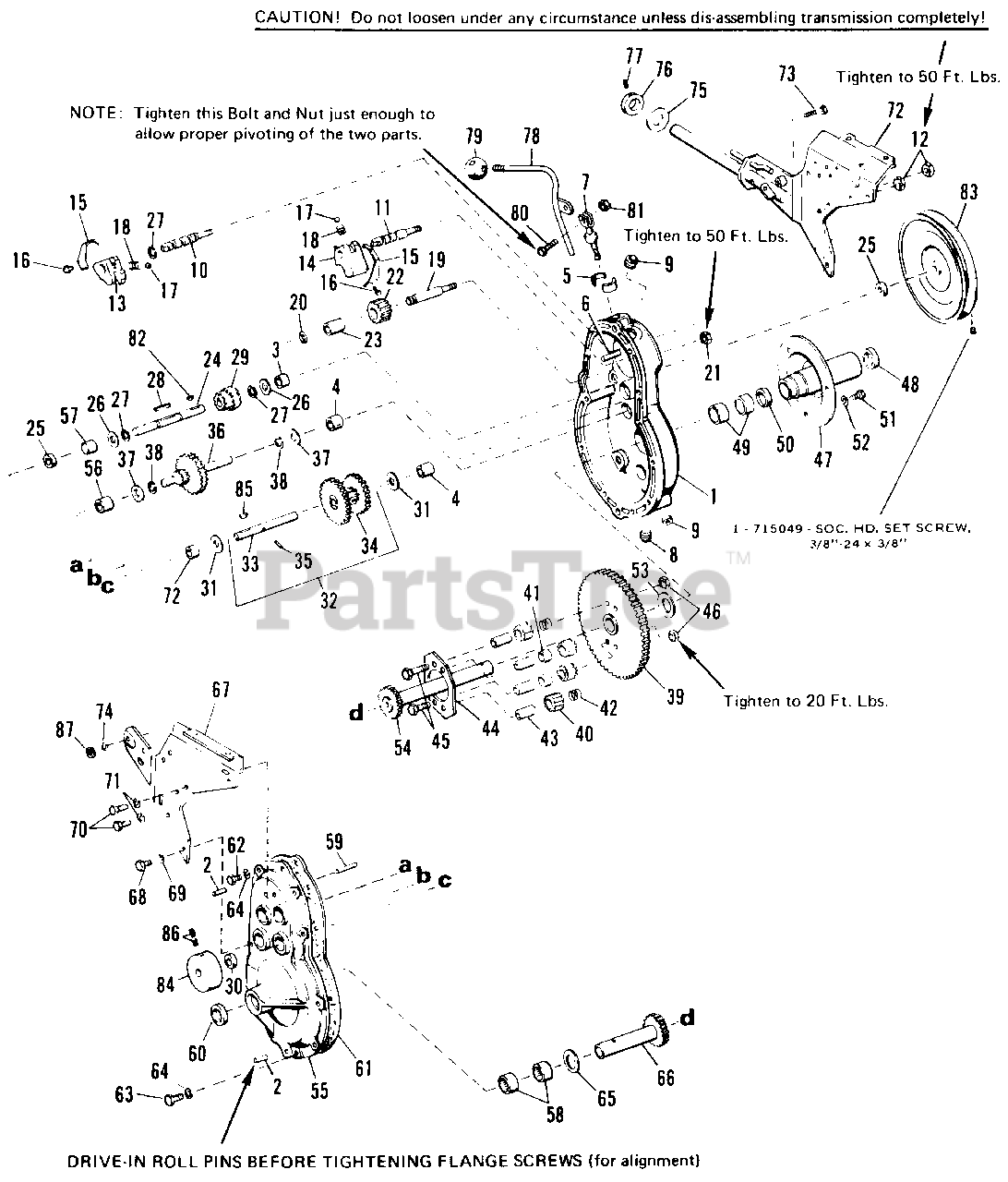

TRANSMISSION Parts Diagram

  • Title

1

Simplicity 165003

Gear Case w/Bearing-Pins Bushings (Includes 2, 3, 4, 5, 6 & 7)

$

$

Not available

2

Simplicity 2818113

Pin, Roll

$

$

Not available

3

Simplicity 2156072SM

Bearing, Roller

$24.99

$

In Stock, only 1 left!

0

4

Simplicity 2156073SM

Bearing, Roller

$11.99

$

Usually ships in 2-12 days

0

5

Simplicity 2101042SM

Bushing, Ball Half

$

$

Not available

6

Simplicity 2156308SM

Roil Pin Assembly

$9.49

$

Usually ships in 2-12 days

0

7

Simplicity 2156031

Rod Assembly, Shift

$

$

Not available

8

Simplicity 2801653

Plug, Pipe

$

$

Not available

9

Simplicity 2830676SM

Plug, Pipe

$

$

Not available

10

Simplicity 1713-65

Shaft, Shift, Rev.-Lo

$

$

Not available

11

Simplicity 2171372SM

Shaft, Shift, Hi-Lo

$96.99

$

Usually ships in 2-12 days

0

12

Simplicity 2818213

Nut, Hex, Full, 7/16"-14

$

$

Not available

13

Simplicity 1713-63

Fork, Shift, Rev.

$

$

Not available

14

Simplicity 1713-64

Fork, Shift, Hi-Lo

$

$

Not available

15

Simplicity 2171342

Spring

$

$

Not available

16

Simplicity 2830614

Capscrew, Hex, 5/16"-18 x 5/16" lg.

$

$

Not available

17

Simplicity 2154262

Ball, Shift, Lock

$

$

Not available

18

Simplicity 2171456SM

Spring

$8.99

$

Usually ships in 2-12 days

0

19

Simplicity 1650-05

Shaft, Rev., Pinion

$

$

Not available

20

Simplicity 2165006SM

O-RING

$10.99

$

Usually ships in 2-12 days

0

21

Simplicity 2818213

Nut, Hex Full, 7/16"-14

$

$

Not available

22

Simplicity 1650625SM

Pinion, Rev.

$63.99

$

Usually ships in 2-12 days

0

23

Simplicity 2156082

Bearing, Roller

$

$

Not available

24

Simplicity 2170455

Shaft, Pulley, P.T.O.

$

$

Not available

25

Simplicity 2156084SM

Seal, Oil

$16.99

$

Usually ships in 2-12 days

0

26

Simplicity 2156085

Washer

$

$

Not available

27

Simplicity 1729260SM

Ring, Retaining

$5.99

$

Usually ships in 2-12 days

0

28

Simplicity 2170453SM

Key

$15.99

$

Usually ships in 2-12 days

0

29

Simplicity 2156087SM

Pinion Assembly, Hi-Lo

$108.99

$

Usually ships in 2-12 days

0

30

Simplicity 2156084SM

Seal, Oil

$16.99

$

Usually ships in 2-12 days

0

31

Simplicity 2156089

Washer

$

$

Not available

32

Simplicity 2165009SM

Shaft & Gear Assembly

$329.99

$

Usually ships in 2-12 days

0

33

Simplicity 2165009SM

Shaft, Brake

$329.99

$

Usually ships in 2-12 days

0

34

Simplicity 2165009SM

Gear Assembly, Cluster

$329.99

$

Usually ships in 2-12 days

0

35

Simplicity 2156292

Pin, Dowel

$

$

Not available

36

Simplicity 2165013SM

Gear & Shaft Assembly

$159.99

$

Usually ships in 2-12 days

0

37

Simplicity 2156085

Washer

$

$

Not available

38

Simplicity 1729260SM

Ring, Retaining

$5.99

$

Usually ships in 2-12 days

0

39

Simplicity 2156094

Gear Assembly, Drive

$

$

Not available

40

Simplicity 2158579SM

Pinion, Diff.

$

$

Not available

41

Simplicity 2121084SM

Spacer, Diff.

$12.99

$

Usually ships in 2-12 days

0

42

Simplicity 2162085SM

Spring, Diff.

$6.99

$

In Stock, Qty 7

0

43

Simplicity 2121083SM

Spindle, Pinion, Diff.

$13.99

$

In Stock, only 1 left!

0

44

Simplicity 156002

Plate, Diff.

$

$

Not available

45

Simplicity 2821972

Capscrew, Hex, 3/8"-16 x 2-1/2" lg.

$

$

Not available

46

Simplicity 2823428

Nut, Hex, Full, Lock, 3/8"-16

$

$

Not available

47

Simplicity 1652307

Housing Assembly Axle

$

$

Not available

48

Simplicity 2118118SM

Seal, Oil

$10.99

$

In Stock, Qty 20+

0

49

Simplicity 2105195SM

Bearing, Roller

$34.99

$

Usually ships in 2-12 days

0

50

Simplicity 2156099SM

Seal, Oil

$3.49

$

In Stock, only 1 left!

0

51

Simplicity 2819357

Capscrew, Hex, 3/8"-16 x 7/8" lg.

$

$

Not available

52

Simplicity 1916965SM

Lockwasher, 3/8"
(Superseded to 703454)

$3.49

$

In Stock, Qty 18

0

53

Simplicity 2105083

Washer

$

$

Not available

54

Simplicity 165016

Axle Shaft Assembly R.H.

$

$

Not available

55

Simplicity 165001

Gear Case

$

$

Not available

56

Simplicity 2156073SM

Bearing, Roller

$11.99

$

Usually ships in 2-12 days

0

57

Simplicity 2156072SM

Bearing, Roller

$24.99

$

In Stock, only 1 left!

0

58

Simplicity 2105195SM

Bearing, Roller

$34.99

$

Usually ships in 2-12 days

0

59

Simplicity 2156308SM

Roll Pin assembly

$9.49

$

Usually ships in 2-12 days

0

60

Simplicity 2118118SM

Seal, Oil

$10.99

$

In Stock, Qty 20+

0

61

Simplicity 2156103SM

Gasket, Case

$

$

Not available

62

Simplicity 2807729

Capscrew, Hex, 5/16"-18 x 1-1/4" lg.

$

$

Not available

63

Simplicity 2821221

Capscrew, Hex, 5/16"-18 x 1-1/2" lg.

$

$

Not available

64

Simplicity 1917356SM

Lockwasher, 5/16"
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

65

Simplicity 2105083

Washer

$

$

Not available

66

Simplicity 165019

Axle Shaft Assembly, L.H.

$

$

Not available

67

Simplicity 1653612

Plate, Side, Trans., L.H.

$

$

Not available

68

Simplicity 2808127

Capscrew, Hex, 3/8"-16 x 3/4" lg.

$

$

Not available

69

Simplicity 1916965SM

Lockwasher, 3/8"
(Superseded to 703454)

$3.49

$

In Stock, Qty 18

0

70

Simplicity 2818212

Capscrew, Hex, 7/16"-14 x 1" lg.

$

$

Not available

71

Simplicity 2818199

Lockwasher, 7/16"

$

$

Not available

72

Simplicity 1652318

Plate Assembly, Side, Trans., R.H.

$

$

Not available

73

Simplicity 2819361

Capscrew, Hex, 3/8"-16 x 1-3/4" lg.

$

$

Not available

74

Simplicity 916695

Lockwasher, 3/8"

$

$

Not available

75

Simplicity 2105050

Washer

$

$

Not available

76

Simplicity 2154065SM

Collar, Set

$113.99

$

Usually ships in 2-12 days

0

77

Simplicity 2828721

Screw, Set, Sq. Hd. 5/16"-18 x 1/2" lg.
(Superseded to 1930540SM)

$4.49

$

In Stock, Qty 11

0

78

Simplicity 1652321

Rod Assembly, Shift

$

$

Not available

79

Simplicity 1729255SM

Ball, Knob

$12.99

$

Usually ships in 2-12 days

0

80

Simplicity 2816019

Capscrew, Hex, 1/4"-20 x 3/4" lg.

$

$

Not available

81

Simplicity 2823358

Nut, Hex, Full, Lock, 1/4"-20

$

$

Not available

82

Simplicity 2830670SM

Key

$2.49

$

Usually ships in 2-12 days

0

83

Simplicity 2156119SM

Pulley, Transmission

$112.99

$

Usually ships in 2-12 days

0

84

Simplicity 2165067SM

Drum, Brake

$27.99

$

Usually ships in 2-12 days

0

85

Simplicity 2830669

Key

$

$

Not available

86

Simplicity 2828691

Screw, Set, 5/16"-18 x 3/4" lg.

$

$

Not available

87

Simplicity 2816950SM

Nut, Hex, Full, 3/8"-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0
