Broadmoor 36" Lawn Tractor

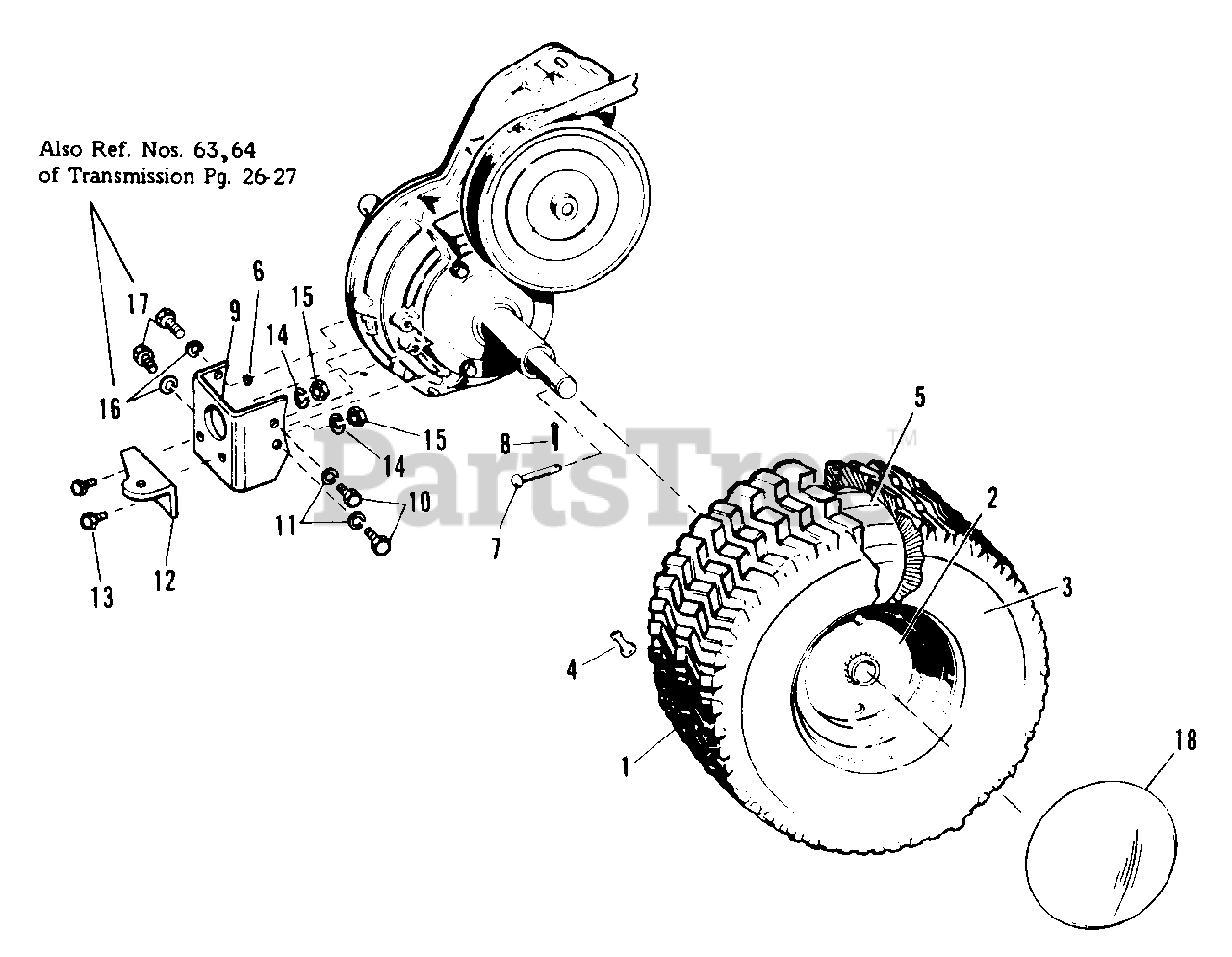

REAR WHEELS AND HITCH Parts Diagram

  • Title

1

Simplicity 170026

Wheel & Tire Assembly

$

$

Not available

2

Simplicity 2170033SM

Wheel Assembly

$

$

Not available

3

Simplicity 2156312

Tire

$

$

Not available

4

Simplicity 2156305

Valve Stem and Cap

$

$

Not available

5

Simplicity 156380

Tube

$

$

Not available

6

Simplicity 2817642

Washer, Plain, 5/16"

$

$

Not available

7

Simplicity 2118053SM

Pin
(Superseded to 704241)

$9.99

$

In Stock, only 2 left!

0

8

Simplicity 2818451

Pin, Cotter 1/8" x 3/4" lg.

$

$

Not available

9

Simplicity 1652302

Bracket, Draw Bar

$

$

Not available

10

Simplicity 2821965

Capscrew, Hex, 3/8"-16 x 3/4" lg.

$

$

Not available

11

Simplicity 1916965SM

Lockwasher, 3/8"
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

12

Simplicity 1652303

Clip, Draw Bar Hitch

$

$

Not available

13

Simplicity 2825204

Capscrew, 3/8"-16 x 1" lg.

$

$

Not available

14

Simplicity 1916965SM

Lockwasher, 3/8"
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

15

Simplicity 2816950SM

Nut, Hex, Full, 3/8"-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 6

0

16

Simplicity 1917356SM

Lockwasher, 5/16"
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

17

Simplicity 2821221

Capscrew, 5/16"-18 x 1-1/2" lg.

$

$

Not available

18

Simplicity 2156211SM

Cap, Hub, Rear

$

$

Not available
