5010 LTD (1690118) - Simplicity Broadmoor 36" Lawn Tractor POWER TAKE OFF LIFT LEVER Parts Diagram

Broadmoor 36" Lawn Tractor

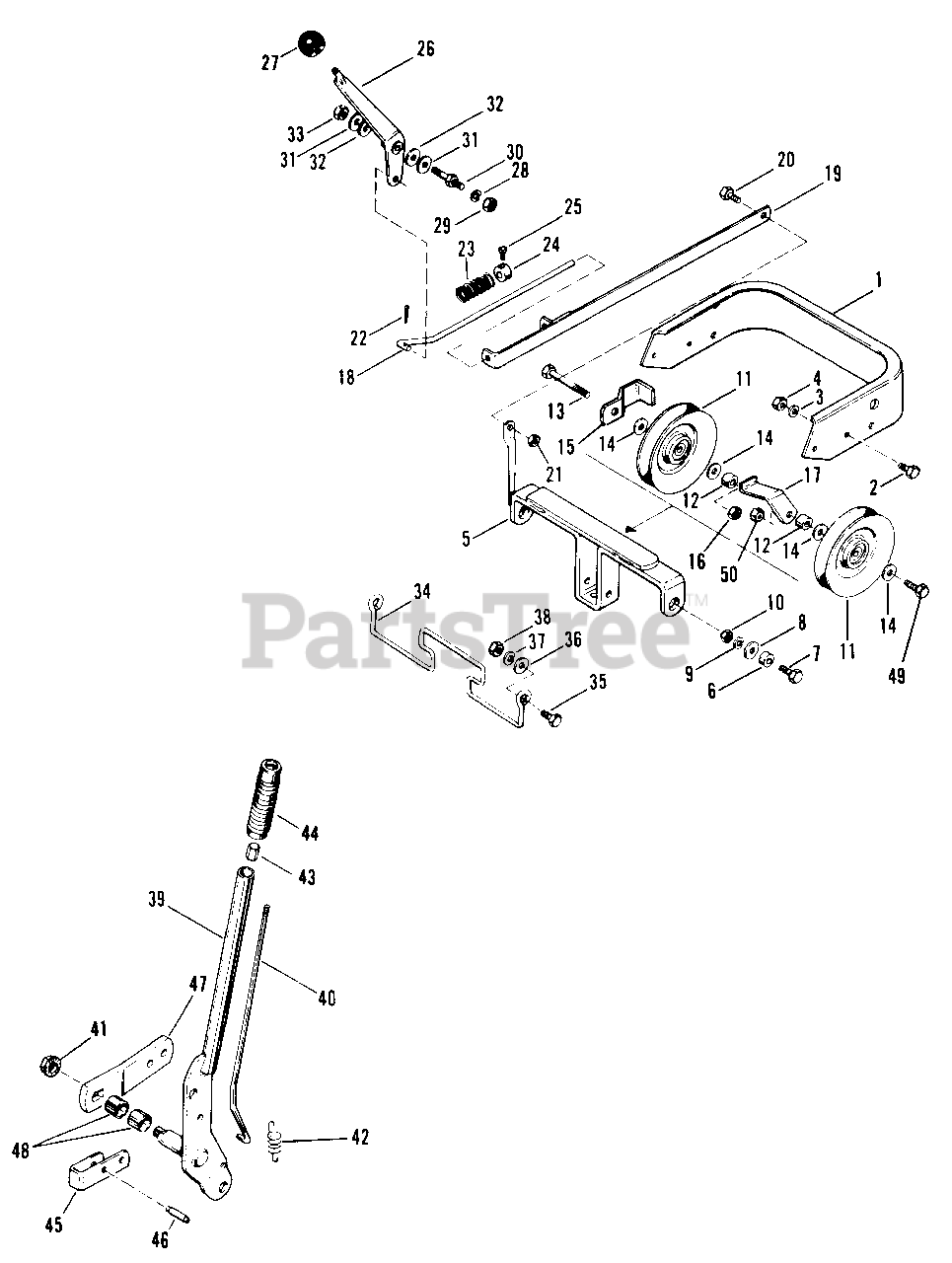

POWER TAKE OFF LIFT LEVER Parts Diagram

  • Title

1

Simplicity 1652669

Bumper, Front

$

$

Not available

2

Simplicity 2817397

Capscrew, Hex, 5/16"-18 x 3/4" lg.

$

$

Not available

3

Simplicity 1917356SM

Lockwasher, 5/16"
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

4

Simplicity 1917372SM

Nut, Hex, Full, 5/16"-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

5

Simplicity 1652135

Clevis Assembly, Pulley

$

$

Not available

6

Simplicity 2154177SM

Spacer

$39.99

$

In Stock, only 1 left!

0

7

Simplicity 2807731

Capscrew, Hex, 3/8"-16 x 1" lg.

$

$

Not available

8

Simplicity 1924940SM

Washer, Plain, 3/8"
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

9

Simplicity 1916965SM

Lockwasher, 3/8"
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

10

Simplicity 2816950SM

Nut, Hex, Full, 3/8"-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

11

Simplicity 2101096SM

Pulley

$59.99

$

In Stock, only 3 left!

0

12

Simplicity 2154177SM

Spacer

$39.99

$

In Stock, only 1 left!

0

13

Simplicity 2822606

Capscrew, 3/8-16 x 1-3/4" lg.

$

$

Not available

14

Simplicity 2817642

Washer, Plain, 3/8"

$

$

Not available

15

Simplicity 2162115SM

Stop, Belt
(Superseded to 2162115ASM)

$12.99

$

Usually ships in 2-12 days

0

16

Simplicity 924034

Nut, Hex, Full, Lock, 3/8"-16

$

$

Not available

17

Simplicity 1653400

Stop

$

$

Not available

18

Simplicity 176354

Rod, Clutch, P.T.O.

$

$

Not available

19

Simplicity 106399

Guide Assembly, Idler

$

$

Not available

20

Simplicity 2808127

Capscrew, Hex, 3/8"-16 x 3/4" lg.

$

$

Not available

21

Simplicity 2823428

Nut, Hex, Full, Lock, 3/8"-16

$

$

Not available

22

Simplicity 2822000

Pin, Cotter, 3/32" x 5/8" lg.

$

$

Not available

23

Simplicity 2163103SM

Spring

$8.49

$

Usually ships in 2-12 days

0

24

Simplicity 1729276SM

Collar, Set

$

$

Not available

25

Simplicity 2828804

Screw, Set,1/4"-20 x 3/8" lg.

$

$

Not available

26

Simplicity 170103

Lever Assembly

$

$

Not available

27

Simplicity 1729255SM

Ball, Knob

$12.99

$

Usually ships in 2-12 days

0

28

Simplicity 1917356SM

Lockwasher, 5/16"
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

29

Simplicity 1917372SM

Nut, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

30

Simplicity 170108

Stud

$

$

Not available

31

Simplicity 2817642

Washer, Plain, 5/16"

$

$

Not available

32

Simplicity 2159134

Washer, Special

$

$

Not available

33

Simplicity 2823362

Nut, Hex, Full, Lock, 5/16"-18

$

$

Not available

34

Simplicity 2165043SM

Stop, Belt, P.T.O.

$

$

Not available

35

Simplicity 2817397

Capscrew, Hex, 5/16"-18 x 3/4" lg.

$

$

Not available

36

Simplicity 2817642

Washer, Plain, 5/16"

$

$

Not available

37

Simplicity 1917356SM

Lockwasher, 5/16"
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

38

Simplicity 1917372SM

Nut, Hex, Full, 5/16"-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

39

Simplicity 1652674

Lever Assembly, Lift

$

$

Not available

40

Simplicity 1650147

Rod, Latch

$

$

Not available

41

Simplicity 2830644

Nut, Flange, Lock 1/2"-13

$

$

Not available

42

Simplicity 1650155SM

Spring

$7.49

$

Usually ships in 2-12 days

0

43

Simplicity 1650157SM

Button, Thumb

$7.49

$

In Stock, only 1 left!

0

44

Simplicity 2156209

Grip, Lift Lever
(Superseded to 1713995SM)

$12.99

$

In Stock, only 1 left!

0

45

Simplicity 1652172

Latch, Lift Lever

$

$

Not available

46

Simplicity 2818113

Pin, Roll, 3/8" x 1" lg.

$

$

Not available

47

Simplicity 176464

Link, Lift Lever

$

$

Not available

48

Simplicity 2154289SM

Bushing

$12.99

$

Usually ships in 2-12 days

0

49

Simplicity 923483

Capscrew, Hex, 3/8-24 x 2" lg.

$

$

Not available

50

Simplicity 2817791

Nut, Hex, Full, Lock, 3/8-24

$

$

Not available
