501 (590-501-100) - Cub Cadet Grass Catcher Hopper Assembly Parts Diagram

Grass Catcher

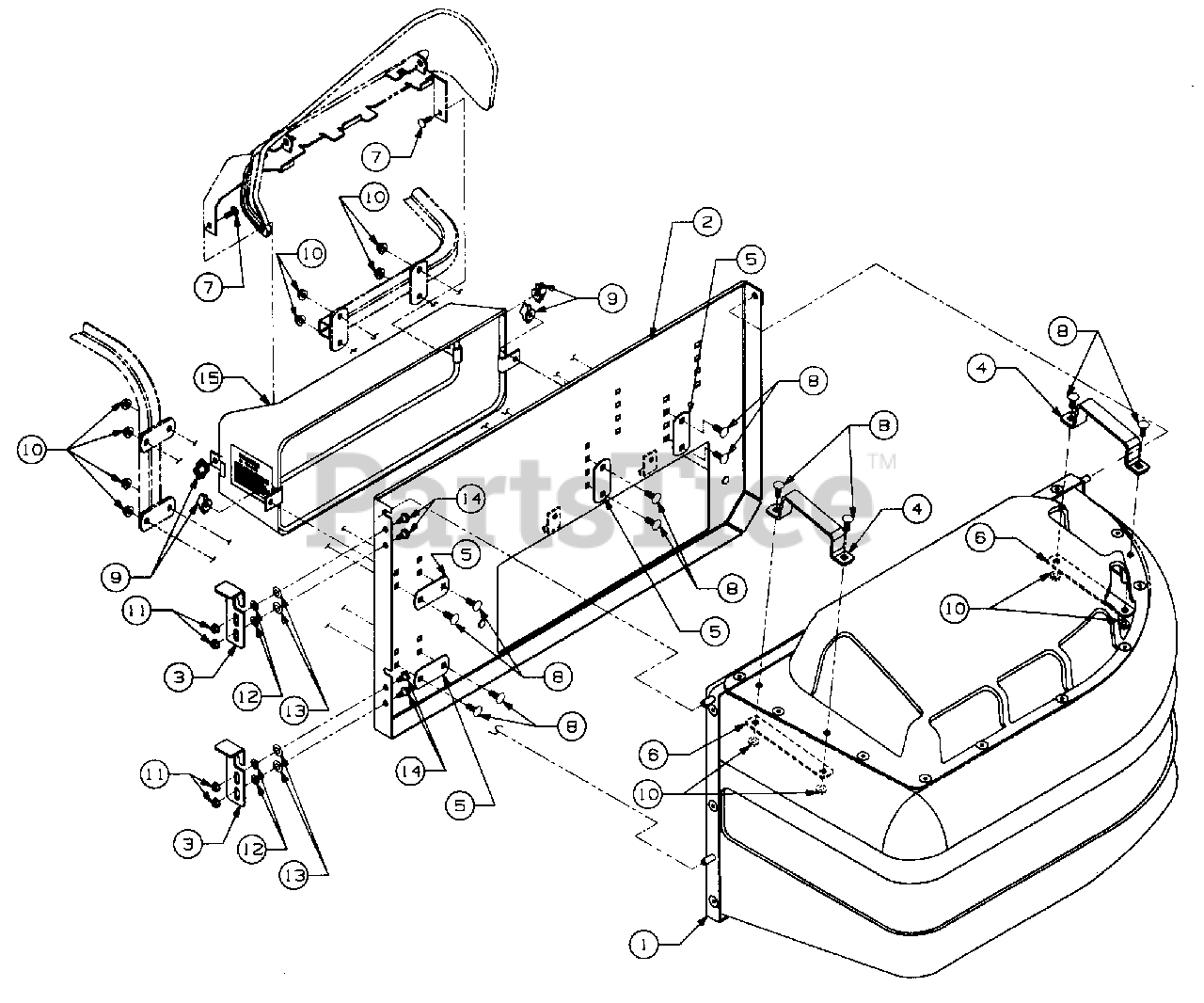

Hopper Assembly Parts Diagram

  • Title

1

Cub Cadet 603-0237

Hopper, Grass

$

$

Currently unavailable

2

Cub Cadet 603-0251

Plate, Support

$

$

Currently unavailable

3

Cub Cadet 703-2460

Latch

$

$

Not available

4

Cub Cadet 703-2467

Handle, Hopper

$

$

Not available

5

Cub Cadet 703-2550

Plate, Retainer

$

$

Currently unavailable

6

Cub Cadet 703-2666

Plate, Handle Reinforcement

$

$

Not available

7

Cub Cadet 710-0134

Bolt, Carriage, 1/4-20 X .62 Lg

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-0451

Bolt, Sht Nk Carriage, 5/16-18 X .75 Lg

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 712-0397

Nut, Wing, 1/4-20
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 712-3004A

Nut, Hex Flange Top Lock, 5/16-18 GR5

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 712-3027

Nut, Hex Flange Lock, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 17

0

12

Cub Cadet 736-0204

Washer, Flat, .344 X .62 X .033 Thk

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 736-0286

Washer, Bowed
(Superseded to 936-0286)

$6.99

$

In Stock, only 2 left!

0

14

Cub Cadet 738-0137

Bolt, Shoulder, 1/4-20 X 2.65 Lg

$

$

Not available

15

Cub Cadet 764-3002

Boot, Grass Catcher

$

$

Not available
