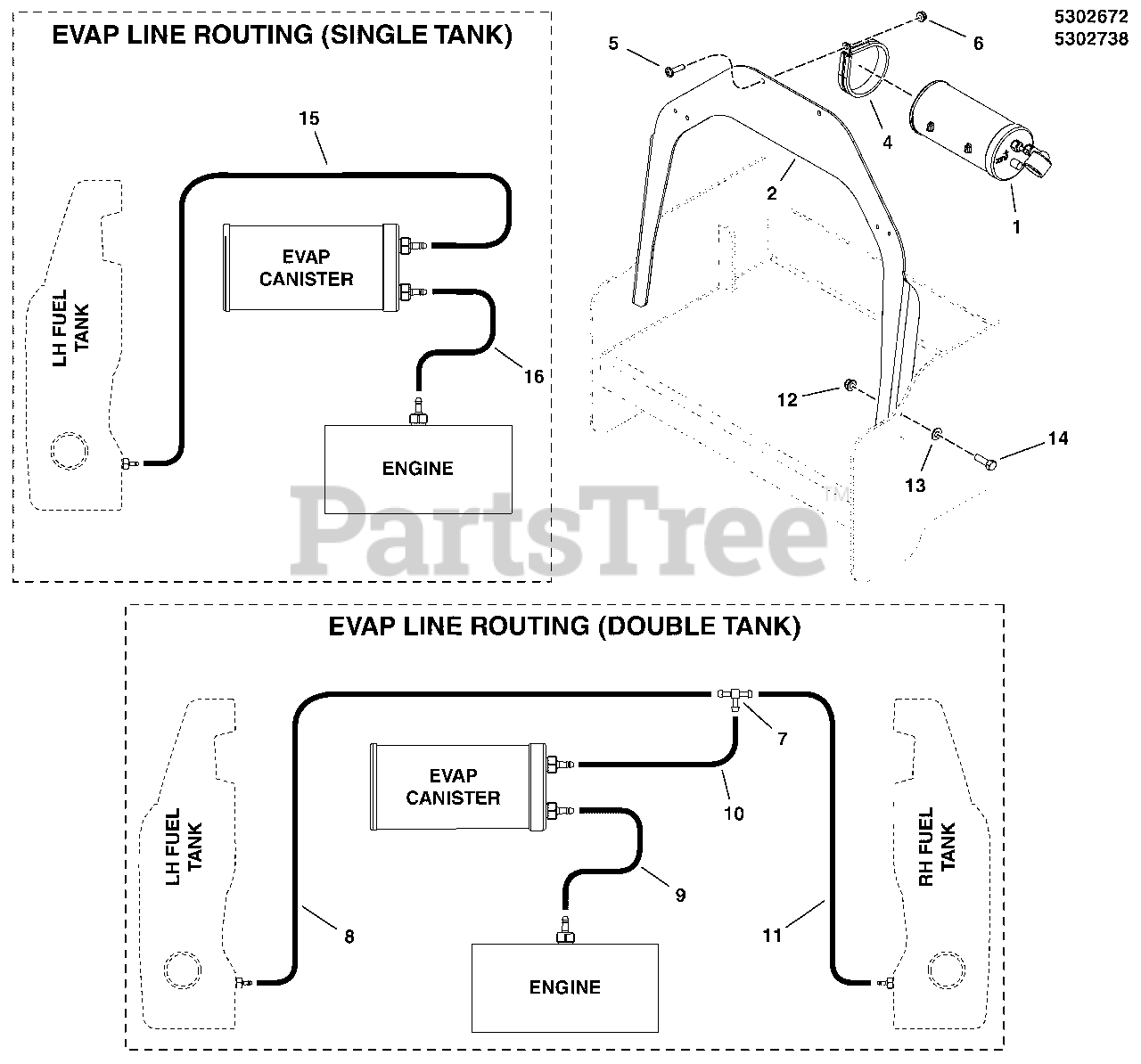

500Z (B 2748) (5900532) - Snapper 48" Zero-Turn Mower, 27hp Evap Canister Group - S/N: 2016816349 & Below Parts Diagram

48" Zero-Turn Mower, 27hp

Evap Canister Group - S/N: 2016816349 & Below Parts Diagram

  • Title
1a

Snapper 313036

CANESTER, CARB, 6 GAL
(Superseded to 313036GS)

Note: (Single Tank Models)

$217.99

$

Usually ships in 2-12 days

0

1b

Snapper 313037

CANESTER, CARB, 9 GAL
(Superseded to 313037YP)

Note: (Double Tank Models)

$92.99

$

In Stock, only 1 left!

0

2

Snapper 5408222A

BRACKET, CARB CANISTER, S50X - BLK
(Superseded to 5408222AYP)

$51.99

$

Usually ships in 2-12 days

0

3

DECAL, EPA CERT, ZTRS (Not Shown)

Note: (Located on frame near Serial Tag)

$

$

Not available

4

Snapper 5103055

CLAMP, 3" ID, CUSHIONED, STAINLESS
(Superseded to 5103055YP)

$7.99

$

Usually ships in 2-12 days

0

5

Snapper 5025299X6

SCREW, 1/4-20 X 3/4 ALLEN BH
(Superseded to 5106757)

$3.49

$

Usually ships in 2-12 days

0

6

Snapper 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

7

Snapper 5103062

FITTING, 3/16" TEE, BARB TYPE, HDPE
(Superseded to 5103062YP)

$10.99

$

In Stock, only 2 left!

0

8

Snapper 7700552X43

HOSE, VAPOR, 5MM ID, 43.00 LG
(Superseded to 315826GS)

$13.99

$

In Stock, only 3 left!

0

9

Snapper 7700552X36

HOSE, VAPOR, 5MM ID, 36.00 LG
(Superseded to 7700552X36YP)

$

$

Not available

10

Snapper 7700552X5P5

HOSE, VAPOR, 5MM ID, 5.50 LG
(Superseded to 7700552X5P5YP)

$

$

Not available

11

Snapper 7700552X11

HOSE, VAPOR, 5MM ID, 11.00 LG
(Superseded to 7700552X11YP)

$3.99

$

Usually ships in 2-12 days

0

12

Snapper 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

13

Snapper 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

14

Snapper 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 16

0

15

Snapper 7700552X36P5

HOSE, VAPOR, 5MM ID, 36.50 LG
(Superseded to 7700552X36P5YP)

$7.99

$

In Stock, only 1 left!

0

16

Snapper 7700552X29P5

HOSE, VAPOR, 5MM ID, 29.50 LG
(Superseded to 7700552X29P5YP)

$

$

Not available
