500Z (B 2648) (5900731) - Snapper 48" Zero-Turn Mower, 26hp Instrument & Control Panel Group - Double Tank Parts Diagram

48" Zero-Turn Mower, 26hp

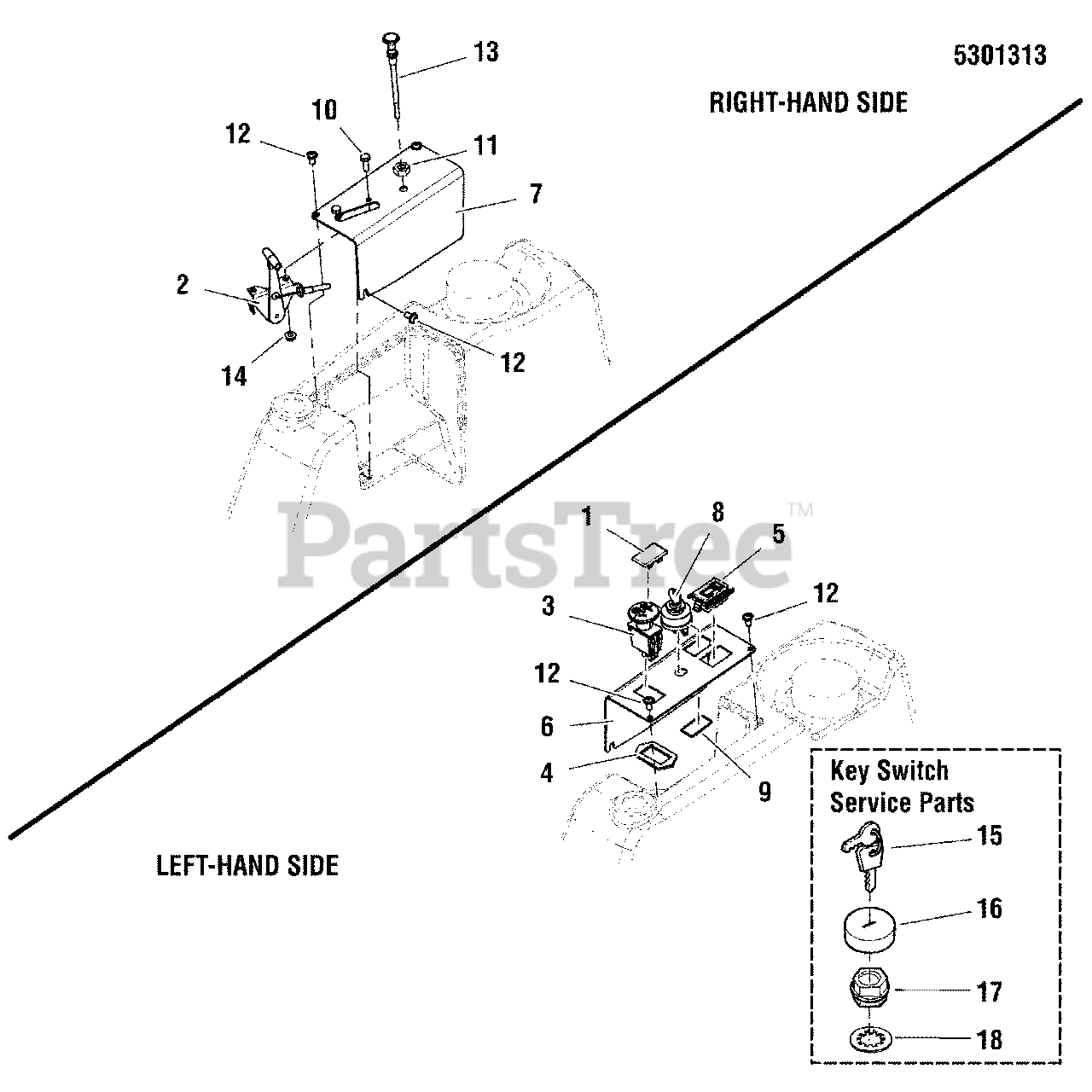

Instrument & Control Panel Group - Double Tank Parts Diagram

  • Title

1

Snapper 1709188

PLUG, .820X1.44 HOLE, BLACK PLASTIC
(Superseded to 1709188SM)

$4.99

$

Usually ships in 2-12 days

0

2

Snapper 5020811

CABLE, THROTTLE CONTROL, 38
(Superseded to 5020811SM)

$49.99

$

Usually ships in 2-12 days

0

3

Snapper 5022180

SWITCH, BLADE ENGAGEMENT
(Superseded to 1722887SM)

$33.99

$

In Stock, Qty 20+

0

4

Snapper 5022222

RING, SWITCH RETAINER
(Superseded to 5022222SM)

$4.49

$

In Stock, only 1 left!

0

5a

HOUR METER, ASSEMBLE

Note: (S/N: 2015551938 & Above)(*See footnote)

$

$

Not available

5b

Snapper 5100996

HOUR METER, W/ SUPRESSOR
(Superseded to 5102417)

Note: (S/N: 2015551937 & Below)

$65.99

$

In Stock, only 2 left!

0

6

Snapper 5402918A

CONTROL PANEL, LEFT - BLK
(Superseded to 5402918AYP)

$24.99

$

Usually ships in 2-12 days

0

7

Snapper 5403274A

CONTROL PANEL, RIGHT - BLK
(Superseded to 5403274AYP)

$18.99

$

Usually ships in 2-12 days

0

8

Snapper 1737853

SWITCH ASSEMBLY, Ignition Indak No Keys/Hdwr
(Superseded to 1737853YP)

$35.99

$

In Stock, Qty 20+

0

9

Snapper 5022269

O-RING, 7/8" ID X 1/16" W
(Superseded to 5022269SM)

$3.49

$

In Stock, only 1 left!

0

10

Snapper 5025010X5

CAPSCREW, HEX HEAD, 1/4-20 X 5/8
(Superseded to 5025010X5SM)

$3.49

$

Usually ships in 2-12 days

0

11

Snapper 5025309

NUT, 3/8-24 Hex Jam
(Superseded to 5025309SM)

$2.99

$

Usually ships in 2-12 days

0

12

Snapper 5025299X4SM

SCREW, ALLEN HEAD 1/4-20 X .500 ZINC PHOS

$4.99

$

In Stock, only 2 left!

0

13

Snapper 5047143

CABLE, CHOKE CONTROL, 39.5"
(Superseded to 5047143SM)

Note: (INCLUDES REF NO 11)

$56.99

$

Usually ships in 2-12 days

0

14

Snapper 5025391

NUT, 1/4-20 Hex Nylock Flange
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

15

Snapper 1737836

KEYS, Blister Pk (KIDS+MWRS DON'T MIX) English/Spanish (set of two, one coated)
(Superseded to 1737836YP)

$20.99

$

In Stock, only 1 left!

0

16

Snapper 1717550

COVER, For Ignition Switch, Plastic
(Superseded to 1717550SM)

$8.49

$

In Stock, Qty 16

0

17

Snapper 1717549

NUT, 5/8-32 Hex Flange (Ignition Switch Die Cast)
(Superseded to 1717549SM)

$10.99

$

Usually ships in 2-12 days

0

18

Snapper 1960547

LOCKWASHER-INTERNAL TOOTH, .625 THIN BLK (SV)
(Superseded to 1960547SM)

$4.49

$

In Stock, only 4 left!

0
