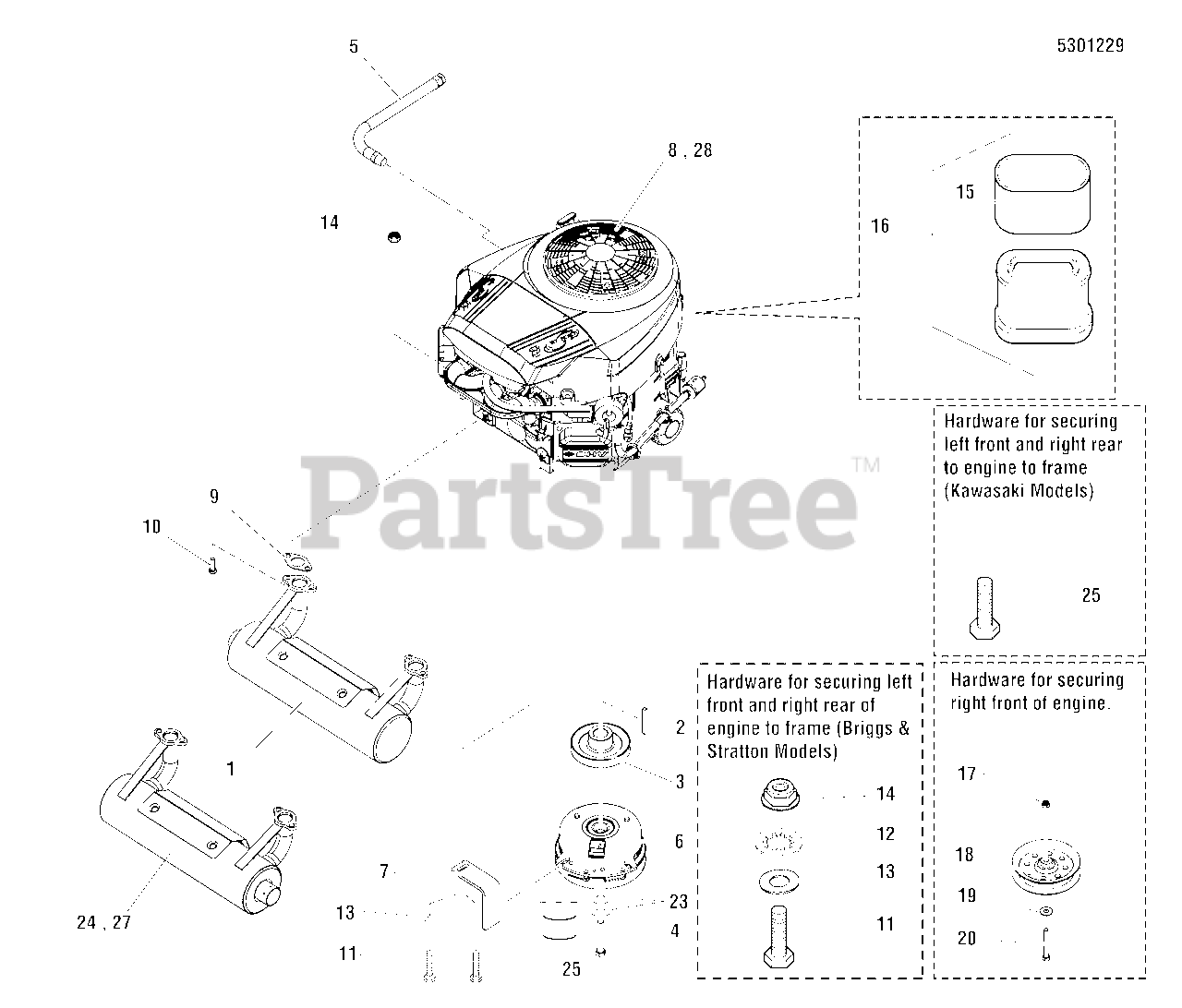

500Z (B 2648) (5900731) - Snapper 48" Zero-Turn Mower, 26hp Engine & PTO Group Parts Diagram

48" Zero-Turn Mower, 26hp

Engine & PTO Group Parts Diagram

  • Title

1

Snapper 5100907

MUFFLER, B&S-ELS
(Superseded to 5100907SM)

Note: (S/N: 2016294925 & Below)

$

$

Not available

2

Snapper 5050407X8

KEY, 1/4 SQ. X 1.00
(Superseded to 5050407X8SM)

$3.99

$

In Stock, only 2 left!

0

3

Snapper 5101337

PULLEY, PUMP DRIVE, 4.857 OB X 1" BORE
(Superseded to 5101337FS)

$35.99

$

Usually ships in 2-12 days

0

4

Snapper 5102865

BOLT, CRANKSHAFT, 7/16 X 2-3/4
(Superseded to 5102865YP)

Note: (S/N: 2015745413 & Below)

$5.49

$

In Stock, only 2 left!

0

4

Snapper 5102866

BOLT, CRANKSHAFT, 7/16-20 X 3, GD8
(Superseded to 5102866YP)

Note: (S/N: 2015745414 & Above)

$5.49

$

In Stock, only 1 left!

0

5

Snapper 5048681

HOSE, OIL DRAIN
(Superseded to 5048681SM)

$18.99

$

Usually ships in 2-12 days

0

6

Snapper 5100915

CLUTCH, # 5219-34A, ELECTRIC, IS500Z
(Superseded to 5100915SM)

$330.99

$

Usually ships in 2-12 days

0

7

Snapper 5404967A

ANCHOR, CLUTCH - BLK
(Superseded to 5404967AYP)

$32.99

$

Usually ships in 2-12 days

0

8

Snapper 44T877-9322-21

* ENGINE, B&S 25HP, Model 44T877-9322-21

Note: (Briggs & Stratton Model 44T877-9322-21)

$

$

Currently unavailable

8

Snapper 44P777-6169-G5

* ENGINE, B&S, 26HP ELS, Model 44P777-6169-G5

Note: (Briggs & Stratton Model 44P777-6169-G5)

$

$

Currently unavailable

8

Snapper 44Q777-5146-G5

* ENGINE, B&S, 27HP ELS, Model 44Q777-5146-G5

Note: (Briggs & Stratton Model 44Q777-5146-G5)

$

$

Currently unavailable

28

Snapper FR651V-FS00-S

* ENGINE, KAWASAKI 21.5 HP FR651V-FS00-S

Note: (Kawasaki Models Only)

$

$

Not available

9

Snapper 690970

GASKET, Exhaust

Note: (Briggs & Stratton Models Only)

$4.99

$

In Stock, Qty 20+

0

10

Snapper 690341

SCREW

Note: (Briggs & Stratton Models Only)

$5.99

$

In Stock, only 3 left!

0

11

Snapper 5025011X14

BOLT, 5/16-18 X 1-3/4 GD5 YZ
(Superseded to 5025011X14SM)

Note: (Briggs & Stratton Models Only)

$3.99

$

In Stock, Qty 20+

0

12

Snapper 5025188

WASHER, 5/16" INT. TOOTH LOCK
(Superseded to 5025188SM)

Note: (Briggs & Stratton Models Only)

$3.99

$

In Stock, only 1 left!

0

13

Snapper 5025155

WASHER, 5/16" SAE

Note: (Briggs & Stratton Models Only)

$

$

Currently unavailable

14

Snapper 5025057

NUT, 5/16-18 HEX NYLON LOCK
(Superseded to 5025057FS)

Note: (Briggs & Stratton Models Only)

$3.99

$

Usually ships in 2-12 days

0

15

Snapper 792303

* PRE CLEANER (SV)

Note: (Briggs & Stratton Models Only)

$10.99

$

In Stock, only 1 left!

0

16

Snapper 792105

* AIR CLEANER W/ PRE CLEANER (SV)

Note: (Briggs & Stratton Models Only)(Includes Ref No. 15)

$28.99

$

In Stock, Qty 20+

0

17

SEE PUMP DRIVE GROUP

$

$

Not available

18

SEE PUMP DRIVE GROUP

$

$

Not available

19

SEE PUMP DRIVE GROUP

$

$

Not available

20

SEE PUMP DRIVE GROUP

$

$

Not available

21

Snapper 696854

FILTER, Oil

Note: (Briggs & Stratton Models Only - Not illustrated)

$13.99

$

In Stock, Qty 20+

0

22

Snapper 5050833X11

WIRE LOOM, 1/2 ID X 11 IN
(Superseded to 5050833X11YP)

Note: (Not illustrated - Briggs & Stratton Models Only)

$3.49

$

Usually ships in 2-12 days

0

23

Snapper 5025585

BELLEVILLE WASHER 1.1875 X .442 X .089
(Superseded to 5025585YP)

Note: (S/N: 2015745414 & Above)

$4.49

$

In Stock, only 4 left!

0

24

Snapper 593249

MUFFLER, RIGHT OUTLET ASSY
(Superseded to 706900)

Note: (S/N: 2016294926 & Above)

$222.99

$

Usually ships in 2-12 days

0

25

Snapper 5025532

BOLT, 3/8-16 X 1-1/4, SF, PLT W/PATCH
(Superseded to 84003591)

Note: (Kawasaki Models Only)

$3.49

$

In Stock, only 4 left!

0

26

Snapper 5022234

NUT, 5/16-18 HEX NYLON LOCK
(Superseded to 5022234SM)

Note: (Kawasaki Models Only - Not illustrated)

$15.99

$

Usually ships in 2-12 days

0

27

Snapper 5104326YP

MUFFLER

Note: (Kawasaki Models Only)

$207.99

$

In Stock, only 1 left!

0
