500Z (B 2648) (5900731) - Snapper 48" Zero-Turn Mower, 26hp Deck Lift Group (S/N: 2015070192 & Above) Parts Diagram

48" Zero-Turn Mower, 26hp

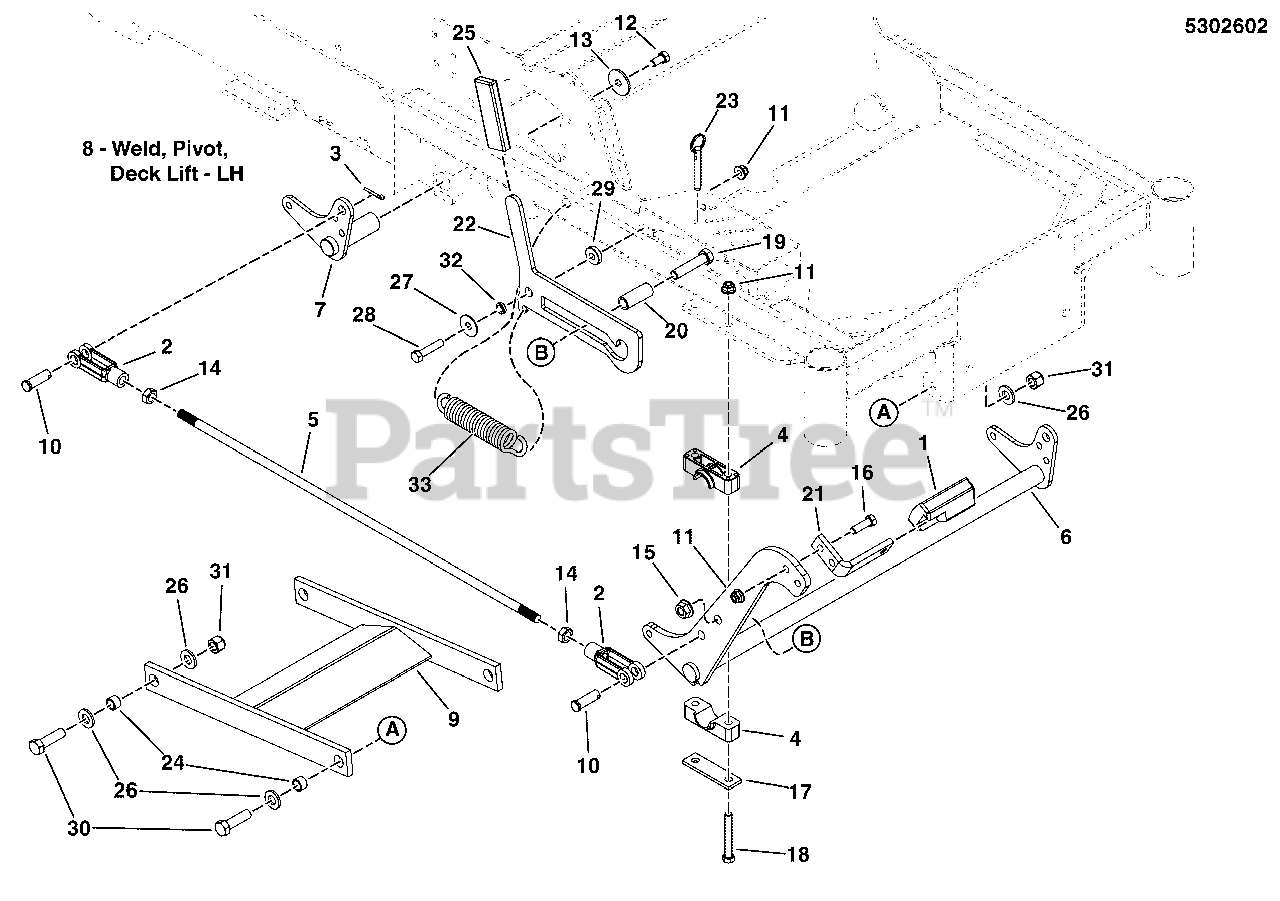

Deck Lift Group (S/N: 2015070192 & Above) Parts Diagram

  • Title

1

Snapper 5104262

PEDAL, Rubber
(Superseded to 5104262YP)

$10.99

$

In Stock, only 1 left!

0

2

Snapper 5023174

CLEVIS, 1/2-20, STEEL, CLEAR ZINC
(Superseded to 5023174SM)

$16.99

$

Usually ships in 2-12 days

0

3

Snapper 5025210YP

PIN, HAIR, .0915 X 1-7/8

$3.99

$

In Stock, Qty 20+

0

4

Snapper 5100634

PIVOT BLOCK, PLASTIC
(Superseded to 5100634SM)

$7.49

$

Usually ships in 2-12 days

0

5

Snapper 5101117

ROD, DECK LIFT, SNAPPER PRO
(Superseded to 5101117YP)

$14.99

$

Usually ships in 2-12 days

0

6

Snapper 5407892D

WELD, FRONT DECK PIVOT - RED
(Superseded to 5407892AA)

$136.99

$

Usually ships in 2-12 days

0

7

Snapper 5402956A

WELD, PIVOT, DECK LIFT, RH - BLK
(Superseded to 5402956AYP)

$50.99

$

Usually ships in 2-12 days

0

8

Snapper 5402957A

WELD, PIVOT, DECK LIFT, LH - BLK

Note: (Not illustrated)

$

$

Currently unavailable

9

Snapper 5407830A

WELD, PULLER BAR - BLK
(Superseded to 5407830AYP)

$87.99

$

Usually ships in 2-12 days

0

10

Snapper 5025328X12

PIN, CLEVIS, 1/2 X 1-1/2, PLATED
(Superseded to 5025328X12SM)

$4.99

$

In Stock, Qty 6

0

11

Snapper 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

12

Snapper 5025443

BOLT, 3/8-16 X 3/4, PLT W/PATCH
(Superseded to 5025443SM)

$3.49

$

Usually ships in 2-12 days

0

13

Snapper 5100548

WASHER, .390 X 1.50 X .109, YZ
(Superseded to 5100548SM)

$4.49

$

Usually ships in 2-12 days

0

14

Snapper 5025089

NUT, 1/2-20 Hex Jam
(Superseded to 5025089SM)

$3.99

$

In Stock, Qty 19

0

15

Snapper 5025396

NUT, 1/2-13 HEX NYLOCK FLANGE
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0

16

Snapper 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, Qty 12

0

17

Snapper 5403925A

PLATE, PIVOT BLOCK SUPPORT - BLK
(Superseded to 5403925AAFS)

$3.49

$

Usually ships in 2-12 days

0

18

Snapper 5025013X22

BOLT, 3/8-16 X 2-3/4" GD5 CZ
(Superseded to 5025013X22SM)

$4.49

$

In Stock, only 3 left!

0

19

Snapper 5025017X34

BOLT, 1/2-13 X 4-1/4 GD5 YZ
(Superseded to 5025017X36SM)

$6.49

$

In Stock, only 2 left!

0

20

Snapper 5102545

SPACER, .53 X .73 X 3.38, CZ
(Superseded to 5102545YP)

$24.99

$

Usually ships in 2-12 days

0

21

Snapper 5061569D

PEDAL, FOOT - RED
(Superseded to 5061569A)

$40.99

$

Usually ships in 2-12 days

0

22

Snapper 5406623D

PLATE, DECK TRANSPORT LEVER - RED
(Superseded to 5406623AYP)

$28.99

$

Usually ships in 2-12 days

0

23

Snapper 5103021

HITCH PIN, 3/8 X 2-1/2, COTTERLESS, CZ
(Superseded to 5103021YP)

$11.99

$

In Stock, Qty 5

0

24

Snapper 5020870

INSERT, Bearing
(Superseded to 5020870SM)

$5.49

$

In Stock, Qty 12

0

25

Snapper 5025510

GRIP, FOAM, 1/4 X 1 X 4.1
(Superseded to 5025510SM)

$6.49

$

In Stock, Qty 12

0

26

Snapper 5025440

WASHER, 1/2" GD9 YZ
(Superseded to 5025440SM)

$4.49

$

In Stock, only 1 left!

0

27

Snapper 5025165

WASHER, 3/8" Fender
(Superseded to 5025165SM)

$3.99

$

In Stock, only 2 left!

0

28

Snapper 5025013X14

BOLT, 3/8-16 X 1-3/4" GD5 CZ
(Superseded to 5025013X14SM)

$3.99

$

In Stock, only 2 left!

0

29

Snapper 5044960

SPACER, .39 X 1.00 X .25, PM, CZ
(Superseded to 5044960SM)

$5.49

$

In Stock, Qty 7

0

30

Snapper 5025018X14

BOLT, 1/2-20 X 1-3/4" GD8 CZ
(Superseded to 5025018X14FS)

$2.99

$

Usually ships in 2-12 days

0

31

Snapper 5025098

NUT, Hex, Nylon Lock, 1/2-20
(Superseded to 5025098SM)

$5.99

$

In Stock, only 2 left!

0

32

Snapper 5041930

SPACER, .38 X .50 X .27, CZ
(Superseded to 5041930SM)

$4.99

$

Usually ships in 2-12 days

0

33

Snapper 5102692

SPRING, EXTENTION, .50 OD X 4.12 FL
(Superseded to 5102692YP)

$19.99

$

Usually ships in 2-12 days

0
