500S (5902102) - Ferris 500S Series 52" Zero-Turn Mower, 25hp Briggs & Stratton 52" Mower Deck - Pulleys, Belt, and Idler Arm Parts Diagram

500S Series 52" Zero-Turn Mower, 25hp Briggs & Stratton

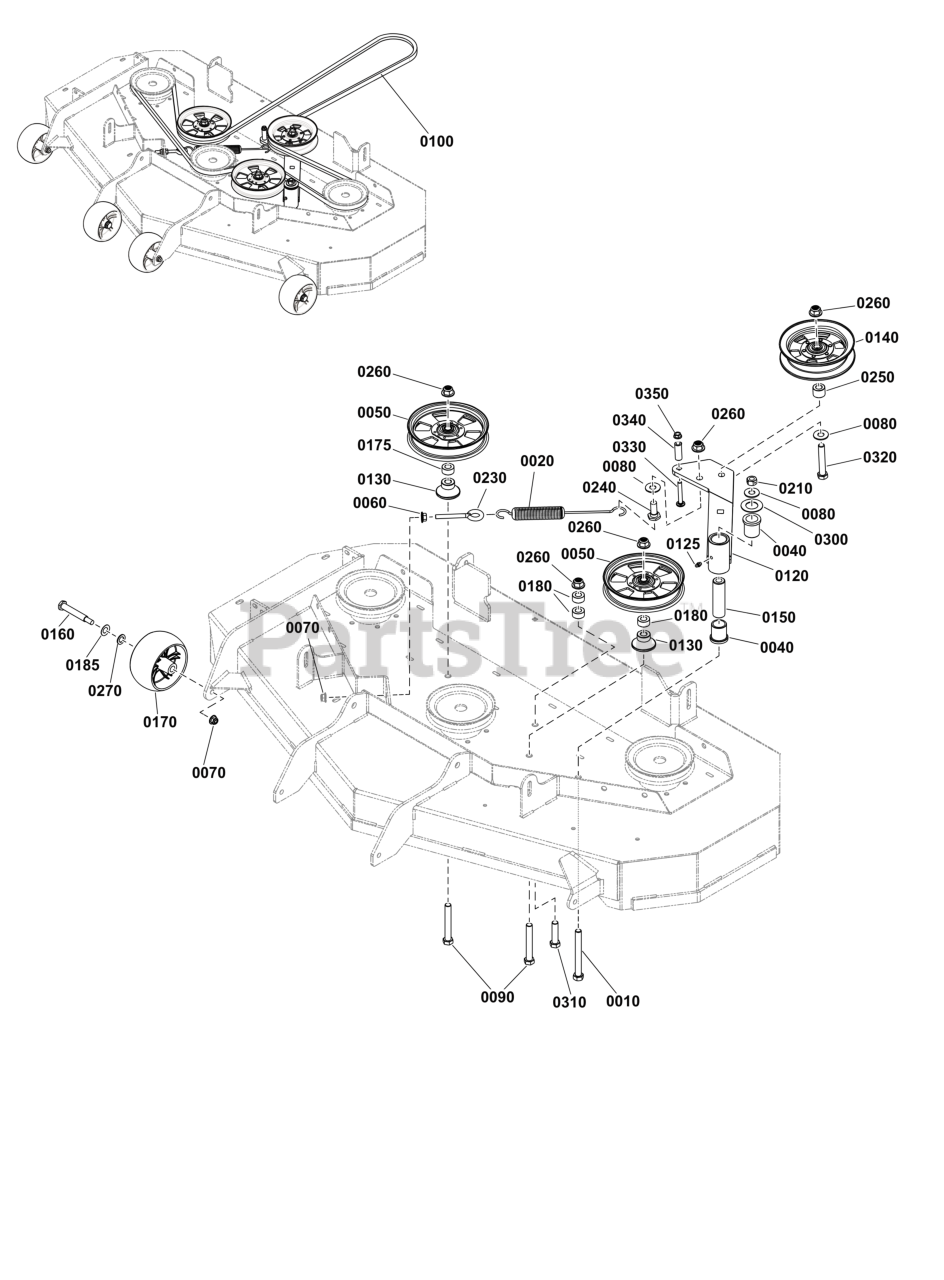

52" Mower Deck - Pulleys, Belt, and Idler Arm Parts Diagram

  • Title

0010

Ferris 5025017X36

BOLT, 1/2-13 X 4-1/2" GD5 YZ
(Superseded to 5025017X36SM)

$6.49

$

In Stock, only 2 left!

0

0020

Ferris 5023340

SPRING-EXT, 1.04 ODX10.535LGX.148WR, BLK
(Superseded to 5023340SM)

$36.99

$

In Stock, only 1 left!

0

0040

Ferris 5021541

BUSHING, FLANGE
(Superseded to 5021541SM)

$9.99

$

In Stock, Qty 10

0

0050

Ferris 5104717

PULLEY, FLT IDLR, 6.0 X 1.0 X .50, CZ
(Superseded to 5104717YP)

$58.99

$

In Stock, Qty 20+

0

0060

Ferris 5025128

NUT, 3/8-16 Hex Large Serrated Flange
(Superseded to 5025128SM)

$3.49

$

In Stock, only 2 left!

0

0070

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

0080

WASHER, Flat

$

$

Not available

0090

Ferris 5025017X28

BOLT, 1/2-13 X 3-1/2, HEX HD, GD5, CZ (SV)
(Superseded to 5025017X28SM)

$5.99

$

In Stock, only 2 left!

0

0100

Ferris 80098314

BELT, B SECT, 149.92 EFL - ARAMID
(Superseded to 84006540)

$139.99

$

Usually ships in 2-12 days

0

0120

WELDMENT, Idler Arm, 52"

$

$

Not available

0125

Ferris 5020095

GREASE FITTING, 1/4-28 Straight
(Superseded to 5020095SM)

$3.99

$

In Stock, only 3 left!

0

0130

Ferris 5103430

IDLER MOUNT
(Superseded to 5103430YP)

$10.99

$

In Stock, Qty 17

0

0140

Ferris 5104716

PULLEY,IDLER,BACKSIDE,NOSEAM 6.25ODX.5ID
(Superseded to 5104716YP)

$59.99

$

In Stock, Qty 15

0

0150

Ferris 5045022

SPACER, .52 x 1.00 x 3.50
(Superseded to 5045022SM)

$24.99

$

In Stock, only 3 left!

0

0160

Ferris 1736539

SHOULDER BOLT, 3/8-16 x 3.41" .750 Thread Yellow
(Superseded to 1736539YP)

$8.99

$

Usually ships in 2-12 days

0

0170

Ferris 1736896

GAUGE WHEEL, Black Poly 5" Dia.
(Superseded to 1736896YP)

$16.99

$

In Stock, Qty 6

0

0175

Ferris 5101162

SPACER, .52 X 1.00 X .56, PM, CZ
(Superseded to 5101162YP)

$7.49

$

Usually ships in 2-12 days

0

0180

Ferris 5104482

SPACER, .52 X 1.00 X .50, CZ
(Superseded to 84007079)

$5.49

$

In Stock, only 1 left!

0

0185

Ferris 720035

WASHER, Spring, .30" ID
(Superseded to 0020X3MA)

$4.49

$

Usually ships in 2-12 days

0

0210

Ferris 5025332

NUT, 1/2-13 Hex Side Lock
(Superseded to 5025332SM)

$3.49

$

In Stock, Qty 12

0

0230

Ferris 5025429

EYEBOLT, 3/8-16 X 4, 2.13THRD, .75EYE, C
(Superseded to 5025429SM)

$6.49

$

Usually ships in 2-12 days

0

0240

Ferris 1737409

BOLT, Shoulder, 2-9/16 Long
(Superseded to 1737409YP)

$12.99

$

In Stock, only 2 left!

0

0250

Ferris 5045178

SPACER, .52 X 1.00 X .75, CZ
(Superseded to 5045178SM)

$7.49

$

In Stock, Qty 6

0

0260

Ferris 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0

0270

Ferris 80003590

WASHER,.516IDX.875ODX.06,FLAT,ZC/CL
(Superseded to 703128)

$3.49

$

In Stock, Qty 20+

0

0300

Ferris 80004282

WASHER,1.017IDX1.812ODX0.6THK,FLAT,ZC/CL
(Superseded to 703199)

$4.99

$

In Stock, only 2 left!

0

0310

Ferris 5025017X16

BOLT, 1/2-13 X 2" GD5 CZ
(Superseded to 5025017X16YP)

$4.49

$

In Stock, only 1 left!

0

0320

Ferris 5025017X24

BOLT, 1/2-13 X 3" GD5 CZ
(Superseded to 5025017X24SM)

$5.99

$

In Stock, only 1 left!

0

0330

Ferris 80004285

SCREW,RDHD SH SQ NK 5/16 X 2.25, ZC/CL
(Superseded to 704421)

$5.49

$

In Stock, only 1 left!

0

0340

Ferris 1713588

SPACER, 5/16 ID x 1 Long
(Superseded to 1713588SM)

$8.49

$

Usually ships in 2-12 days

0

0350

NUT 5/16-18 HEX FLNG CNTR LCK ZC/CL

$

$

Not available
