500S (5902056) - Ferris 500S Series 61" Zero-Turn Mower, 24hp Kawasaki Electrical Schematic - Cranking Circuit - Kawasaki FR730V Parts Diagram

500S Series 61" Zero-Turn Mower, 24hp Kawasaki

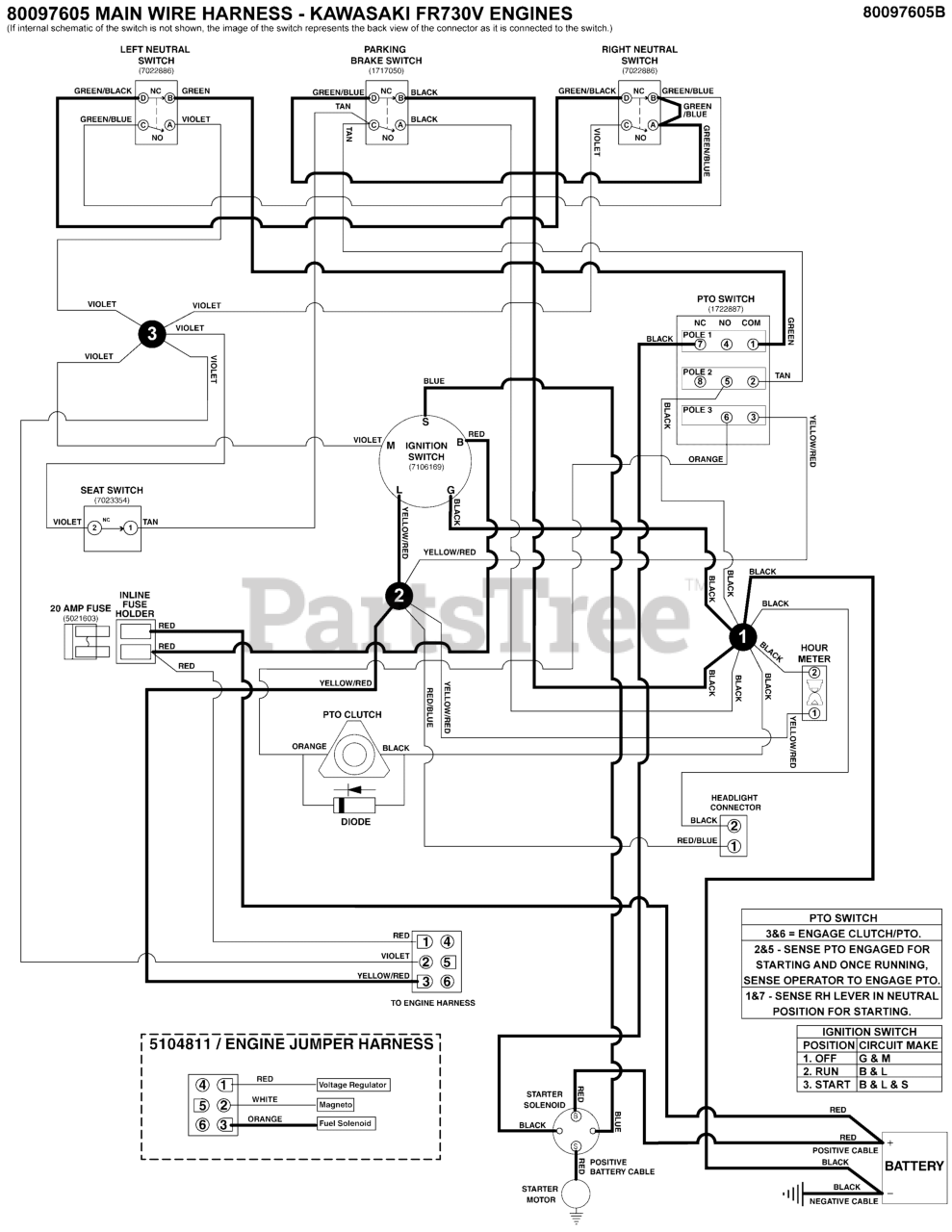

Electrical Schematic - Cranking Circuit - Kawasaki FR730V Parts Diagram

  • Title

80097605

Ferris 80097605

HARNESS, WIRING, XT MAIN (ZT)
(Superseded to 84006894)

$243.99

$

Usually ships in 2-12 days

0

7022886

Ferris 7022886

SWITCH, DP NO/NC SNAP-IN
(Superseded to 7022886YP)

$14.99

$

In Stock, Qty 20+

0

1717050

Ferris 1717050

SWITCH, PLUNGER, N.O./N.C.
(Superseded to 1717050SM)

$17.99

$

In Stock, Qty 20+

0

1722887

Ferris 1722887

SWITCH-PTO PUSH
(Superseded to 1722887SM)

$33.99

$

In Stock, Qty 20+

0

7106169

Ferris 7106169

SWITCH, IGNITION, DELTA, (3 POSITION)
(Superseded to 7106169YP)

$17.99

$

In Stock, Qty 20+

0

7023354

Ferris 7023354

SWITCH, SEAT
(Superseded to 7023354YP)

$12.99

$

In Stock, Qty 20+

0

5021603

Ferris 5021603

FUSE, ATO-20 (20 AMP)(SV)
(Superseded to 5021603SM)

$4.99

$

In Stock, only 2 left!

0

5104811

Ferris 5104811

WIRE HARNESS, JUMPER, KAWI
(Superseded to 5104811YP)

$18.99

$

Usually ships in 2-12 days

0
