500S (5902053) - Ferris 500S Series 61" Zero-Turn Mower, 25hp Briggs & Stratton Transmission Group - Suspension Parts Diagram

500S Series 61" Zero-Turn Mower, 25hp Briggs & Stratton

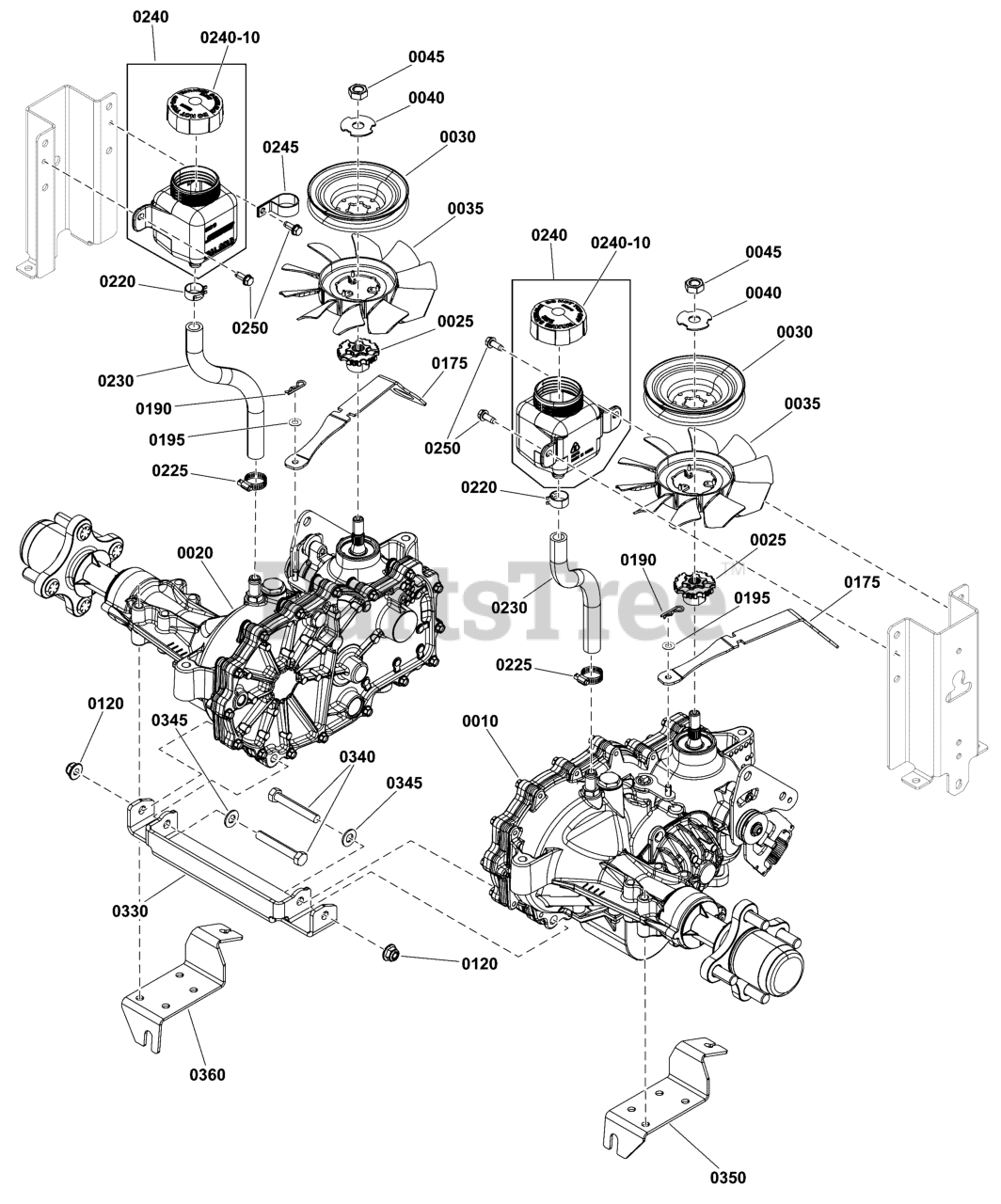

Transmission Group - Suspension Parts Diagram

  • Title

0010

Ferris 84008004

TRANSAXLE

Note: (Left side)(Refer to Note: *)

$1037.99

$

Usually ships in 2-12 days

0

0020

Ferris 84007997

TRANSAXLE

Note: (Right side)(Refer to Note: *)

$1037.99

$

Usually ships in 2-12 days

0

0025

Ferris 5107809

SPACER, Transmission, 17 Tooth Spline (HG-54759)
(Superseded to 84003847)

$7.99

$

Usually ships in 2-12 days

0

0030

Ferris 1759447

PULLEY, TRANSMISSION INPUT (4.50")
(Superseded to 1759447FS)

$23.99

$

Usually ships in 2-12 days

0

0035

Ferris 84007455

FAN

$28.99

$

Usually ships in 2-12 days

0

0040

Ferris 5102914

WASHER, ZT5400, SLOTTED
(Superseded to 5102914YP)

$3.99

$

In Stock, only 1 left!

0

0045

Ferris 5102916

NUT, ZT5400
(Superseded to 5102916YP)

Note: (Torque to 45 - 55 ft-lbs (61 - 75,6 Nm)

$3.49

$

In Stock, only 1 left!

0

0120

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

0175

Ferris 1759276A

VALVE, TOW (2800 SUSP) (BLACK)
(Superseded to 1759276AYP)

$14.99

$

Usually ships in 2-12 days

0

0190

Ferris 80003663

HAIRPIN.080 WIRE 1.19LG.25DIA,ZINC/CLEAR
(Superseded to 703430)

$3.49

$

In Stock, only 2 left!

0

0195

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

0220

Ferris 5025474

CLAMP, HOSE, .75 FREE DIA.
(Superseded to 5025474SM)

$3.49

$

Usually ships in 2-12 days

0

0225

Ferris 5021392

CLAMP, #6 HOSE, STAINLESS
(Superseded to 5021392SM)

$4.99

$

Usually ships in 2-12 days

0

0230

Ferris 5050857X10

HOSE, 1/2" PUSH-ON, 10.00"
(Superseded to 5050857X10FS)

$12.99

$

In Stock, only 1 left!

0

0240

Ferris 5100473

RESERVOIR, HYDRO OIL, 350 ML
(Superseded to 5100473SM)

Note: (Includes item # 0240-10.)

$40.99

$

Usually ships in 2-12 days

0

0240-10

Ferris 5100778X1

RESERVIOR CAP

$20.99

$

Usually ships in 2-12 days

0

0245

Ferris 5021500

CLAMP, VINYL INSULATED, 1.00
(Superseded to 5021500FS)

Note: (This clamp is mounted on the left side of the unit for Briggs & Stratton powered models.)

$4.49

$

Usually ships in 2-12 days

0

0250

Ferris 80004190

SCREW, Hex Washer Head, Thread Roll, 1/4-20 x 5/8
(Superseded to 703054)

$4.49

$

In Stock, Qty 5

0

0330

Ferris 1759172AA

NLA -BRKT,FRONT TRANS SUPPORT(2800)(BLK)
(Superseded to 1759172AYP)

$64.99

$

Usually ships in 2-12 days

0

0340

Ferris 5025013X20

BOLT, 3/8-16 X 2-1/2" GD5 CZ
(Superseded to 84007037)

$2.99

$

In Stock, only 3 left!

0

0345

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

0350

Ferris 80093636AA

BRKT, TRANSMISSION CABLES - LH (BLK)
(Superseded to 84006958)

$22.99

$

Usually ships in 2-12 days

0

0360

Ferris 80093959AA

BRKT, TRANSMISSION CABLES - RH (BLK)
(Superseded to 84006959)

$22.99

$

Usually ships in 2-12 days

0
