500S (5902053) - Ferris 500S Series 61" Zero-Turn Mower, 25hp Briggs & Stratton Lift Group Parts Diagram

500S Series 61" Zero-Turn Mower, 25hp Briggs & Stratton

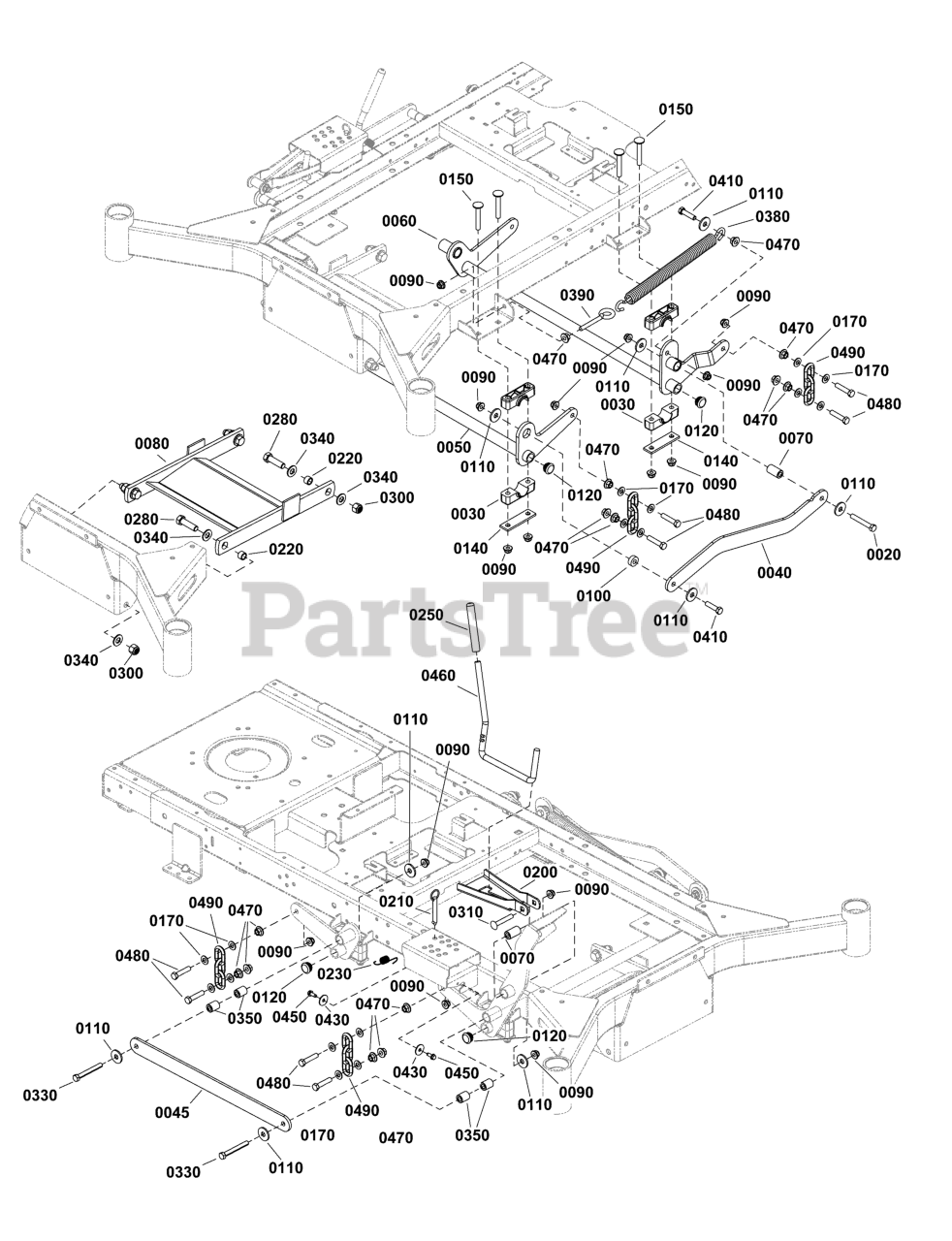

Lift Group Parts Diagram

  • Title

0020

Ferris 5025013X20

BOLT, 3/8-16 X 2-1/2" GD5 CZ
(Superseded to 84007037)

$2.99

$

In Stock, only 3 left!

0

0030

Ferris 5100634

PIVOT BLOCK, PLASTIC
(Superseded to 5100634SM)

$7.49

$

Usually ships in 2-12 days

0

0040

Ferris 80094608AA

LINKAGE, LIST ASSIST - LH, BLK
(Superseded to 84006925)

$29.99

$

Usually ships in 2-12 days

0

0045

Ferris 80094609AA

LINKAGE, LIFT ASSIST - RH, BLK

$

$

Currently unavailable

0050

Ferris 80092052AA

WELDMENT, MOWER LIFT - FOOTASSIST, BLK
(Superseded to 84006914)

$241.99

$

Usually ships in 2-12 days

0

0060

Ferris 80091744AA

WELDMENT, LIFT SHAFT ASSY REAR, BLK
(Superseded to 84006915)

$265.99

$

Usually ships in 2-12 days

0

0070

Ferris 1756612

BUSHING, DIFF. LOCK
(Superseded to 1756612YP)

$5.49

$

Usually ships in 2-12 days

0

0080

Ferris 80092234AA

WELD, PULLER BAR, XT-HOZ - BLK
(Superseded to 84006928)

$175.99

$

Usually ships in 2-12 days

0

0090

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

0100

Ferris 1667811

SPACER-0.390ID 0.90 OD 0.34 LG P'MTL YEL
(Superseded to 1667811SM)

$3.49

$

In Stock, Qty 20+

0

0110

Ferris 80022437

WASHER-0.375(0.44IDX1.250DX.12THK) ZC/CL
(Superseded to 1919384SM)

$5.49

$

In Stock, only 1 left!

0

0120

PLUG

$

$

Not available

0140

Ferris 5403925AA

PLATE, PIVOT BLOCK SUPPORT - BLK
(Superseded to 5403925AAFS)

$3.49

$

Usually ships in 2-12 days

0

0150

Ferris 1960615

CARRIAGE BOLT, 3/8-16 x 2-1/2
(Superseded to 1960615SM)

$5.49

$

In Stock, only 1 left!

0

0170

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

0200

Ferris 1758284AA

BRACKET, MOWER HOC STOP (BLACK)
(Superseded to 1758284AYP)

$18.99

$

Usually ships in 2-12 days

0

0210

Ferris 5103021

HITCH PIN, 3/8 X 2-1/2, COTTERLESS, CZ
(Superseded to 5103021YP)

$11.99

$

In Stock, only 1 left!

0

0220

Ferris 5020870

INSERT, Bearing
(Superseded to 5020870SM)

$5.49

$

In Stock, Qty 12

0

0230

Ferris 1758283

SPRING, EXTENSION
(Superseded to 1758283YP)

$6.99

$

In Stock, only 1 left!

0

0250

Ferris 5021880

GRIP, FOAM, .475 X 4.35 X .095
(Superseded to 5021880SM)

$5.99

$

Usually ships in 2-12 days

0

0280

Ferris 5025018X14

BOLT, 1/2-20 X 1-3/4" GD8 CZ
(Superseded to 5025018X14FS)

$2.99

$

In Stock, only 2 left!

0

0300

Ferris 5025098

NUT, Hex, Nylon Lock, 1/2-20
(Superseded to 5025098SM)

$5.99

$

In Stock, only 2 left!

0

0310

Ferris 7900009

RHSSNB, 3/8-16 X 2-1/4, GR5
(Superseded to 7900009SM)

$3.99

$

In Stock, only 1 left!

0

0330

Ferris 5025013X24

BOLT, 3/8-16 X 3" GD5 CZ
(Superseded to 5025013X24SM)

$3.99

$

In Stock, only 1 left!

0

0340

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 8

0

0350

Ferris 1733068

SPACER
(Superseded to 1733068SM)

$13.99

$

Usually ships in 2-12 days

0

0380

Ferris 5023355

SPRING-EXT, 1.00 ODX13.25LGX.177WR, BLK
(Superseded to 5023355SM)

$49.99

$

Usually ships in 2-12 days

0

0390

Ferris 5025429

EYEBOLT, 3/8-16 X 4, 2.13THRD, .75EYE, C
(Superseded to 5025429SM)

$6.49

$

Usually ships in 2-12 days

0

0410

Ferris 80004479

* CAPSCREW, Hex Head, 3/8-16 X 1-1/2, GR5
(Superseded to 703406)

$4.99

$

In Stock, only 1 left!

0

0430

Ferris 5025288

WASHER, 1/4" Fender
(Superseded to 5025288YP)

$3.99

$

In Stock, only 4 left!

0

0450

Ferris 80004190

SCREW, Hex Washer Head, Thread Roll, 1/4-20 x 5/8
(Superseded to 703054)

$4.49

$

In Stock, Qty 5

0

0460

Ferris 5105717

ROD, MOWER TRANSPORT RELEASE
(Superseded to 5105717YP)

$39.99

$

Usually ships in 2-12 days

0

0470

Ferris 5025128

NUT, 3/8-16 Hex Large Serrated Flange
(Superseded to 5025128SM)

$3.49

$

In Stock, only 2 left!

0

0480

Ferris 5025013X14

BOLT, 3/8-16 X 1-3/4" GD5 CZ
(Superseded to 5025013X14SM)

$3.99

$

In Stock, only 2 left!

0

0490

Ferris 5050878X3

CHAIN, 5/16" GD30, 3 LINKS
(Superseded to 5050878X3SM)

$8.49

$

In Stock, only 2 left!

0
