500S (5902052) - Ferris 500S Series 52" Zero-Turn Mower, 25hp Briggs & Stratton Electrical Group Parts Diagram

500S Series 52" Zero-Turn Mower, 25hp Briggs & Stratton

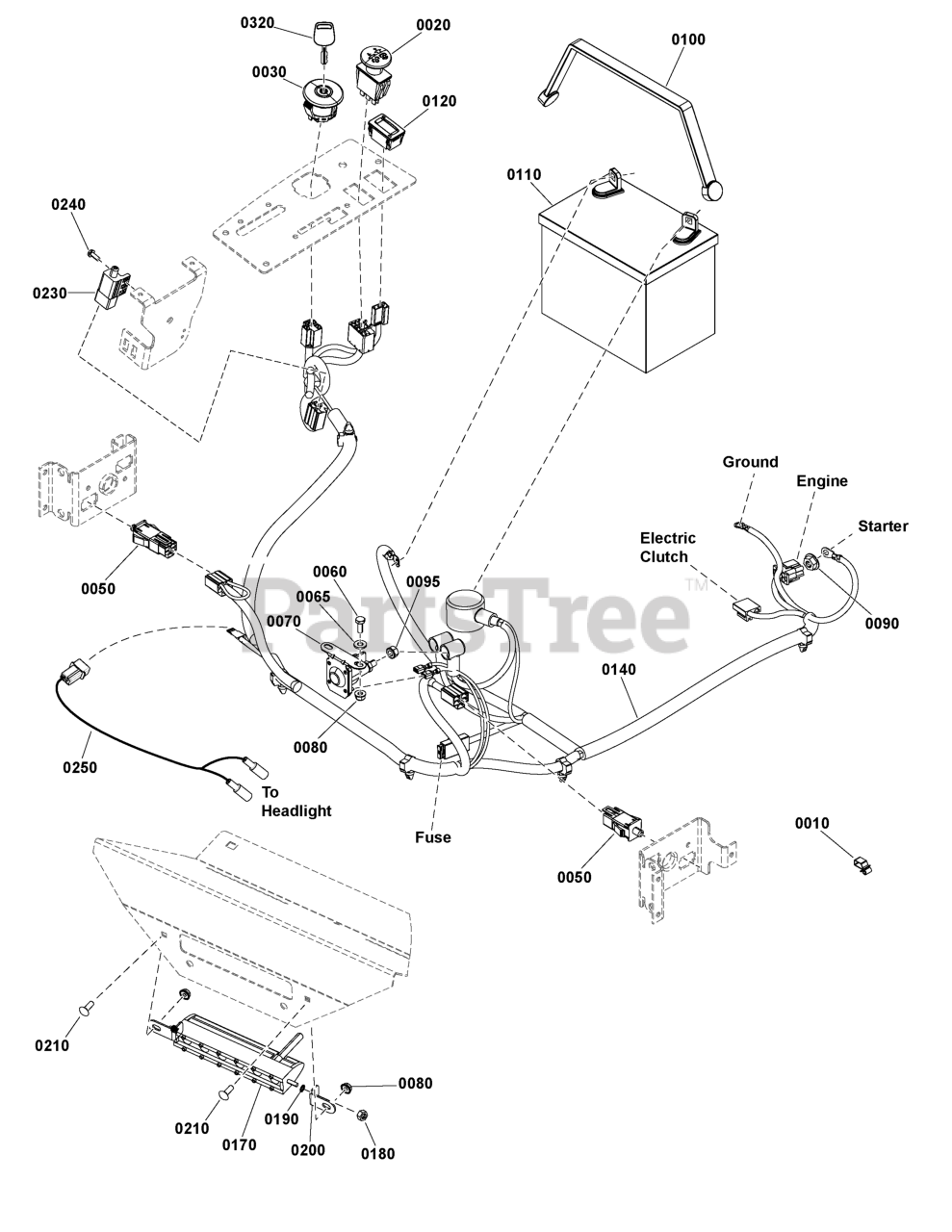

Electrical Group Parts Diagram

  • Title

0010

Ferris 2172434

CLIP, Wire
(Superseded to 2172434SM)

$4.99

$

Usually ships in 2-12 days

0

0020

Ferris 1722887

SWITCH-PTO PUSH
(Superseded to 1722887SM)

$33.99

$

In Stock, Qty 20+

0

0030

Ferris 7106169

SWITCH, IGNITION, DELTA, (3 POSITION)
(Superseded to 7106169YP)

$17.99

$

In Stock, Qty 20+

0

0050

Ferris 7022886

SWITCH, DP NO/NC SNAP-IN
(Superseded to 7022886YP)

$14.99

$

In Stock, Qty 20+

0

0060

HHCS, 1/4-20 X 0.625, GR5, ZINC/CLEAR

$

$

Not available

0065

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

0070

Ferris 1755381

SOLENOID, L-BRACKET, 2-SPADE
(Superseded to 1755381YP)

$24.99

$

In Stock, Qty 20+

0

0080

Ferris 5025391

NUT, 1/4-20 Hex Nylock Flange
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

0090

Ferris 80003921

NUT,1/4-20,KEPS,CONICAL WSHR,ZC/CL
(Superseded to 703061)

$3.49

$

In Stock, Qty 11

0

0095

Ferris 2860750

NUT, Hex Locking, KEPS, 5/16-24
(Superseded to 2860750SM)

$2.99

$

Usually ships in 2-12 days

0

0100

Ferris 1722009

STRAP, BATTERY, 14 LONG, Rubber
(Superseded to 1722009FS)

$9.99

$

Usually ships in 2-12 days

0

0110

BATTERY, 12 VOLT, 230 CCA

$

$

Not available

0120

Ferris 1731185

HOUR METER, Digital, No Alarms
(Superseded to 1731185SM)

$60.99

$

In Stock, only 2 left!

0

0140

Ferris 80097605

HARNESS, WIRING, XT MAIN (ZT)
(Superseded to 84006894)

Note: (Includes item # 0140-10.)

$243.99

$

Usually ships in 2-12 days

0

0140-10

Ferris 5021603

FUSE, ATO-20 (20 AMP)(SV)
(Superseded to 5021603SM)

Note: (Not illustrated.)

$4.99

$

In Stock, only 2 left!

0

0170

Ferris 5420644

HEADLIGHT ASSY - LED
(Superseded to 84006903)

$112.99

$

Usually ships in 2-12 days

0

0180

Ferris 5025672

NUT, HEX, M5X.8MM, NYLON INSERT

$

$

Not available

0190

Ferris 5025673

WASHER, 5MM, STAR, CZ

$4.49

$

Usually ships in 2-12 days

0

0200

Ferris 5107389AA

BRACKET, L HEADLIGHT MOUNT - BLK

$

$

Currently unavailable

0210

Ferris 80003518

BOLT,1/4-20X0.750,GR5,STD NECK,SQ,ZC/CL
(Superseded to 703575)

$3.99

$

In Stock, only 2 left!

0

0230

Ferris 1717050

SWITCH, PLUNGER, N.O./N.C.
(Superseded to 1717050SM)

$17.99

$

In Stock, Qty 20+

0

0240

Ferris 80005972

SCREW,#10-24X0.50,HEX WSHR,TORX,TT,ZC/CL
(Superseded to 704060)

$3.49

$

In Stock, Qty 9

0

0250

Ferris 80097608

HARNESS, HEADLIGHT JUMPER

$

$

Currently unavailable

0320

Ferris 7106170

BLISTER PACK, SNAP-IN KEY SWITCH U
(Superseded to 7106170FS)

$19.99

$

In Stock, only 1 left!

0
