5008 (1690019) - Simplicity Broadmoor 36" Lawn Tractor, 8hp Frame, Hood & Dash Group Parts Diagram

Broadmoor 36" Lawn Tractor, 8hp

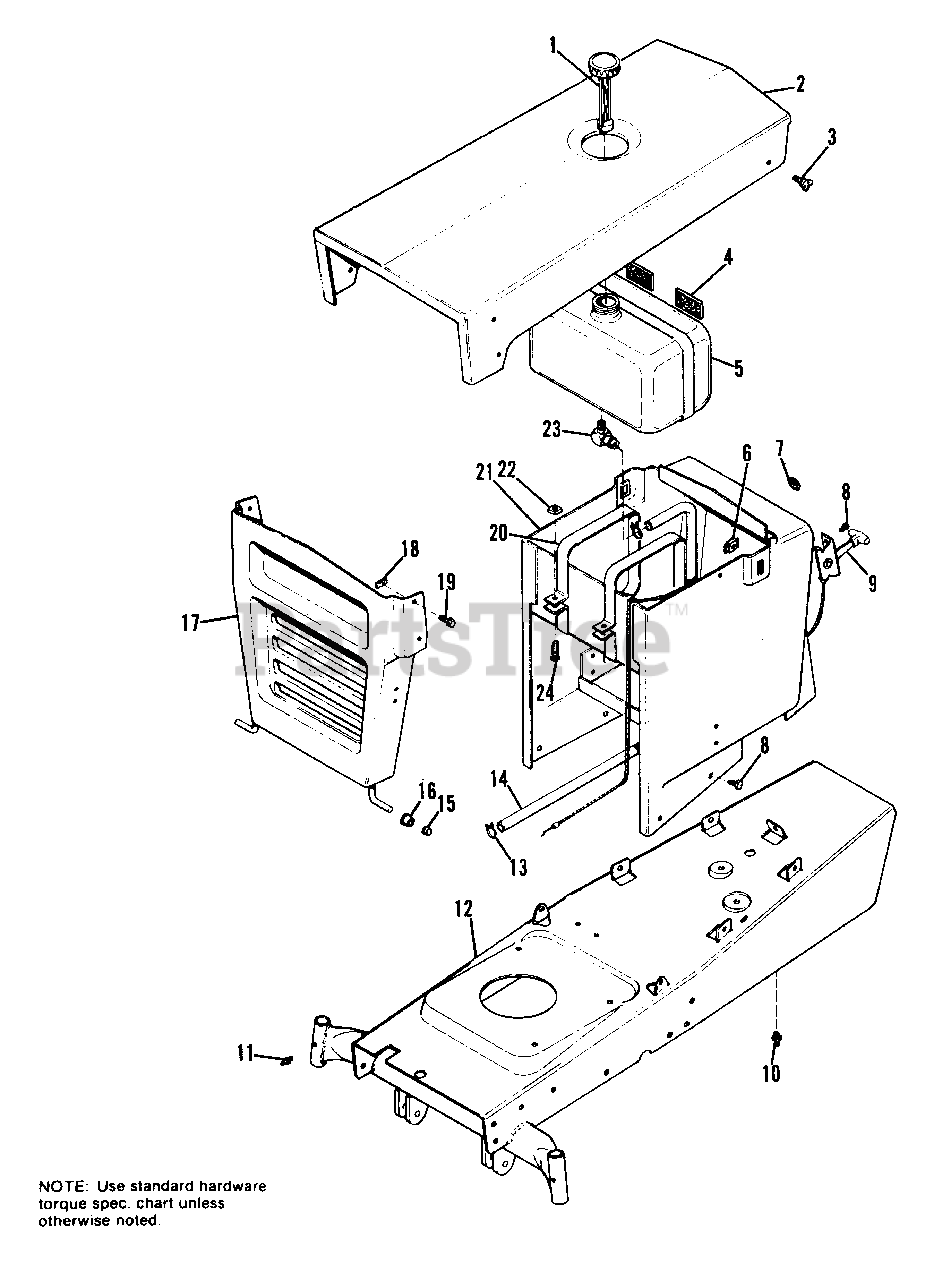

Frame, Hood & Dash Group Parts Diagram

  • Title

1

Simplicity 2156175SM

CAP, Fuel Tank

$31.99

$

In Stock, only 4 left!

0

2

Simplicity 1650756

HOOD

$

$

Not available

3

Simplicity 2828693

SCREW, Thumb

$

$

Not available

4

Simplicity 106582

GASKET, Felt

$

$

Not available

5

Simplicity 156174

TANK, Fuel

$

$

Not available

6

Simplicity 2830659

NUT, Retainer

$

$

Not available

7

Simplicity 2156319

BUTTON, Plug

$

$

Not available

8

Simplicity 2827428

SCREW, Hex, Taptite, 1/4-20 x 3/8

$

$

Not available

9

Simplicity 1650999

CONTROL, Throttle

$

$

Not available

10

Simplicity 2821133SM

FITTING, Grease
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

11

Simplicity 2814687

FlTTING, Grease

$

$

Not available

12

Simplicity 1650581

FRAME ASSY.

$

$

Not available

13

Simplicity 2154372

CLAMP, Hose

$

$

Not available

14

Simplicity 1718678SM

HOSE, Fuel

$

$

Not available

15

Simplicity 1960093SM

PUSHNUT
(Superseded to 703948)

$4.49

$

In Stock, Qty 20+

0

16

Simplicity 2118273SM

BUSHING

$3.49

$

Usually ships in 2-12 days

0

17

Simplicity 1650800

GRILLE ASSY.

$

$

Not available

18

Simplicity 2828705

J-NUT

$

$

Not available

19

Simplicity 2830594

SCREW, Hex, Flange, 1/4-20 x 3/4

$

$

Not available

20

Simplicity 156178

STRAP, Tank

$

$

Not available

21

Simplicity 1650819

DASH ASSY.

$

$

Not available

22

Simplicity 2830633

NUT, Square, 1/4-20

$

$

Not available

23

Simplicity 174640

FITTING, Elbow, 90ø

$

$

Not available

24

Simplicity 930534

SCREW, Machine, 1/4-20 x 1-1/2

$

$

Not available
