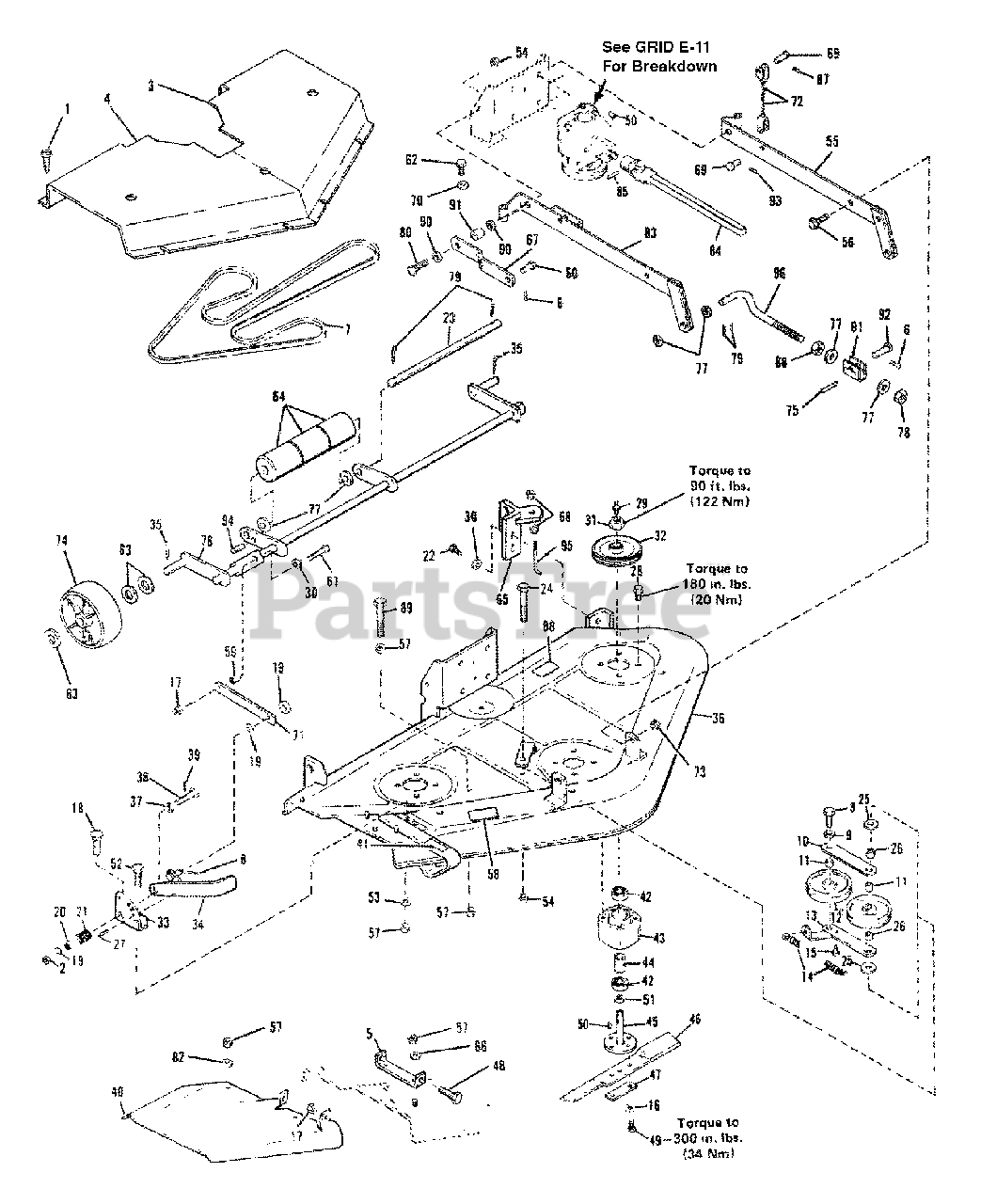

50048S - Troy-Bilt 48" Side-Discharge Mower Deck General Assembly Parts Diagram

48" Side-Discharge Mower Deck

General Assembly Parts Diagram

  • Title

1

MTD 1185750

Self Driving Screw, 10,24 x 5/8

$

$

Not available

2

MTD 1185496

Lock Nut, 1/2-13

Note: Common Hardware - Purchase Locally (Grade 5 where applicable)

$

$

Not available

3

Troy-Bilt 1742483

Belt Cover, LH

$

$

Currently unavailable

4

Troy-Bilt 1742482

Belt Cover, PH

$

$

Currently unavailable

5

Troy-Bilt 1728005

Hinge Bracket
(Superseded to 1728005001)

$

$

Not available

6

MTD 1723478

Spring Clip

$

$

Not available

7

MTD 1724943

V-Belt (137")

$

$

Not available

8

MTD 1724928

Capscrew, Hex Hill

$

$

Not available

9

Troy-Bilt 1100245

Lockwasher, 1/2
(Superseded to 936-0921)

Note: Common Hardware - Purchase Locally (Grade 5 where applicable)

$4.49

$

In Stock, only 2 left!

0

10

Troy-Bilt 1724926

Idler Arm

$

$

Currently unavailable

11

Troy-Bilt 1724927

Spacer

$

$

Not available

12

Troy-Bilt 1724925

Idler Pulley
(Superseded to 1752354)

$84.99

$

In Stock, only 1 left!

0

13

MTD 1724923

Idler Arm

$

$

Not available

14

Troy-Bilt 1724822

Extension Spring
(Superseded to 1746769)

$16.99

$

Usually ships in 3-6 days

0

15

MTD 1724924

Wear Button

$

$

Not available

16

Troy-Bilt 1100243

Lockwasher, 3/8
(Superseded to 936-0169)

Note: Common Hardware - Purchase Locally (Grade 5 where applicable)

$3.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 1733398

Lock Nut, 3/8-16
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 9

0

18

Troy-Bilt 1186098

Carriage Bolt, 5/16-18 x 3/4

Note: Common Hardware - Purchase Locally (Grade 5 where applicable)

$

$

Not available

19

Troy-Bilt 1107385

Flat Washer, 1/2
(Superseded to 936-0326)

Note: Common Hardware - Purchase Locally (Grade 5 where applicable)

$4.49

$

In Stock, only 2 left!

0

20

MTD 1715387

Spacer

$

$

Not available

21

MTD 1716583

Spring

$

$

Not available

22

Troy-Bilt 1100046

Hex Screw 3/8-16 x 1
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

23

Troy-Bilt 1738111

Axle Roller

$

$

Not available

24

MTD 1100080

Capscrew, 1/2-13 x 2-34

$

$

Not available

25

MTD 1724929

Thrust Washer

$

$

Not available

26

Troy-Bilt 1724931

Bearing Sleeve

$

$

Not available

27

MTD 1733103

Drive Pin, 5/16-18 x 3/4

$

$

Not available

28

Troy-Bilt 1724491

Flange Screw, 5/16-18 x 3/4
(Superseded to 710-1260A)

$3.99

$

In Stock, Qty 20+

0

29

Troy-Bilt 1185978

Grease Fitting

$

$

Currently unavailable

30

Troy-Bilt 1107383

Flat Washer 3/8
(Superseded to 736-3050)

Note: Common Hardware - Purchase Locally (Grade 5 where applicable)

$4.49

$

In Stock, Qty 16

0

31

Troy-Bilt 1185093

Locknut, 3/4-16
(Superseded to 1762168)

Note: Common Hardware - Purchase Locally (Grade 5 where applicable)

$17.99

$

Usually ships in 3-6 days

0

32

Troy-Bilt 1727555

Blade Sheave
(Superseded to 1752307)

$103.99

$

In Stock, only 1 left!

0

33

Troy-Bilt 1724843

Quadrant

$

$

Currently unavailable

34

Troy-Bilt 1731550

Handle Assembly

$

$

Currently unavailable

35

Troy-Bilt 1100350

Cotter Pin. 1/8 x 1
(Superseded to 914-0115)

Note: Common Hardware - Purchase Locally (Grade 5 where applicable)

$3.99

$

In Stock, Qty 20+

0

36

Troy-Bilt 1744901

Mower Base Assembly

Note: Serial Numbers - 0100101 thru 0199399

$

$

Currently unavailable

Troy-Bilt 1748485

Mower Base w/Decals

Note: (Incl. No. 58)

$

$

Currently unavailable

37

Troy-Bilt 1890234

Flat Washer, 1/2
(Superseded to GW-20546)

Note: Common Hardware - Purchase Locally (Grade 5 where applicable)

$

$

Not available

38

MTD 1731547

Special Screw

$

$

Not available

39

Troy-Bilt 1185256

Roll Pin, 3/16 x 7/8

$

$

Currently unavailable

40

Troy-Bilt 1740951

Discharge Chute

$

$

Currently unavailable

41

MTD 1729037

Decal, Cutting Line

$

$

Not available

42

Troy-Bilt 1185828

Bell Bearing

$46.99

$

Usually ships in 3-6 days

0

43

Troy-Bilt 1724029

Spindle Housing

$176.99

$

Usually ships in 3-6 days

0

44

Troy-Bilt 1724033

Spacer
(Superseded to 1746869)

$19.99

$

In Stock, only 2 left!

0

45

Troy-Bilt 1742606

Shaft Assembly
(Superseded to 1742625)

$333.99

$

Usually ships in 3-6 days

0

46

Troy-Bilt 1738571

Blade
(Superseded to 1772145)

$43.99

$

Usually ships in 3-6 days

0

47

MTD 1724051

Plate

$

$

Not available

48

Troy-Bilt 1100913

Hex Screw, 5/8-16 x 7/8
(Superseded to 710-3001)

Note: Common Hardware - Purchase Locally (Grade 5 where applicable)

$7.49

$

In Stock, Qty 9

0

49

Troy-Bilt 1100006

Capscrew 3/8-24 x 1

Note: Common Hardware - Purchase Locally (Grade 5 where applicable)

$

$

Currently unavailable

50

Troy-Bilt 1104486

Woodruff Key 3/16 x 3/4

$

$

Currently unavailable

51

MTD 1740627

Flat Washer. Special

$

$

Not available

52

Troy-Bilt 7100044

Hex Capscrew, 5/16-18 x 3/4

Note: Common Hardware - Purchase Locally (Grade 5 where applicable)

$

$

Currently unavailable

53

Troy-Bilt 1100255

Flat Washer, 5/16
(Superseded to 736-0262)

Note: Common Hardware - Purchase Locally (Grade 5 where applicable)

$3.99

$

In Stock, Qty 20+

0

54

Troy-Bilt 1734514

Lock Nut. 1/2-13
(Superseded to 712-3022)

$3.99

$

In Stock, Qty 20+

0

55

Troy-Bilt 1746811

Support Assembly LH

$

$

Currently unavailable

56

Troy-Bilt 1186347

Flange Screw 3/8-16 x 1
(Superseded to 710-04042)

Note: Common Hardware - Purchase Locally (Grade 5 where applicable)

$4.99

$

In Stock, only 2 left!

0

57

Troy-Bilt 1732499

Top Locknut, 5/16-16
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

58

Troy-Bilt 1745193

Caution Decal
(Superseded to 1739687)

$7.49

$

Usually ships in 3-6 days

0

59

MTD 1738160

Spacer

$

$

Not available

60

MTD 1746208

Clevis Pin

$

$

Not available

61

Troy-Bilt 1100047

Capscrew, W8-16 x 1-1/2
(Superseded to 710-0520)

Note: Common Hardware - Purchase Locally (Grade 5 where applicable)

$4.49

$

In Stock, Qty 5

0

62

Troy-Bilt 1166351

Flange Screw 3/8-16 x 2

Note: Common Hardware - Purchase Locally (Grade 5 where applicable)

$

$

Currently unavailable

63

Troy-Bilt 1107386

Flat Washer, 5/8
(Superseded to 736-0237)

Note: Common Hardware - Purchase Locally (Grade 5 where applicable)

$4.49

$

In Stock, Qty 20+

0

64

Troy-Bilt 1747107

Roller
(Superseded to 1765851)

$22.99

$

Usually ships in 3-6 days

0

65

Troy-Bilt 1744300

Shaft Support Assembly

Note: Serial Numbers - 0100101 thru 0199399

$

$

Currently unavailable

MTD 1748097

Shaft Support Assembly

Note: Serial Numbers - 0100101 thru 0299999

$

$

Not available

66

Troy-Bilt 1107382

Flat Washer 5/16
(Superseded to 936-0275)

Note: Common Hardware - Purchase Locally (Grade 5 where applicable)

$

$

Not available

67

MTD 1746169

Drag Link

$

$

Not available

68

Troy-Bilt 1166508

Jam Nut 3/8-16

Note: Common Hardware - Purchase Locally (Grade 5 where applicable)

$

$

Currently unavailable

69

Troy-Bilt 1112587

Clevis Pin

Note: Common Hardware - Purchase Locally (Grade 5 where applicable)

$4.99

$

Usually ships in 3-6 days

0

70

Troy-Bilt 1186231

Hex Nut. 3/8-16
(Superseded to 912-3017)

Note: Common Hardware - Purchase Locally (Grade 5 where applicable)

$4.49

$

In Stock, Qty 20+

0

71

Troy-Bilt 1738369

Link, Connecting

$

$

Currently unavailable

72

Troy-Bilt 1728672

Lift Cable
(Superseded to 1728672P)

$

$

Not available

73

Troy-Bilt 1186393

Flange Nut 3/8-16

Note: Common Hardware - Purchase Locally (Grade 5 where applicable)

$3.49

$

In Stock, only 2 left!

0

74

Troy-Bilt 1740669

Gage Wheel

$

$

Currently unavailable

75

Troy-Bilt 1185597

Roll Pin
(Superseded to 715-0150)

$4.49

$

In Stock, Qty 12

0

76

Troy-Bilt 1744294

Pivot Shaft Assembly

Note: Serial Number - 0100101 thru 0199399

$

$

Currently unavailable

MTD 1748077

Pivot Shaft Assembly

Note: Serial Number - 0100101 thru 0299999

$

$

Not available

77

Troy-Bilt 1185830

Flat Washer
(Superseded to 736-0188)

$4.49

$

In Stock, Qty 20+

0

78

Troy-Bilt 1110113

Hex Nut 3/4-10
(Superseded to 712-3107)

$11.99

$

Usually ships in 3-6 days

0

79

MTD 1100351

Cotter Pin, 1/6 x 1-1/4

Note: Common Hardware - Purchase Locally (Grade 5 where applicable)

$

$

Not available

80

MTD 1100065

Hex Screw 1/2-13 x 1-3/4

Note: Common Hardware - Purchase Locally (Grade 5 where applicable)

$

$

Not available

81

MTD 1746171

Hitch Bracket
(Superseded to 1746171001)

$

$

Not available

82

Troy-Bilt 1713233

Flat Washer
(Superseded to 736-0362)

$4.49

$

In Stock, only 4 left!

0

83

MTD 1746812

Support Assembly RH

$

$

Not available

84

Troy-Bilt 1744906

Drive Assembly
(Superseded to 1744906001)

$

$

Not available

85

MTD 1185376

Roll Pin. 3/16 x 1-1/2

$

$

Not available

86

Troy-Bilt 1188236

Hex Nut 3/4-10

$

$

Currently unavailable

87

Troy-Bilt 1703017

Cotter Spring

$

$

Currently unavailable

88

Troy-Bilt 1740228

Set Drive Decal

$

$

Currently unavailable

89

MTD 1100808

Hex Screw 5/16-18 x 1-1/4

Note: Common Hardware - Purchase Locally (Grade 5 where applicable)

$

$

Not available

90

Troy-Bilt 1100257

Flat Washer, 1/2

Note: Common Hardware - Purchase Locally (Grade 5 where applicable)

$

$

Not available

91

MTD 1746172

Spacer

$

$

Not available

92

Troy-Bilt 1746200

Clovis Pin
(Superseded to 711-0299)

$36.99

$

Usually ships in 3-6 days

0

93

Troy-Bilt 1100346

Cotter Pin, 3/32 x 3/4
(Superseded to 914-0507)

Note: Common Hardware - Purchase Locally (Grade 5 where applicable)

$4.49

$

In Stock, Qty 17

0

94

MTD 1177625

Drive Pin. 1/8 x 3/4

$

$

Not available

95

MTD 1742328

Hook

$

$

Not available

96

Troy-Bilt 1746170

Hitch Link

$

$

Currently unavailable

NI

MTD 1736796

Dark Green Spray Paint 13 oz.

$

$

Not available
