5000 - Weed Eater String Trimmer POWER HOE ASSEMBLY Parts Diagram

String Trimmer

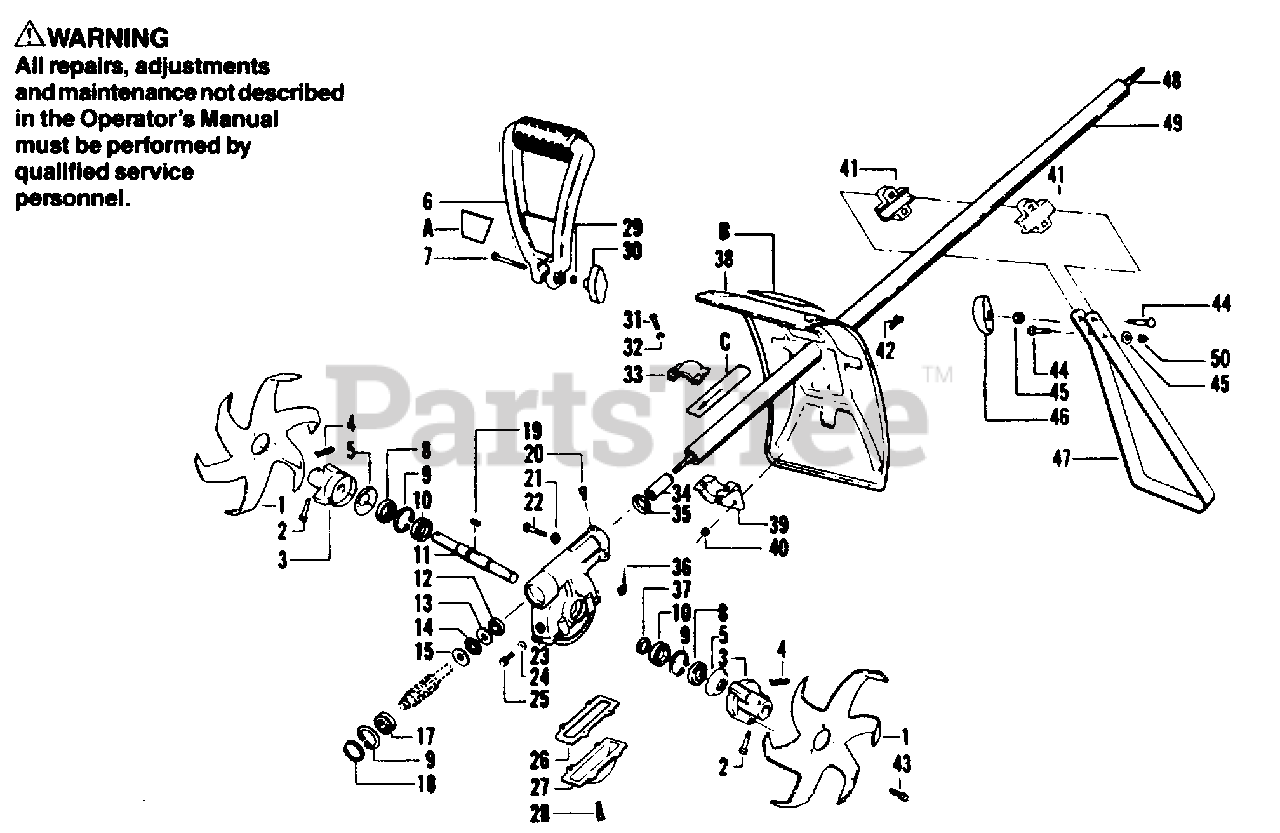

POWER HOE ASSEMBLY Parts Diagram

  • Title

1

Poulan 530092237

Tine

$

$

Not available

2

Poulan 530092286

Pin - Tine

$2.49

$

Usually ships in 3-10 days

0

3

Poulan 530092285

HUB P142-303-7 X

$

$

Not available

Poulan 920092285

SCREW

$

$

Not available

4

Poulan 530092287

Clip - Tine Shaft

$

$

Not available

5

Poulan 530093136

Shield - Grass

$4.99

$

Usually ships in 3-10 days

0

6

Poulan 530010618

Handle
(Superseded to 530069496)

$

$

Not available

7

Poulan 530092061

Bolt - #1/4 - 20 x 1-3/4" Hex Hd. - Handle

$

$

Not available

8

Poulan 530092284

Oil Seal - Tine Shaft

$

$

Not available

9

Poulan 530092291

Retaining Ring

$

$

Not available

10

Poulan 530092282

Bearing - Tine Shaft

$

$

Not available

11

Poulan 530092279

Shaft - Tine

$

$

Not available

12

Poulan 530092296

Bearing - Worm Gear - Upper

$

$

Not available

13

Poulan 530092295

Thrust Collar - Worm Gear

$

$

Not available

14

Poulan 530092294

Bearing - Worm Gear, Needle

$

$

Not available

15

Poulan 530347987

Washer - Worm Gear
(Superseded to 530016030)

$3.99

$

Usually ships in 3-10 days

0

17

Poulan 530092292

Bearing - Worn Gear, Lower

$

$

Not available

18

Poulan 530092289

Plug - Worm Gear

$

$

Not available

19

Poulan 530092281

Key - Tine Shaft

$

$

Not available

20

Poulan 530092309

Bolt - Gear Housing/Shaft - 6 x 12mm

$

$

Not available

21

Poulan 530092278

Washer - Gear Housing Bolt

$

$

Not available

22

Poulan 530092277

Bolt - Gear Housing

$

$

Not available

23

Poulan 530092267

Gear Box Ass'y (Inc.2-5, 8-28, 34-37, and Gears)

$

$

Not available

24

Poulan 530092275

Washer - Grease Plug

$

$

Not available

25

Poulan 530092274

Bolt - Grease Plug

$

$

Not available

26

Poulan 530092272

Gasket - Gear Housing

$

$

Not available

27

Poulan 530092314

Gear Housing Cover

$

$

Not available

28

Poulan 530092273

Screw - Gear Housing - 5 x 14mm

$

$

Not available

29

Poulan 530015149

Washer - Handle - 1/4mm

$4.99

$

In Stock, only 3 left!

0

30

Poulan 530092059

Knob - Handle

$9.99

$

Usually ships in 3-10 days

0

31

Poulan 530092302

Screw - Bracket/Shaft - 5 x 14mm

$

$

Not available

32

Poulan 530094449

Washer - Bracket/Shaft - 5mm

$

$

Not available

33

Poulan 530092301

Upper Bracket

$

$

Not available

34

Poulan 530092298

CPLG P142-115-2 X OTHE

$9.99

$

Usually ships in 3-10 days

0

Poulan 920092298

SCREW KAAZ #

$3.99

$

Usually ships in 3-10 days

0

35

Poulan 530092297

Oil - Seal

$

$

Not available

36

Poulan 530092308

Washer - Fiber

$

$

Not available

37

Poulan 530092288

Spacer - Tine Shaft

$

$

Not available

38

Poulan 530092271

Hood

$17.99

$

Usually ships in 3-10 days

0

39

Poulan 530092299

Lower Bracket - 5mm

$

$

Not available

40

Poulan 530092307

Nut - Bracket / Hood

$

$

Not available

41

Poulan 530093874

Clamp - Drag Stake

$

$

Not available

42

Poulan 530092304

Screw w/Washers - Bracket / Hood 5 x 14mm

$

$

Not available

43

Poulan 530092309

Bolt with Lockwasher - Tine - 6 x 12mm

$

$

Not available

44

Poulan 530015567

Bolt - Clamp -#5/16 - 18 x 2"

$

$

Not available

45

Poulan 530001717

Washer - Flat - Clamp

$3.99

$

In Stock, only 1 left!

0

46

Poulan 530091339

Knob - Clamp

$

$

Not available

47

Poulan 530093873

Drag Stake

$

$

Not available

48

Poulan 530092317

Drive Shaft

$

$

Not available

49

Poulan 530093135

Drive Shaft Housing Assembly

$

$

Not available

50

Poulan 530015111

Nut - Jam -#5/16 - 18

$

$

Not available

A

Poulan 530026225

Decal - Assist Handle

$

$

Not available

B

Poulan 530025324

Decal - Hood

$

$

Not available

C

Poulan 530026230

Decal - Hood Location (Not a serviceable part)

$

$

Not available

Poulan 530060802

Carton Model 5000 (Not a serviceable part)

$

$

Not available

Poulan 530060624

Carton Model 5500 (Not a serviceable part)

$

$

Not available

Poulan 530066260

Operator's Manual Type 1 Model 5000

$

$

Not available

Poulan 530066503

Operator's Manual Type 2 Model 5000

$

$

Not available

Poulan 530066064

Operator's Manual Model 5500

$

$

Not available
