5000 - Troy-Bilt Pony Junior Rear-Tine Tiller (SN: M1001 - M1273) MAIN SHAFT ASSEMBLY Parts Diagram

Pony Junior Rear-Tine Tiller

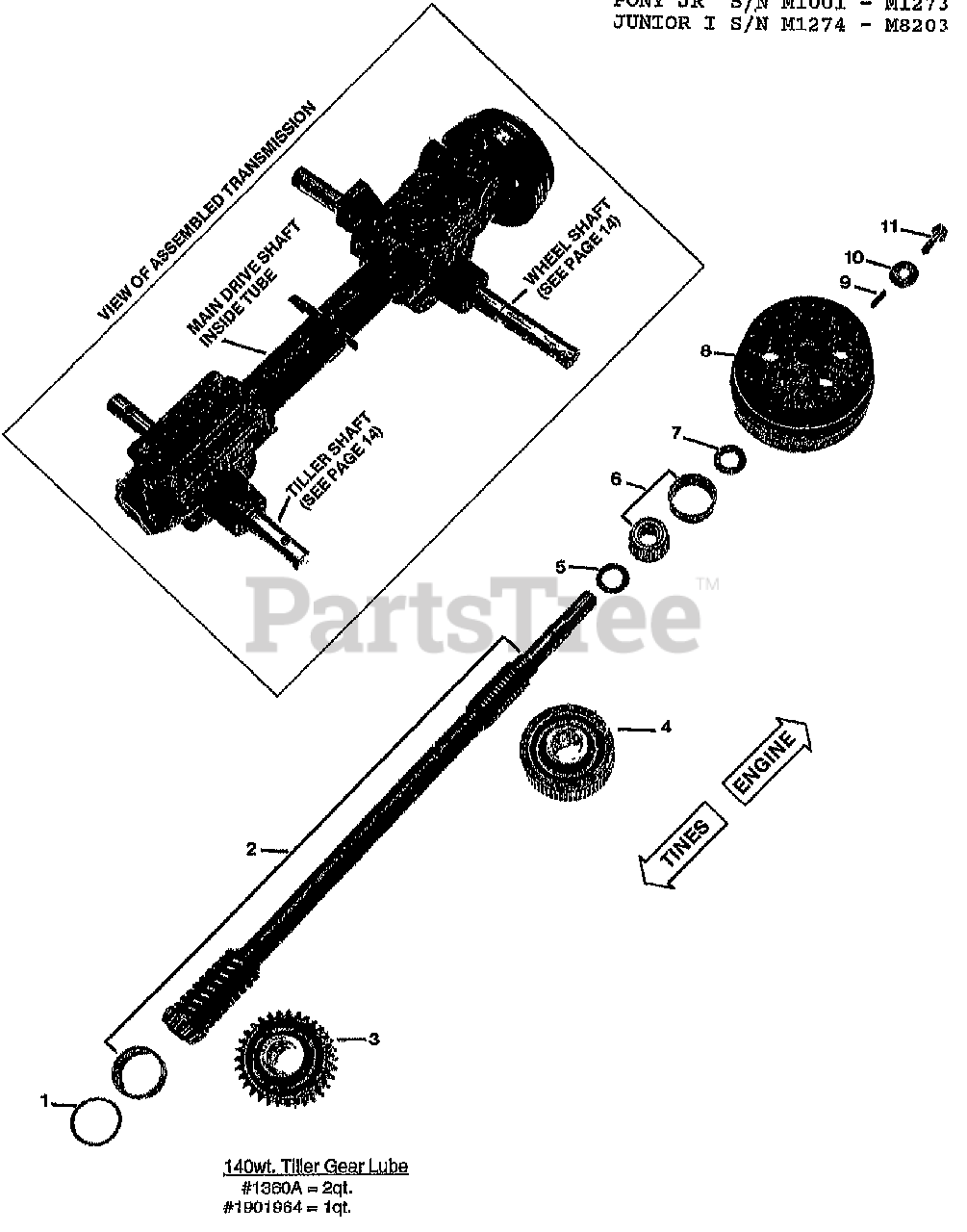

MAIN SHAFT ASSEMBLY Parts Diagram

  • Title

1

Troy-Bilt 1224-1

SHIM-1.75X1.5X.01
(Superseded to 736-04308)

$4.49

$

In Stock, Qty 20+

0

1

Troy-Bilt 1224-2

SHIM-1.75X1.5X.03
(Superseded to 736-04307)

$4.49

$

In Stock, only 1 left!

0

1

Troy-Bilt 1224-3

SHIM-1.75X1.5X.005
(Superseded to 736-04306)

$4.49

$

In Stock, Qty 20+

0

Troy-Bilt 1325C

SHIM SET-DRIVESHAFT-HORSE
(Superseded to GW-1325C)

$15.99

$

In Stock, only 2 left!

0

2

Troy-Bilt 1899

KIT-DRIVESHAFT JR

$

$

Currently unavailable

3

MTD 50042

GEAR-WORM BRONZE MACH (Tiller Drive)

$

$

Not available

4

Troy-Bilt 50041

GEAR-WORM 61 TEETH MACH (Wheel Drive)

$

$

Currently unavailable

5

Troy-Bilt 50043

WASHER-#1.25X.75X.06
(Superseded to 736-04304)

$4.49

$

In Stock, Qty 12

0

6

Troy-Bilt 1714

KIT-BRG CONE & RACE-DRIVESHAFT
(Superseded to 941-0107)

$47.99

$

In Stock, Qty 17

0

7

Troy-Bilt 50027

WASHER-SHLDR HARDENED 11/16""I.D. x 11/4" O. D. (Thrust external, hardened)
(Superseded to GW-50027)

$6.99

$

In Stock, Qty 7

0

8

Troy-Bilt 50021

PULLEY-TRANS MACH (Transmission drive, 2 belt grooves

$

$

Currently unavailable

9

Troy-Bilt 9356

KEY-.188 SQ X .75 (Transmission pulley to drive shaft)

$

$

Currently unavailable

10

Troy-Bilt 50076

WASHER-.827X.331X.098

$

$

Currently unavailable

11

Troy-Bilt 9799

SCR-FLHH 5/16-24 X .75 ZP(Pulley to drive shaft)

$

$

Currently unavailable

Troy-Bilt 1360A

OIL (1901964) 2 QT 140WT

$

$

Currently unavailable

Troy-Bilt 1901964

OIL-GEAR 1 QT 140WT

$

$

Currently unavailable
