5000 - Troy-Bilt Pony Junior Rear-Tine Tiller (SN: M1001 - M1273) HANDLE BARS, SHIFT & THROTTLE Parts Diagram

Pony Junior Rear-Tine Tiller

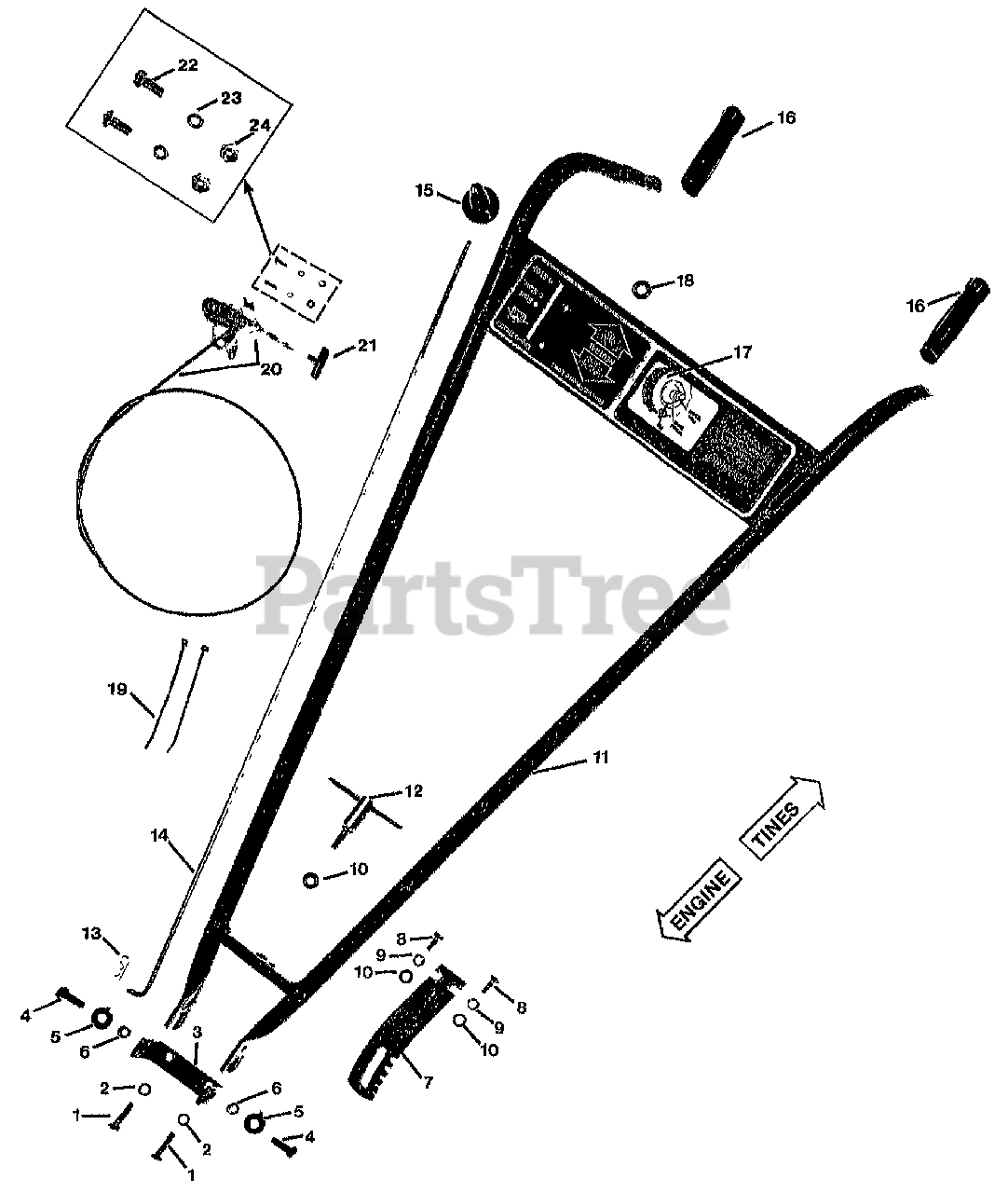

HANDLE BARS, SHIFT & THROTTLE Parts Diagram

  • Title
1

MTD 1100808

SCR-HH 5/16-18X1.25 G5ZP

$

$

Not available

2

Troy-Bilt 1100242

WASHER-LK .312 ZP
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 50051

BRKT-HANDLEBAR PIVOT

$

$

Currently unavailable

4

Troy-Bilt 1100046

SCR-HH 3/8-16X1.0 G5 ZP
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 50061

WASHER-TAB #

$

$

Currently unavailable

6

Troy-Bilt 9837

NUT-LOCK 3/8-16 NYLON ZP
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 9

0

7

Troy-Bilt 50060

PLATE-HANDLEBAR ADJUST

$

$

Currently unavailable

8

Troy-Bilt 1100046

SCR-HH 3/8-16X1.0 G5 ZP
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 1100243

WASHER-LK .375 @ DEPL
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 9903

WASHER-1.0X.438X.104 ZP

$

$

Currently unavailable

11

Troy-Bilt 50181

ASSM-HANDLEBAR REPLACE

$

$

Currently unavailable

12

Troy-Bilt 50062

ASSM-CLAMP

$

$

Currently unavailable

13

Troy-Bilt 9338

PIN-CLIP .08
(Superseded to 714-04048)

$8.49

$

In Stock, only 2 left!

0

14

Troy-Bilt 50108

ASSM-DRIVE CONTROL ROD

$

$

Currently unavailable

15

Troy-Bilt 9208

KNOB-DRIVE CNTRL ROD

$

$

Currently unavailable

16

Troy-Bilt 9471

GRIPS-HANDLEBAR

$

$

Currently unavailable

17

Troy-Bilt 50194

DECAL-CONTROL PANEL

$

$

Currently unavailable

18

Troy-Bilt 9211

GROMMET-PLASTIC

$

$

Currently unavailable

19

Troy-Bilt 9202

TIE-RED
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

20

MTD 50118

CABLE-THROTTLE & KNOB

$

$

Not available

21

Troy-Bilt 9212

KNOB-THROTTLE CABLE
(Superseded to 731-0108)

$9.49

$

In Stock, only 2 left!

0

22

Troy-Bilt 1114748

SCR-RH M10-32X.5 MACH

$5.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 1100240

WASHER-LK M10

$

$

Not available

24

Troy-Bilt 1186208

NUT-HH M10-32X.125

$6.49

$

Usually ships in 3-6 days

0
