5000/72R (5900204) - Ferris 72" Rear-Discharge Mower Deck (SN: 1210 & Above) 72" Mower Deck - Belt, Pulleys & Idler Arm Parts Diagram

72" Rear-Discharge Mower Deck

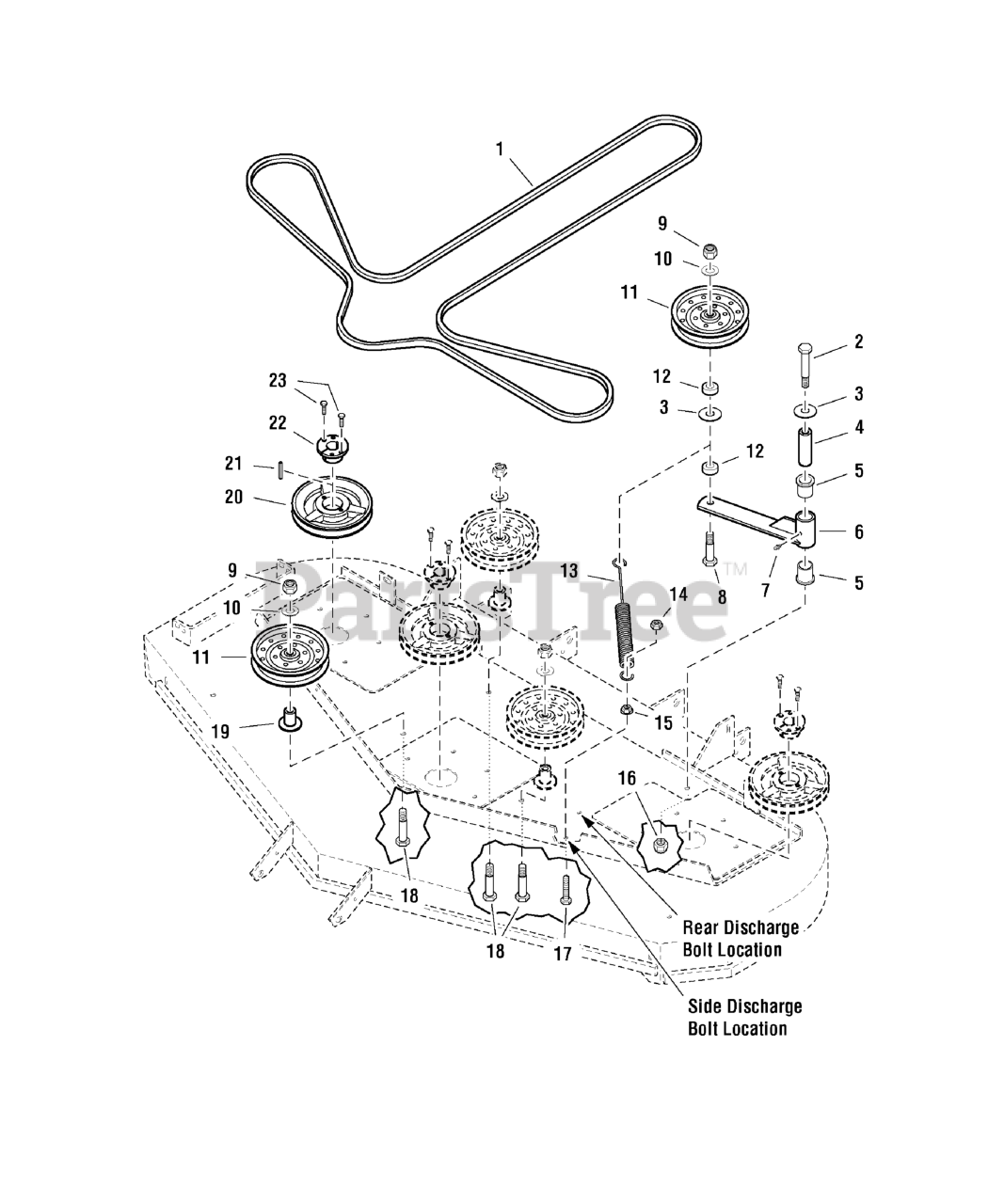

72" Mower Deck - Belt, Pulleys & Idler Arm Parts Diagram

  • Title

1

Ferris 5022439

BELT

$153.99

$

Usually ships in 2-12 days

0

2

Ferris 5025017X36

BOLT, 1/2-13 x 4-1/2
(Superseded to 5025017X36SM)

$6.49

$

Usually ships in 2-12 days

0

3

Ferris 5025150

WASHER, 1/2" USS
(Superseded to 5025150SM)

$3.99

$

Usually ships in 2-12 days

0

4

Ferris 5045022

SPACER, .52 x 1.00 x 3.50
(Superseded to 5045022SM)

$24.99

$

In Stock, only 2 left!

0

5

Ferris 5021541

BUSHING, FLANGE
(Superseded to 5021541SM)

$9.99

$

In Stock, Qty 18

0

6

Ferris 5020095

GREASE FITTING
(Superseded to 5020095SM)

$3.99

$

In Stock, only 3 left!

0

7

Ferris 5045019B

IDLER ARM
(Superseded to 5060001)

$85.99

$

Usually ships in 2-12 days

0

8

Ferris 5025018X24

BOLT, 1/2-20 x 3
(Superseded to 5025018X24SM)

$4.99

$

Usually ships in 2-12 days

0

9

Ferris 5025098

NUT, Hex, Nylon Lock, 1/2-20
(Superseded to 5025098SM)

$5.99

$

In Stock, only 2 left!

0

10

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 8

0

11

Replace with: Pulley #5104717 & Debris Shield #5105145

Note: *If not present, order 5025158 - washer and 5101103 - shield.

$

$

Not available

12

Ferris 5045023

SPACER, .52 x 1.00 x .44
(Superseded to 5045023SM)

$6.49

$

In Stock, only 1 left!

0

13

Ferris 5023340

SPRING, Extension, Swivel End
(Superseded to 5023340SM)

$36.99

$

In Stock, only 1 left!

0

14

Ferris 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

15

Ferris 5025128

NUT, 3/8-16 Hex Serrated Flange
(Superseded to 5025128SM)

$3.49

$

In Stock, only 2 left!

0

16

Ferris 5025056

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 5025056FS)

$4.49

$

In Stock, only 1 left!

0

17

Ferris 5025058X14

BOLT, 3/8-16 x 1-3/4 TFL

$

$

Currently unavailable

18

Ferris 5025018X28

BOLT, 1/2-20 x 3-1/2
(Superseded to 5025018X28SM)

$4.49

$

In Stock, Qty 5

0

19

Ferris 5045024B

IDLER PULLEY MOUNT
(Superseded to 5045024BFS)

$43.99

$

Usually ships in 2-12 days

0

20

Ferris 5022794

PULLEY, Spindle
(Superseded to 5022794FS)

$97.99

$

In Stock, only 1 left!

0

21

Ferris 5022726

KEY, 1/4 SQ. X 1-1/2
(Superseded to 5022726YP)

$4.99

$

In Stock, only 2 left!

0

22

Ferris 5020819

BUSHING, Tapered Hub
(Superseded to 5020819SM)

$26.99

$

In Stock, Qty 5

0

23

Ferris 5025010X8

BOLT, 1/4-20 X 1" GD5 CZ
(Superseded to 5025010X8SM)

$3.99

$

In Stock, only 2 left!

0
