5000/61R (5900201) - Ferris 61" Rear-Discharge Mower Deck (SN: 1210 & Above) 61" Mower Deck - Pulleys, Belt & Idler Arm Parts Diagram

61" Rear-Discharge Mower Deck

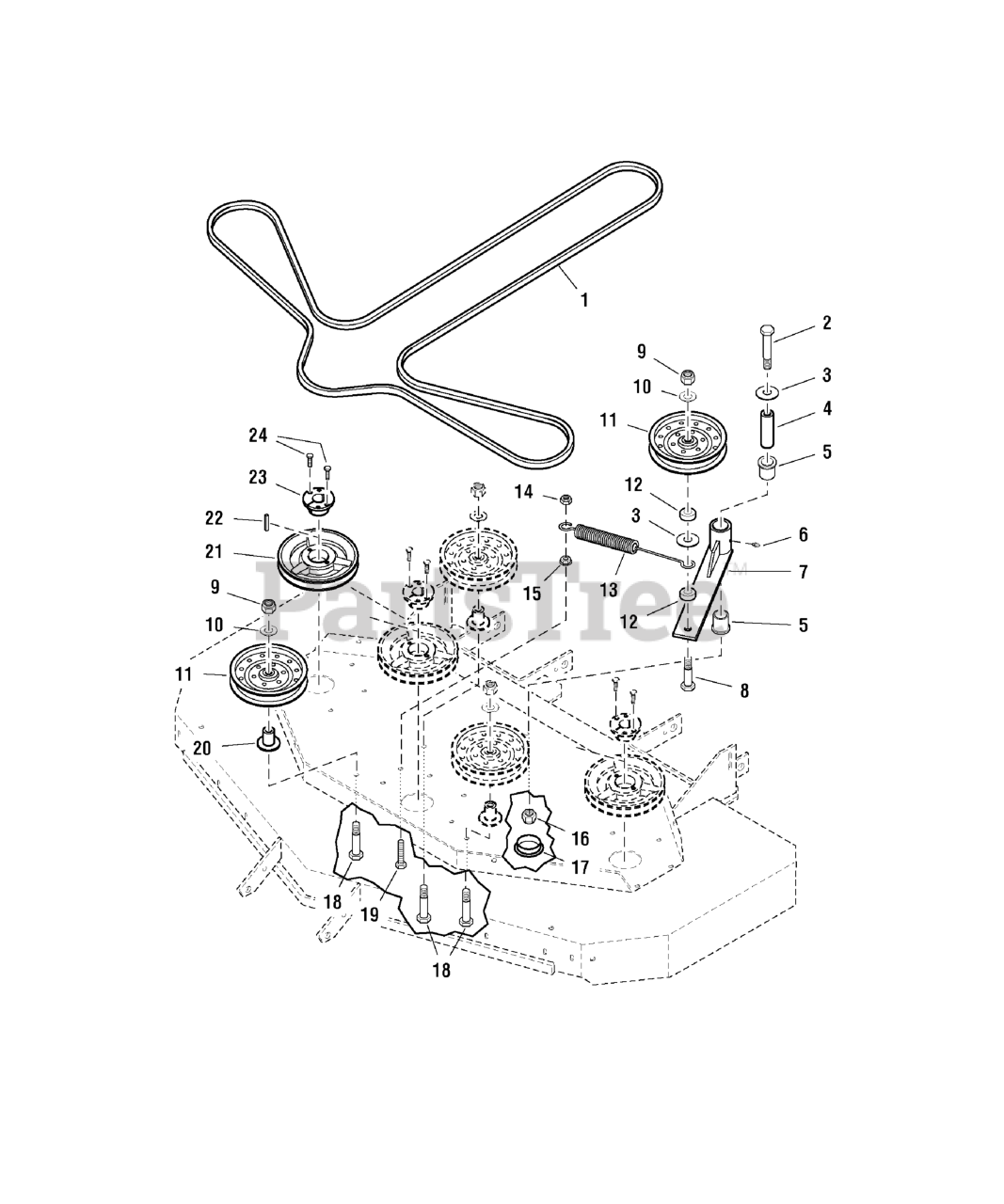

61" Mower Deck - Pulleys, Belt & Idler Arm Parts Diagram

  • Title

1

Ferris 5023123

BELT
(Superseded to 5023123FS)

$118.99

$

Usually ships in 2-12 days

0

2

Ferris 5025017X36

BOLT, 1/2-13 X 4-1/2" GD5 YZ
(Superseded to 5025017X36SM)

$6.49

$

In Stock, only 2 left!

0

3

Ferris 5025150

WASHER, 1/2" USSZ
(Superseded to 5025150SM)

$3.99

$

In Stock, only 2 left!

0

4

Ferris 5045022

SPACER, .52 x 1.00 x 3.50
(Superseded to 5045022SM)

$24.99

$

In Stock, only 3 left!

0

5

Ferris 5021541

BUSHING, FLANGE
(Superseded to 5021541SM)

$9.99

$

In Stock, Qty 10

0

6

Ferris 5020095

GREASE FITTING, 1/4-28 Straight
(Superseded to 5020095SM)

$3.99

$

In Stock, only 3 left!

0

7

Ferris 5045019B

WELD, IDLER ARM - RED
(Superseded to 5060001)

$85.99

$

Usually ships in 2-12 days

0

8

Ferris 5025018X24

BOLT, 1/2-20 X 3" GD5 YZ
(Superseded to 5025018X24SM)

$4.99

$

Usually ships in 2-12 days

0

9

Ferris 5025098

NUT, Hex, Nylon Lock, 1/2-20
(Superseded to 5025098SM)

$5.99

$

In Stock, only 2 left!

0

10

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 14

0

11

Replace with: Pulley #5104717 & Debris Shield #5105145

Note: (Refer to Note: *)

$

$

Not available

12

Ferris 5045023

SPACER, .52 X 1.00 X .44, CZ
(Superseded to 5045023SM)

$6.49

$

Usually ships in 2-12 days

0

13

Ferris 5023340

SPRING-EXT, 1.04 ODX10.535LGX.148WR, BLK
(Superseded to 5023340SM)

$36.99

$

In Stock, only 1 left!

0

14

Ferris 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

15

Ferris 5025128

NUT, 3/8-16 Hex Large Serrated Flange
(Superseded to 5025128SM)

$3.49

$

In Stock, only 2 left!

0

16

Ferris 5025056

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 5025056FS)

$4.49

$

In Stock, only 1 left!

0

17

Ferris 5022800

PLUG, HOLE 2-1/8

$3.49

$

In Stock, only 4 left!

0

18

Ferris 5025018X28

BOLT, 1/2-20 X 3-1/2" GD5 YZ
(Superseded to 5025018X28SM)

$4.49

$

In Stock, Qty 5

0

19

Ferris 5025058X14

BOLT, 3/8-18 X 1-3/4" GD5 TFL

$

$

Currently unavailable

20

Ferris 5045024B

IDLER PULLEY MOUNT - RED
(Superseded to 5045024BFS)

$43.99

$

Usually ships in 2-12 days

0

21

Ferris 5020815

PULLEY, SPINDLE, BH66
(Superseded to 5020815SM)

$111.99

$

Usually ships in 2-12 days

0

22

Ferris 5022726

KEY 1/4 SQ X 1 1/2 LONG
(Superseded to 5022726YP)

$4.99

$

In Stock, only 2 left!

0

23

Ferris 5020819

BUSHING, Tapered Hub
(Superseded to 5020819SM)

$26.99

$

In Stock, only 2 left!

0

24

Ferris 5025010X8

BOLT, 1/4-20 X 1" GD5 CZ
(Superseded to 5025010X8SM)

$3.99

$

In Stock, only 2 left!

0
