500 - Shindaiwa Chainsaw Crankshaft Parts Diagram

Chainsaw

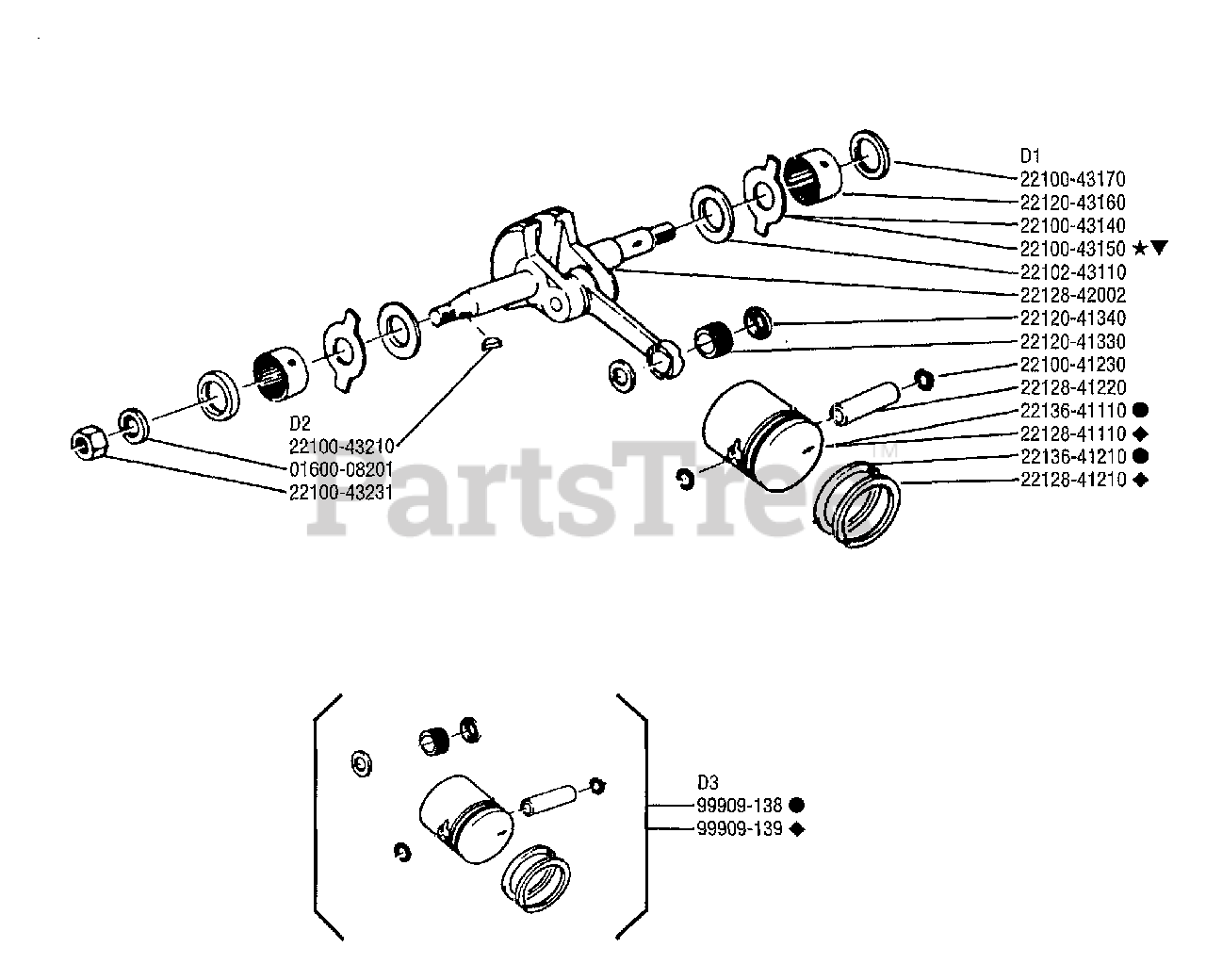

Crankshaft Parts Diagram

  • Title

D2-22100-43210

Echo 22100-43210

KEY
(Superseded to 12408-03100)

$1.99

$

In Stock, only 2 left!

0

D2-01600-08201

Echo 01600-08201

WASHER, SPRING
(Superseded to 90060500008)

$0.99

$

In Stock, Qty 20+

0

D2-22100-43231

Echo 22100-43231

NUT
(Superseded to V265000180)

$0.99

$

Usually ships in 2-4 days

0

D3-99909-138

Echo 99909-138

PISTON ASSY
(Superseded to Discontinued)

$

$

Not available

D3-99909-139

Echo 99909-139

PISTON ASSY
(Superseded to Discontinued)

$

$

Not available

D1-22100-43170

Echo 22100-43170

SEAL, OIL
(Superseded to V505000130)

$5.49

$

Usually ships in 2-4 days

0

D1-22120-43160

Echo 22120-43160

BEARING, NEEDLE M

$26.99

$

Usually ships in 2-4 days

0

D1-22100-43140

Echo 22100-43140

PLATE A, SIDE

$3.49

$

Usually ships in 2-4 days

0

D1-22100-43150

Echo 22100-43150

PLATE B, SIDE
(Superseded to V150002480)

Note: OPTIONAL

$6.49

$

Usually ships in 2-4 days

0

D1-22102-43110

Echo 22102-43110

WASHER, THRUST

$5.49

$

Usually ships in 2-4 days

0

D1-22128-42002

Echo 22128-42002

CRANKSHAFT ASSY
(Superseded to A011000950)

$76.99

$

Usually ships in 2-4 days

0

D1-22120-41340

Echo 22120-41340

WASHER, THRUST
(Superseded to V307000300)

$5.49

$

Usually ships in 2-4 days

0

D1-22120-41330

Echo 22120-41330

BEARING, NEEDLE SE

$9.99

$

In Stock, only 1 left!

0

D1-22100-41230

Echo 22100-41230

SNAP RING
(Superseded to V580000110)

$0.99

$

In Stock, Qty 10

0

D1-22128-41220

Echo 22128-41220

PISTON PIN

$5.99

$

In Stock, only 1 left!

0

D1-22136-41110

Echo 22136-41110

PISTON
(Superseded to Discontinued)

$

$

Not available

D1-22128-41110

Echo 22128-41110

PISTON

$

$

Not available

D1-22136-41210

Echo 22136-41210

PISTON RING
(Superseded to Discontinued)

$

$

Not available

D2-22128-41210

Echo 22128-41210

PISTON RING
(Superseded to A101000490)

$10.99

$

In Stock, Qty 6

0
