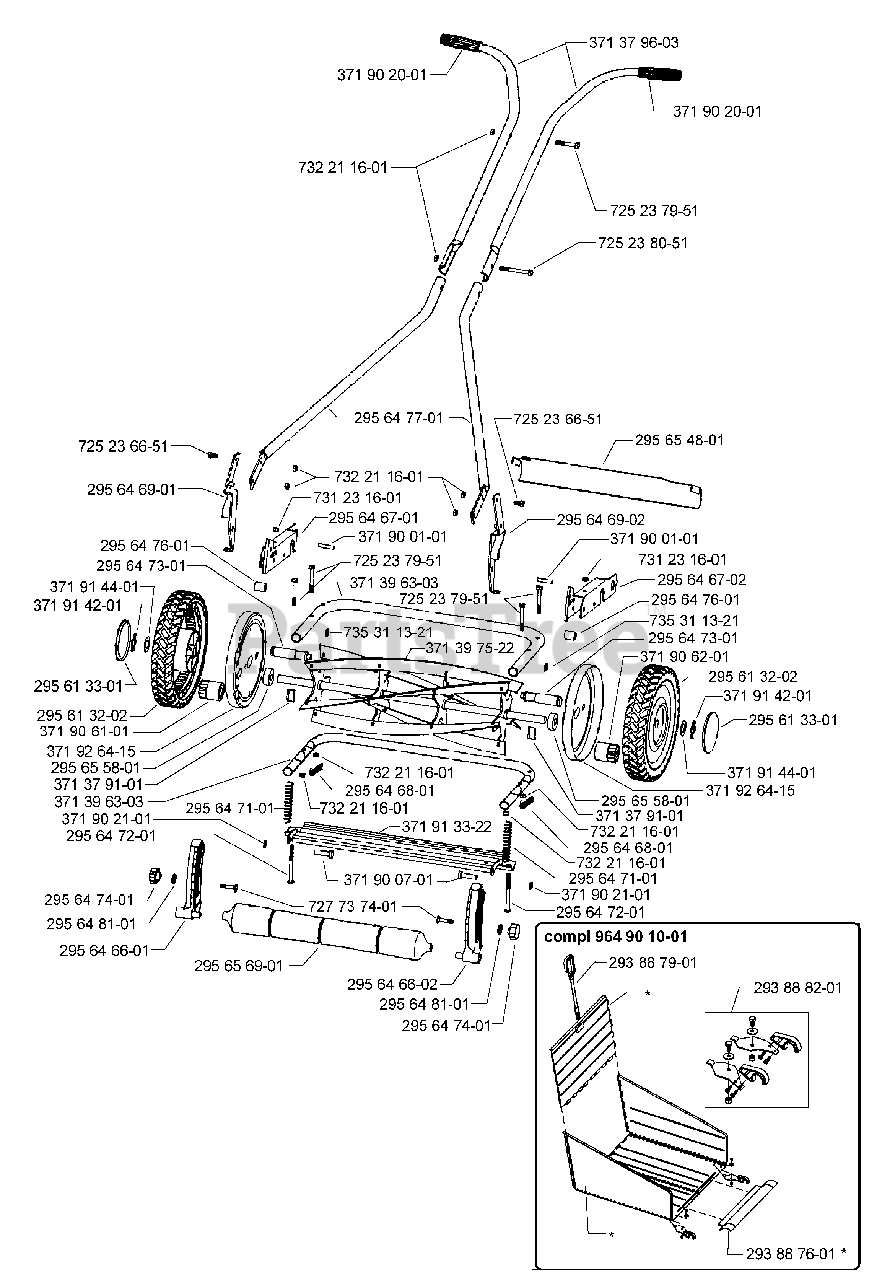

500 H - Jonsered Walk-Behind Mower (2003-01) PRODUCT COMPLETE Parts Diagram

Walk-Behind Mower

PRODUCT COMPLETE Parts Diagram

  • Title
2938876-01

Jonsered 293887601

CATCHER BRACKET

$

$

Not available

3719020-01

Jonsered 371902001

HANDLE
(Superseded to 295700001)

$11.99

$

Usually ships in 3-10 days

0

2938879-01

Jonsered 293887901

ATTACHMENT HOOK

$

$

Not available

2938882-01

Jonsered 293888201

MOUNTING HARDWARE

$

$

Not available

7322116-01

Jonsered 732211601

LOCKNUT M6

$5.99

$

In Stock, only 1 left!

0

2956132-02

Jonsered 295613202

WHEEL
(Superseded to 295696301)

$22.99

$

Usually ships in 3-10 days

0

7252366-51

$3.49

$

In Stock, only 3 left!

0

2956133-01

Jonsered 295613301

HUBCAP
(Superseded to 295613305)

$

$

Not available

2956469-01

$

$

Not available

2956476-01

$

$

Not available

2956466-01

Jonsered 295646601

HEIGHT GAUGE

$31.99

$

Usually ships in 3-10 days

0

2956466-02

Jonsered 295646602

HEIGHT GAUGE

$56.99

$

Usually ships in 3-10 days

0

2956473-01

$

$

Not available

3719144-01

$

$

Not available

2956467-01

$

$

Not available

3719142-01

$4.99

$

Usually ships in 3-10 days

0

2956467-02

$

$

Not available

2956133-01

Jonsered 295613301

HUBCAP
(Superseded to 295613305)

$

$

Not available

2956468-01

$17.99

$

Usually ships in 3-10 days

0

2956469-01

$

$

Not available

2956132-02

Jonsered 295613202

WHEEL
(Superseded to 295696301)

$22.99

$

Usually ships in 3-10 days

0

2956469-02

$

$

Not available

3719061-01

$20.99

$

Usually ships in 3-10 days

0

3719264-15

Jonsered 371926415

PROTECTOR

$

$

Not available

2956471-01

$4.99

$

Usually ships in 3-10 days

0

2956472-01

$

$

Not available

2956558-01

$20.99

$

Usually ships in 3-10 days

0

2956473-01

$

$

Not available

3713791-01

$4.99

$

Usually ships in 3-10 days

0

3713963-03

$

$

Not available

2956474-01

$9.49

$

Usually ships in 3-10 days

0

3719021-01

Jonsered 371902101

LOCKING WASHER

$6.99

$

Usually ships in 3-10 days

0

2956476-01

$

$

Not available

2956477-01

Jonsered 295647701

LOWER HANDLE

$

$

Not available

2956472-01

$

$

Not available

2956481-01

Jonsered 295648101

WASHER
(Superseded to 531007890)

$22.99

$

Usually ships in 3-10 days

0

2956474-01

$9.49

$

Usually ships in 3-10 days

0

2956481-01

Jonsered 295648101

WASHER
(Superseded to 531007890)

$22.99

$

Usually ships in 3-10 days

0

2956548-01

Jonsered 295654801

No Description Available

$

$

Not available

2956466-01

Jonsered 295646601

HEIGHT GAUGE

$31.99

$

Usually ships in 3-10 days

0

2956558-01

$20.99

$

Usually ships in 3-10 days

0

2956569-01

$31.99

$

Usually ships in 3-10 days

0

2956569-01

$31.99

$

Usually ships in 3-10 days

0

2956471-01

$4.99

$

Usually ships in 3-10 days

0

3713791-01

$4.99

$

Usually ships in 3-10 days

0

2956477-01

Jonsered 295647701

LOWER HANDLE

$

$

Not available

3713796-03

$26.99

$

Usually ships in 3-10 days

0

7322116-01

Jonsered 732211601

LOCKNUT M6

$5.99

$

In Stock, only 1 left!

0

3713963-03

$

$

Not available

7312316-01

$6.49

$

In Stock, only 1 left!

0

3713975-22

Jonsered 371397522

CUTTING REEL

$

$

Not available

3719001-01

Jonsered 371900101

NO LONGER AVAILABLE NLA

$

$

Not available

2956467-01

$

$

Not available

3719001-01

Jonsered 371900101

NO LONGER AVAILABLE NLA

$

$

Not available

3719007-01

$

$

Not available

3719021-01

Jonsered 371902101

LOCKING WASHER

$6.99

$

Usually ships in 3-10 days

0

7252379-51

$7.49

$

Usually ships in 3-10 days

0

3719061-01

$20.99

$

Usually ships in 3-10 days

0

3713963-03

$

$

Not available

7353113-21

$

$

Not available

3719062-01

$31.99

$

Usually ships in 3-10 days

0

3719120-01

Jonsered 371902001

HANDLE
(Superseded to 295700001)

$11.99

$

Usually ships in 3-10 days

0

7322116-01

Jonsered 732211601

LOCKNUT M6

$5.99

$

In Stock, only 1 left!

0

2956468-01

$17.99

$

Usually ships in 3-10 days

0

3719133-22

$62.99

$

Usually ships in 3-10 days

0

3719142-01

$4.99

$

Usually ships in 3-10 days

0

7322116-01

Jonsered 732211601

LOCKNUT M6

$5.99

$

In Stock, only 1 left!

0

3719007-01

$

$

Not available

3719144-01

$

$

Not available

7277374-01

$7.99

$

Usually ships in 3-10 days

0

3719264-15

Jonsered 371926415

PROTECTOR

$

$

Not available

2956466-02

Jonsered 295646602

HEIGHT GAUGE

$56.99

$

Usually ships in 3-10 days

0

7252366-51

$3.49

$

In Stock, only 3 left!

0

2956481-01

Jonsered 295648101

WASHER
(Superseded to 531007890)

$22.99

$

Usually ships in 3-10 days

0

7252379-51

$7.49

$

Usually ships in 3-10 days

0

7252380-51

Jonsered 725238051

SCREW M6X50

$3.49

$

In Stock, only 1 left!

0

2956474-01

$9.49

$

Usually ships in 3-10 days

0

7277374-01

$7.99

$

Usually ships in 3-10 days

0

3719133-22

$62.99

$

Usually ships in 3-10 days

0

7312316-01

$6.49

$

In Stock, only 1 left!

0

3713975-22

Jonsered 371397522

CUTTING REEL

$

$

Not available

7252379-51

$7.49

$

Usually ships in 3-10 days

0

7322116-01

Jonsered 732211601

LOCKNUT M6

$5.99

$

In Stock, only 1 left!

0

7353113-21

$

$

Not available

7252366-51

$3.49

$

In Stock, only 3 left!

0

9649010-01

Jonsered 964901001

GC5400 GRASS CATCHER
(Superseded to 964901030)

$89.99

$

Usually ships in 3-10 days

0

2956469-02

$

$

Not available

2956472-01

$

$

Not available

3719021-01

Jonsered 371902101

LOCKING WASHER

$6.99

$

Usually ships in 3-10 days

0

2956471-01

$4.99

$

Usually ships in 3-10 days

0

7322116-01

Jonsered 732211601

LOCKNUT M6

$5.99

$

In Stock, only 1 left!

0

2956468-01

$17.99

$

Usually ships in 3-10 days

0

7322116-01

Jonsered 732211601

LOCKNUT M6

$5.99

$

In Stock, only 1 left!

0

3713791-01

$4.99

$

Usually ships in 3-10 days

0

2956558-01

$20.99

$

Usually ships in 3-10 days

0

3719264-15

Jonsered 371926415

PROTECTOR

$

$

Not available

3719144-01

$

$

Not available

2956133-01

Jonsered 295613301

HUBCAP
(Superseded to 295613305)

$

$

Not available

3719142-01

$4.99

$

Usually ships in 3-10 days

0

2956132-02

Jonsered 295613202

WHEEL
(Superseded to 295696301)

$22.99

$

Usually ships in 3-10 days

0

3719062-01

$31.99

$

Usually ships in 3-10 days

0

2956473-01

$

$

Not available

7353113-21

$

$

Not available

2956476-01

$

$

Not available

2956467-02

$

$

Not available

7312316-01

$6.49

$

In Stock, only 1 left!

0

3719001-01

Jonsered 371900101

NO LONGER AVAILABLE NLA

$

$

Not available

2956548-01

Jonsered 295654801

No Description Available

$

$

Not available

7252380-51

Jonsered 725238051

SCREW M6X50

$3.49

$

In Stock, only 1 left!

0

7252379-51

$7.49

$

Usually ships in 3-10 days

0

3719020-01

Jonsered 371902001

HANDLE
(Superseded to 295700001)

$11.99

$

Usually ships in 3-10 days

0

3713796-03

$26.99

$

Usually ships in 3-10 days
