500 E (UT-26101) - Green Machine Edger Gearhead & Guard Assy Parts Diagram

Edger

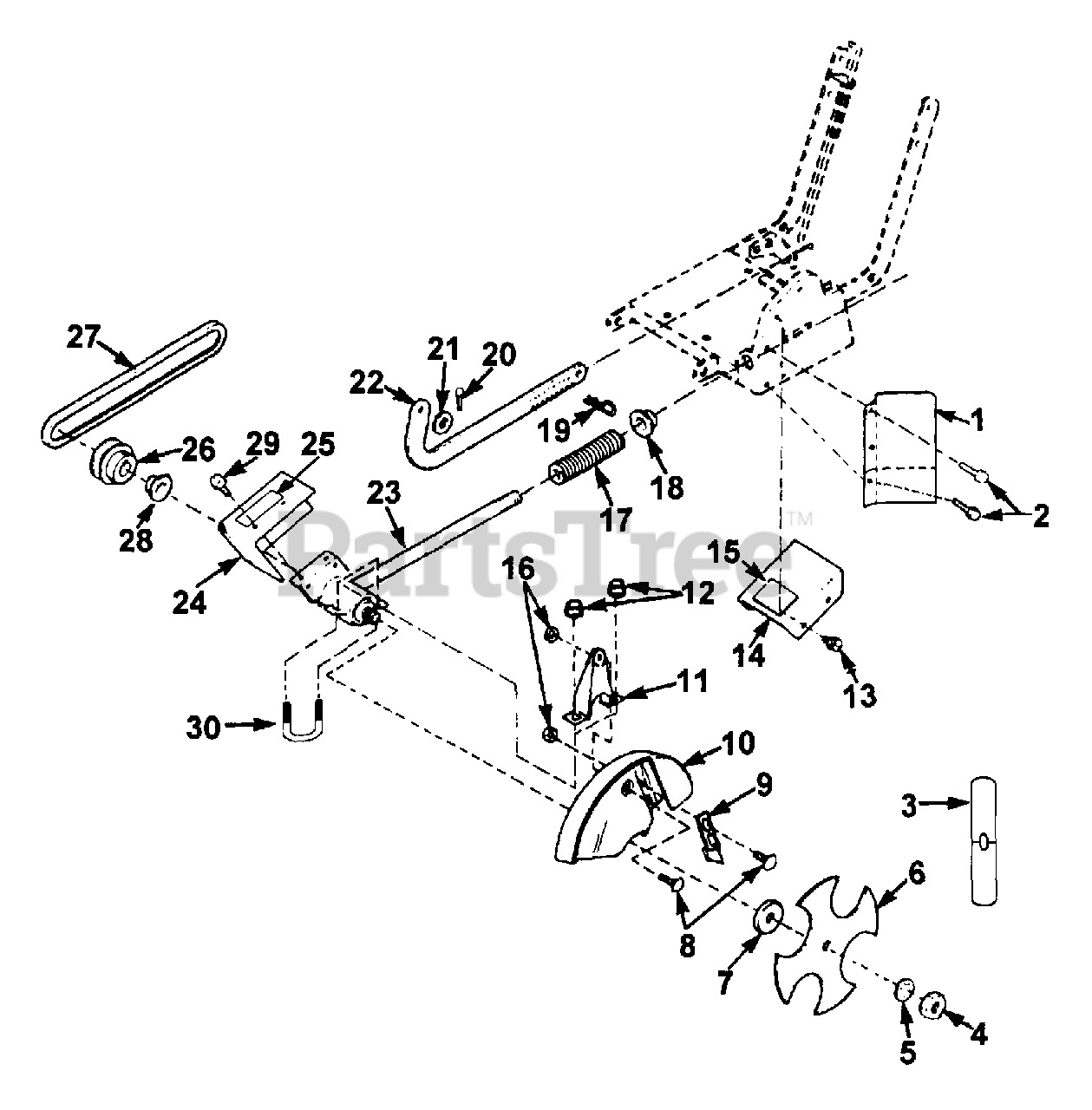

Gearhead & Guard Assy Parts Diagram

  • Title

1

Homelite A0125919

Flap (Debris Shield)

$

$

Not available

2

Homelite JA409907

Screw (1/4-20 x 1/2")

Note: Torque Specs: 25-35 In/Lbs; 2.9-4 Nm

$

$

Not available

3

Homelite 01246

Blade (2" x 9")

Note: (Optional)

$

$

Not available

4

Homelite JA443828

Nut (Jam 5/8 x 18)

Note: Torque Specs: 150-200 In/Lbs; 17.3-23 Nm

$

$

Currently unavailable

5

Homelite 83095

Washer (Lock 5/8")

$

$

Currently unavailable

6

Homelite 01245

Blade (Star)

$24.99

$

Usually ships in 3-7 days

0

7

Homelite 0125924

Washer (Dust Shield)

$

$

Not available

8

Homelite JA441664

Bolt (Carriage 1/4" x 5/8")

Note: Torque Specs: 25-35 In/Lbs; 2.9-4 Nm

$

$

Currently unavailable

9

Homelite 0125907

Finger (Guide)

$

$

Not available

10

Homelite 0125916

Guard (Blade)

$

$

Not available

11

Homelite 0125931

Bracket (Blade Support)

$

$

Not available

12

Homelite JA993720

Nut (Flanged 5/16-18)

Note: Torque Specs: 35-45 In/Lbs; 4-5 Nm

$

$

Not available

13

Homelite JA409907

Screw (1/4-20 x 1/2")

Note: Torque Specs: 25-35 In/Lbs; 2.9-4 Nm

$

$

Not available

14

Homelite A0125928

Guard (Engine Pulley)

$

$

Not available

15

Homelite 01255

Decal (Safety)

$

$

Not available

16

Homelite JA445768

Nut (1/4-20)

Note: Torque Specs: 25-35 In/Lbs; 2.9-4 Nm

$

$

Not available

17

Homelite 0125910

Spring (Cutter Head)

$

$

Not available

18

Homelite 0125911

Bushing (Nylon 3/4")

$5.99

$

Usually ships in 3-7 days

0

19

Homelite JA460312

Cotter Pin

$

$

Not available

20

Homelite GM236907

Cotter Pin

$

$

Not available

21

Homelite 84091

Washer (Flat)

$

$

Not available

22

Homelite 0125904

Ratchet (Depth Control)

$

$

Currently unavailable

23

Homelite 0125906

Gear Head

$

$

Not available

24

Homelite A0125937

Guard (Cutter Pulley)

$

$

Not available

25

Homelite 01249

Decal (Warning)

$

$

Not available

26

Homelite 0125942

Pulley (Cutter)

$

$

Currently unavailable

27

Homelite 01247

Belt (3/8 x 29")

$

$

Not available

Homelite 0125951

Belt (5/8 x 29")

$

$

Currently unavailable

28

Homelite 0125943

Bushing

$

$

Currently unavailable

29

Homelite JA409907

Screw (1/4-20 x 1/2")

Note: Torque Specs: 25-35 In/Lbs; 2.9-4 Nm

$

$

Not available

30

Homelite 0125930

U-Bolt

$

$

Not available
