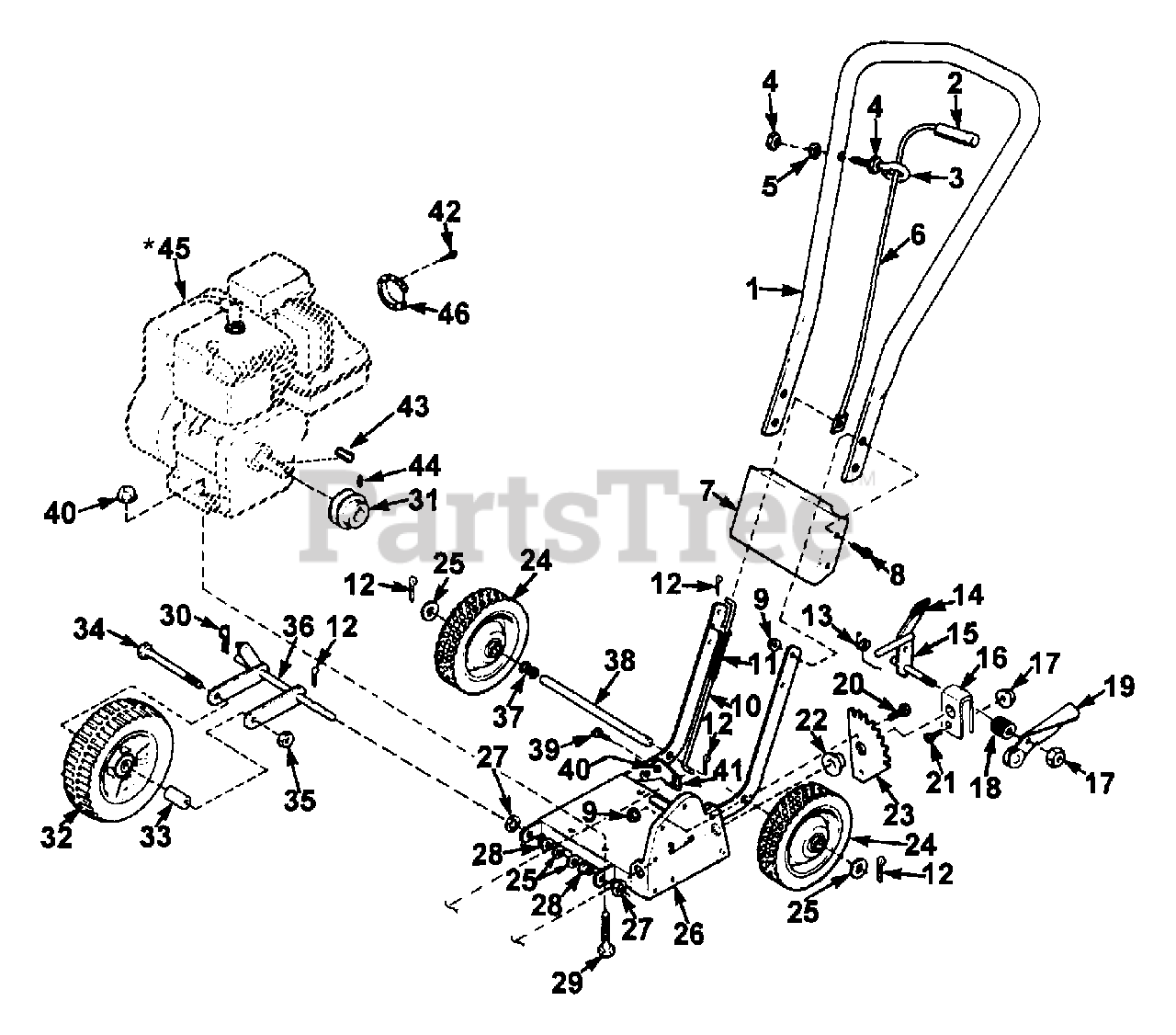

500 E (UT-26101) - Green Machine Edger Frame Assy & Wheels Parts Diagram

Edger

Frame Assy & Wheels Parts Diagram

  • Title

1

Homelite 012401

Handle

$

$

Not available

2

Homelite 0125920

Grip (Depth Control)

$

$

Currently unavailable

3

Homelite JA354532

Eyebolt

$

$

Currently unavailable

4

Homelite 81013

Nut (1/4-20)

Note: Torque Specs: 25-35 In/Lbs; 2.9-4 Nm

$

$

Not available

5

Homelite JA446130

Washer (lock 1/4")

$

$

Not available

6

Homelite 01243

Control (Depth)

$

$

Not available

7

Homelite A0788502

Cover (W/ Decal)

$

$

Not available

8

Homelite 88078

Screw (Sems 1/4-20 x 1")

Note: Torque Specs: 25-35 In/Lbs; 2.9-4 Nm

$

$

Not available

9

Homelite JA445768

Nut (1/4-20)

Note: Torque Specs: 25-35 In/Lbs; 2.9-4 Nm

$

$

Not available

10

Homelite 0125917

Rod (Lower Depth)

$

$

Currently unavailable

11

Homelite 0125925

Spring (Depth Control)

$

$

Currently unavailable

12

Homelite GM236907

Cotter Pin

$

$

Not available

13

Homelite 0125923

Spring (Angle Adjuster)

$

$

Not available

14

Homelite 0125926

Grip (Angle Adjuster)

$

$

Currently unavailable

15

Homelite 0125914

Lever (Angle Adjusting)

$

$

Currently unavailable

16

Homelite 0125912

Clamp (Angle Adjuster)

$

$

Not available

17

Homelite JA444762

Nut (Hex Locking)

Note: Torque Specs: 25-35 In/Lbs; 2.9-4 Nm

$

$

Currently unavailable

18

Homelite 0125913

Bushing (Adjuster)

$

$

Not available

19

Homelite 0125915

Lever (Clutch)

$

$

Not available

20

Homelite 82335

Screw (Sems Hex Head)
(Superseded to UP06708)

Note: Torque Specs: 25-35 In/Lbs; 2.9-4 Nm

$4.49

$

Usually ships in 3-7 days

0

21

Homelite JA400264

Screw (3/8-16 x 1 1/4)

Note: Torque Specs: 35-45 In/Lbs; 4-5 Nm

$

$

Currently unavailable

22

Homelite 0125911

Bushing (Nylon 3/4)

$5.99

$

Usually ships in 3-7 days

0

23

Homelite 0125909

Comb (Angle Adjuster)

$

$

Not available

24

Homelite JA993958

Wheel & Tire
(Superseded to UP06670)

$

$

Not available

25

Homelite 84091

Washer (Flat)

$

$

Not available

26

Homelite 0125901

Frame (Main)

$

$

Not available

27

Homelite 0125927

Retainer (Bushing)

$

$

Not available

28

Homelite 0125921

Bushing (Nylon)

$

$

Not available

29

Homelite 80087

Screw (Hex Cap)

Note: Torque Specs: 45-55 In/Lbs; 5.2-6.3 Nm

$

$

Not available

30

Homelite JA460312

Pin (Cotter)

$

$

Not available

31

Homelite 0125936

Pulley (Engine)

$

$

Not available

32

Homelite 01252

Wheel (Front)

$

$

Not available

33

Homelite 0125908

Spacer (Axle)

$

$

Currently unavailable

34

Homelite JA400422

Screw (1/2-13 x 4")

Note: Torque Specs: 45-55 In/Lbs; 5.2-6.3 Nm

$6.99

$

Usually ships in 3-7 days

0

35

Homelite JA444758

Nut (Hex Locking)

Note: Torque Specs: 45-55 In/Lbs; 5.2-6.3 Nm

$

$

Currently unavailable

36

Homelite 0125903

Bracket (F. Wheel)

$

$

Currently unavailable

37

Homelite 0125922

Spring (Axle)

$

$

Currently unavailable

38

Homelite 0125905

Axle (Rear)

$

$

Currently unavailable

39

Homelite 80083

Screw (Hex Head)

Note: Torque Specs: 25-35 In/Lbs; 2.9-4 Nm

$

$

Not available

40

Homelite JA993720

Nut (Flange 5/16-18)

Note: Torque Specs: 35-45 In/Lbs; 4-5 Nm

$

$

Not available

41

Homelite 0125902

Bracket (Depth)

$

$

Currently unavailable

42

Homelite JA408880

Screw (Hex Head)

Note: Torque Specs: 10-15 In/Lbs; 1.2-1.7 Nm

$

$

Currently unavailable

43

Homelite 43301A

Key
(Superseded to UP03767)

$

$

Not available

44

Homelite 82390

Screw (Set)
(Superseded to UP07284)

Note: Torque Specs: 35-45 In/Lbs; 4-5 Nm

$

$

Not available

45

Engine

Note: For engine replacement parts, locate the engine brand name, model number and type number and consult the appropriate dealer in your area.

$

$

Not available

46

Homelite JA359256

Deflector

$

$

Not available
