50 DK (954140030-A) - Husqvarna Walk-Behind Mower (1997-01) Repair Parts Parts Diagram

Walk-Behind Mower

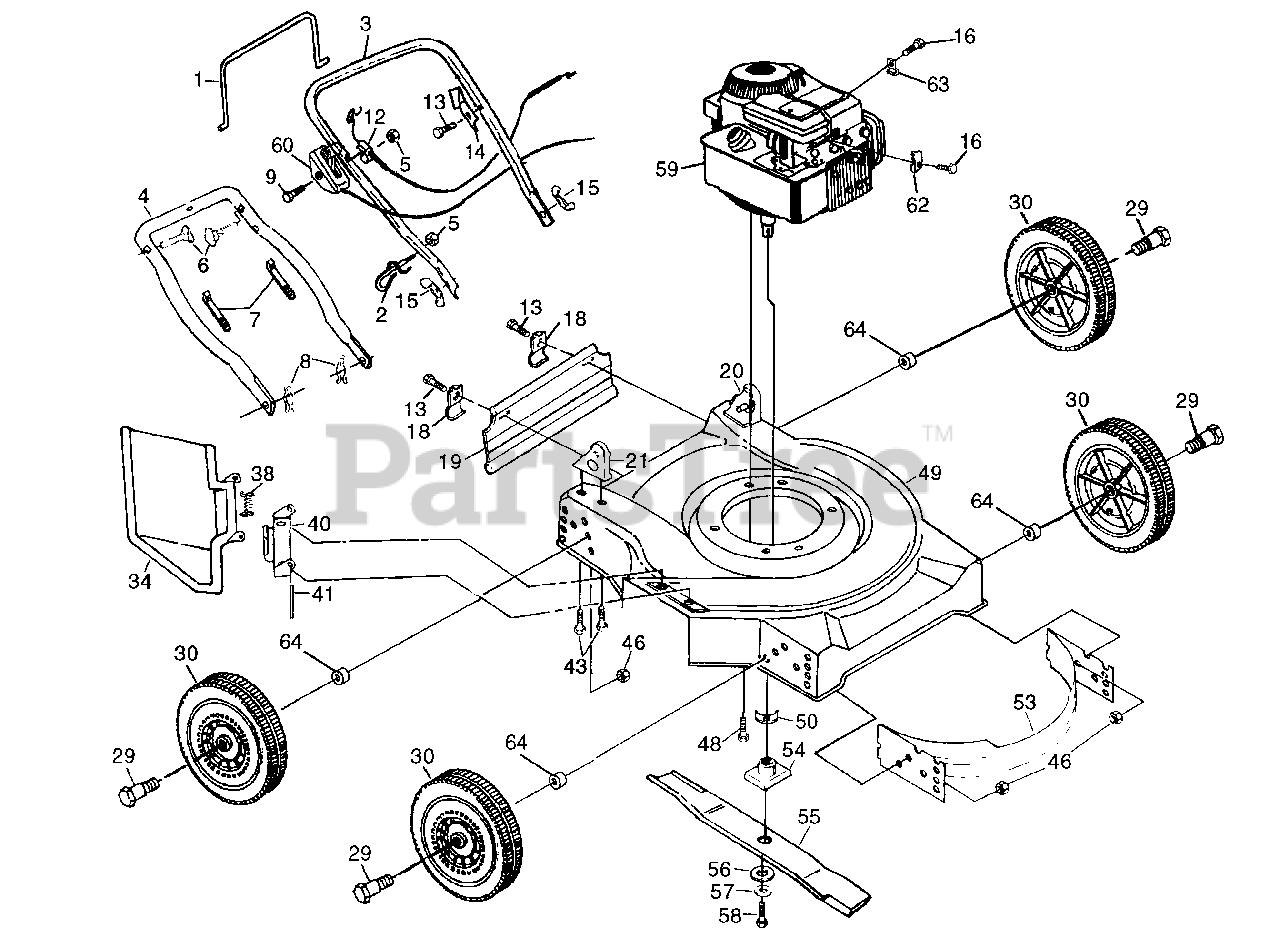

Repair Parts Parts Diagram

  • Title
1

Husqvarna 532086902

Control Bar

$

$

Not available

2

Husqvarna 532132001

Rope Guide
(Superseded to 586122501)

$18.99

$

In Stock, Qty 5

0

3

Husqvarna 532155978

Upper Handle
(Superseded to 532850881)

$

$

Not available

4

Husqvarna 532153031

Lower Handle

$

$

Not available

5

Husqvarna 532063601

Locknut 1/4-20
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

6

Husqvarna 532131959

Handle Bolt 5/16-18
(Superseded to 532183724)

$

$

Not available

7

Husqvarna 532066426

Wire Tie
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

8

Husqvarna 532051793

Hairpin Cotter

$7.49

$

Usually ships in 3-10 days

0

9

Husqvarna 532144929

Machine Screw 1/4-20 x 2.12
(Superseded to 532158755)

$

$

Not available

12

Husqvarna 532130861

Engine Zone Control Cable

$

$

Not available

13

Husqvarna 532750097

Hex Washer Head Screw #10-24 x 1/2
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

14

Husqvarna 532125162

Up-Stop Bracket
(Superseded to 532850733)

$7.49

$

In Stock, only 1 left!

0

15

$7.49

$

In Stock, Qty 8

0

16

Husqvarna 532083816

Screw #10 x 5/8

$6.49

$

Usually ships in 3-10 days

0

18

Husqvarna 532125207

Skirt Bracket
(Superseded to 532192301)

$

$

Not available

19

Husqvarna 532140541

Rear Skirt
(Superseded to 532189009)

$

$

Not available

20

Husqvarna 532153027

Handle Bracket Assembly (Left)
(Superseded to 532192983)

$42.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532153026

Handle Bracket Assembly (Right)
(Superseded to 532192983)

$42.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532067609

Shoulder Bolt

$

$

Not available

30

Husqvarna 532750500

Wheel & Tire Assembly
(Superseded to 532700263)

$

$

Not available

34

Husqvarna 532142191

Discharge Guard
(Superseded to 532142193)

$

$

Not available

38

Husqvarna 532851855

Spring
(Superseded to 532411832)

$5.99

$

In Stock, only 4 left!

0

40

Husqvarna 532153806

Housing Bracket
(Superseded to 532088602)

$4.99

$

Usually ships in 3-10 days

0

41

$6.49

$

Usually ships in 3-10 days

0

43

Husqvarna 532149741

Thread Cutting Screw 5/16-18 x 3/4
(Superseded to 532171877)

$7.49

$

In Stock, Qty 5

0

46

Husqvarna 532751592

Locknut 3/8-16
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

48

Husqvarna 532150406

Hex Head Thread Rolling Screw 3/8-16 x 1-1/8

$7.49

$

Usually ships in 3-10 days

0

49

Husqvarna 532142144

Housing Assembly

$

$

Not available

50

UNKNOWN

$

$

Not available

53

Husqvarna 532138348

Baffle
(Superseded to 532700839)

$

$

Not available

54

Husqvarna 532850977

Blade Adapter
(Superseded to 581547901)

$17.99

$

In Stock, Qty 20+

0

55

$20.99

$

In Stock, only 1 left!

0

56

Husqvarna 532851074

Hardened Washer

$4.99

$

In Stock, only 4 left!

0

57

Husqvarna 532850263

Helical Lockwasher 3/8
(Superseded to 810040600)

$4.99

$

In Stock, Qty 19

0

58

Husqvarna 532851084

Hex Head Screw 3/8-24 x 1-3/8 Gr. 8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

59

Engine - Briggs & Stratton, Model No. 98902

$

$

Not available

60

Husqvarna 532851462

Throttle Control Std.
(Superseded to 532851463)

$

$

Not available

62

Husqvarna 532213146

Cable Clamp, B & S
(Superseded to 532125078)

$5.99

$

Usually ships in 3-10 days

0

63

Husqvarna 532087930

Engine Clip

$5.99

$

Usually ships in 3-10 days

0

$9.99

$

In Stock, only 1 left!

0

Husqvarna 532107339

Decal, Danger
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0

Husqvarna 532157086

Decal, Engine

$4.99

$

Usually ships in 3-10 days

0

Husqvarna 532157087

Decal, Housing

$

$

Not available

Husqvarna 532141520

Rear Baffle
(Superseded to 532133379)

Note: (Not Shown)

$

$

Not available

Husqvarna 532157005

Owner's Manual (English/French)

$

$

Not available

Husqvarna GCK2200

Grass Catcher

Note: Accessory (Not included with mower.)

$

$

Not available

Husqvarna MK500

Mulcher Kit

Note: Accessory (Not included with mower.)

$

$

Not available
