5-8400 - Toro 32" Side-Discharge Mower Deck (1975) A-60 PARTS MANUAL 5.000 FRONT AXLE AND STEERING (FIG. 5) Parts Diagram

32" Side-Discharge Mower Deck

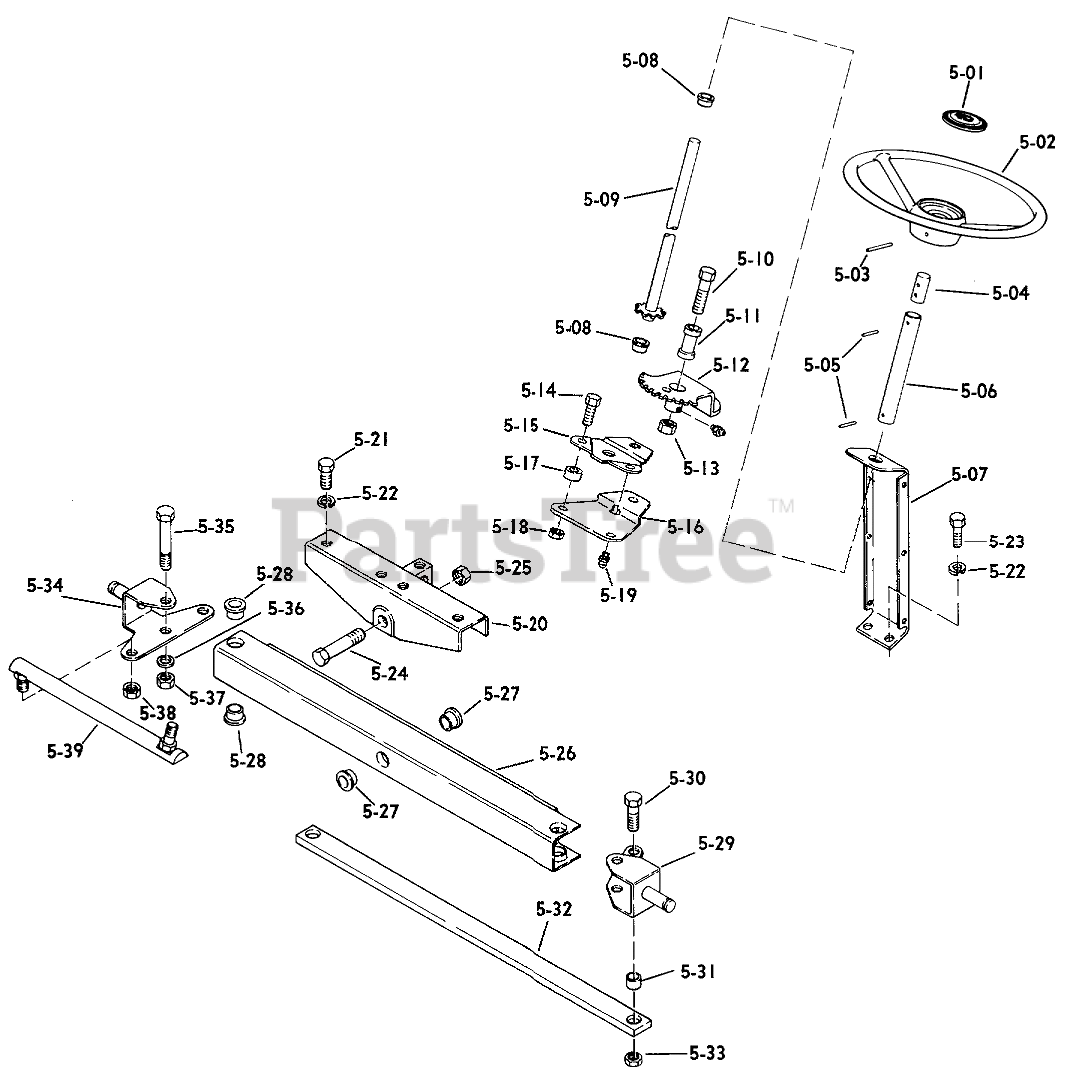

A-60 PARTS MANUAL 5.000 FRONT AXLE AND STEERING (FIG. 5) Parts Diagram

  • Title
5-01

Toro 102856

STEERING WHEEL INSE

$

$

Not available

5-02

Toro 102715

STEERING WH 13" SOFT

$

$

Not available

5-03

Toro 933223

Roll Pin 1/4 x 2 1/2

$

$

Not available

5-04

Toro 7424

Adapter-Steering Wheel

$

$

Not available

5-05

Toro 933217

SPIROL ROLL PIN

$

$

Not available

5-06

Toro 104300

Steering Tube

$

$

Not available

5-07

Toro 6669

Steering Support

$

$

Not available

5-08

Toro 101442

BEARING

$

$

Not available

5-09

Toro 5787

Steering Shaft

$

$

Currently unavailable

5-10

Toro 908064

Bolt 1/2-13 x 2 3/4
(Superseded to 327-4)

$2.99

$

In Stock, only 2 left!

0

5-11

Toro 102623

Bushing

$

$

Not available

5-12

Toro 104380

Steering Sector

$

$

Not available

5-13

Toro 915115

Eslok Nut
(Superseded to 3296-23)

$1.49

$

In Stock, Qty 20+

0

5-14

Toro 908037

Bolt
(Superseded to 323-9)

$1.49

$

In Stock, Qty 20+

0

5-15

Toro 104250

Steering Gear Support

$

$

Not available

5-16

Toro 104381

Steering Support

$

$

Not available

5-17

Toro 100313

Spacer

$

$

Not available

5-18

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 13

0

5-19

Toro 1030

Zerk

$

$

Not available

5-20

Toro 5778

Axle Support

$

$

Currently unavailable

5-21

Toro 908030

Bolt, 3/8-16 x 1/2

$

$

Not available

5-22

Toro 920083

LOCKWASHER
(Superseded to 3253-21)

$0.99

$

In Stock, Qty 10

0

5-23

Toro 908031

Bolt
(Superseded to 323-34)

$6.49

$

In Stock, only 2 left!

0

5-24

Toro 5795

Bolt

$

$

Not available

5-25

Toro 915115

Eslok Nut
(Superseded to 3296-23)

$1.49

$

In Stock, Qty 20+

0

5-26

Toro 104247

Front Axle

$

$

Not available

5-27

Toro 101441

BUSHING

$

$

Not available

5-28

Toro 102811

Bushing

$

$

Currently unavailable

5-29

Toro 5783

Ass-y. Arm & Spindle L.H.

$

$

Currently unavailable

5-30

Toro 908034

BOLT
(Superseded to 323-6)

$2.49

$

In Stock, Qty 20+

0

5-31

Toro 4937

SPACER

$

$

Not available

5-32

Toro 5796

Drag Link

$

$

Not available

5-33

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 8

0

5-34

Toro 104382

R.H. Arm & Spindle Assembly

$

$

Currently unavailable

5-35

Toro 102762

Bolt-Shoulder

$

$

Not available

5-36

Toro 920211

WASHER

$

$

Not available

5-37

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 8

0

5-38

Toro 915002

NUT-6
(Superseded to 9150026)

$1.99

$

In Stock, Qty 20+

0

5-39

Toro 104376

Ball Joint

$

$

Not available
