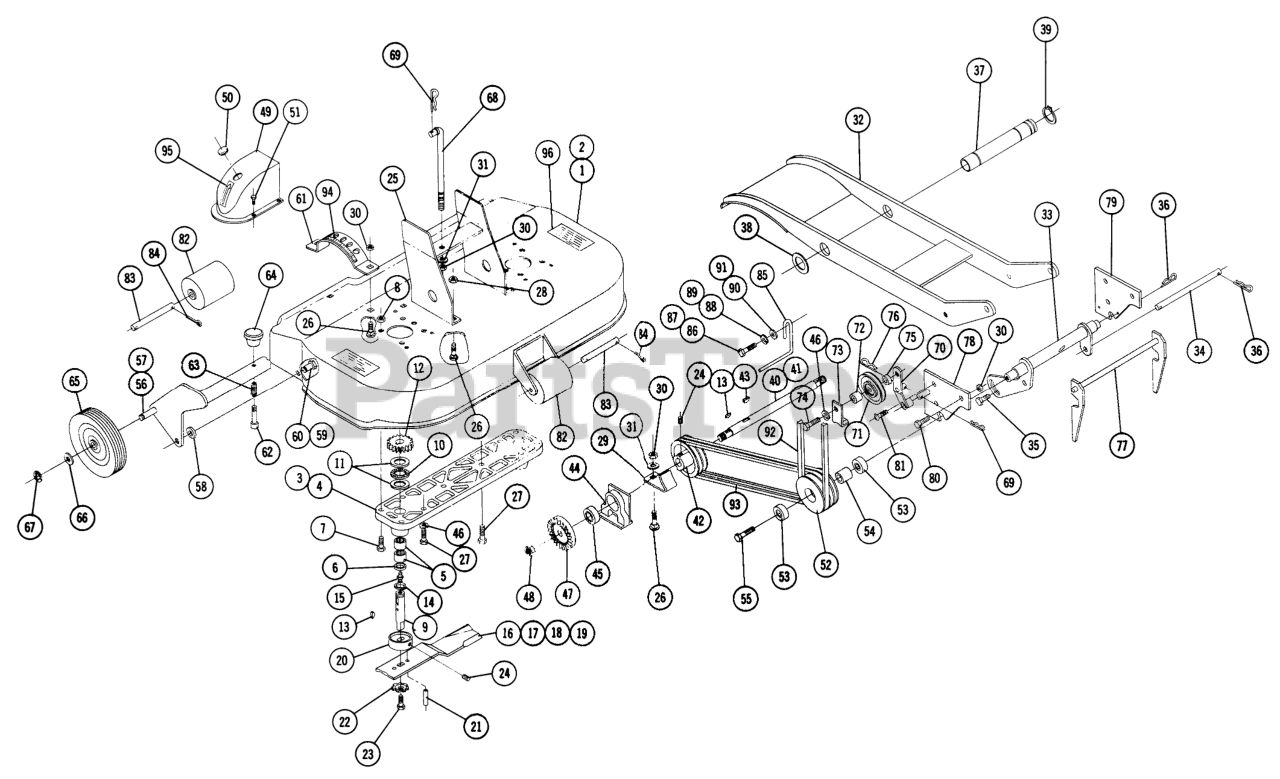

5-2362 - Toro 36" Rear-Discharge Mower Deck (1969) 5-2322 & 5-2362 PARTS LIST-32" Parts Diagram

36" Rear-Discharge Mower Deck

5-2322 & 5-2362 PARTS LIST-32" Parts Diagram

  • Title

1

Toro 6575

Ass-y. Deck

$

$

Currently unavailable

3

Toro 7589

Housing

$

$

Not available

5

Toro 1508

NEEDLE BEARING
(Superseded to 252-6)

$13.99

$

In Stock, Qty 13

0

6

Toro 1303

Seal
(Superseded to 100441)

$9.99

$

In Stock, only 2 left!

0

7

Toro 908019-4

Bolt 5/16-18 x 1

$

$

Currently unavailable

8

Toro 915112-6

Nut-Nylok

$

$

Currently unavailable

9

Toro 7895

SPINDLE SHAFT

$

$

Not available

10

Toro 1534

Bearing Thrust
(Superseded to 99-3836)

$16.99

$

In Stock, only 2 left!

0

11

Toro 7894

Washer-thrust
(Superseded to 7993)

$

$

Not available

12

Toro 3131

SPUR GEAR

$

$

Not available

13

Toro 937084

WOODRUFF KEY

$

$

Not available

14

Toro 936125

RING-SNAP, EXTERNAL
(Superseded to 32120-72)

$2.49

$

In Stock, only 2 left!

0

15

Toro 1030

Zerk

$

$

Not available

16

Toro 7908

Blade R.H. 16"
(Superseded to 8777)

$

$

Not available

17

Toro 7909

Blade L.H. 16"
(Superseded to 8777)

$

$

Not available

20

Toro 3716

SPINDLE CUP

$

$

Not available

21

Toro 933211

SPIROL ROLL PIN

$2.49

$

Usually ships in 3-6 days

0

22

Toro 1336

WASHER

$

$

Not available

23

Toro 908033-5

Bolt 3/8-16 x 7/8

$

$

Currently unavailable

24

Toro 909862-5

Set Screw

$

$

Currently unavailable

25

Toro 6579

Ass-y Bracket-Hanger

$

$

Not available

26

Toro 900062-4

Bolt-3/8-16 x 3/4

$

$

Currently unavailable

27

Toro 908035-4

Bolt 3/8-16 x 1

$

$

Currently unavailable

28

Toro 915113-6

Nut

$

$

Currently unavailable

29

Toro 6583

Guard

$

$

Not available

30

Toro 915663-4

3/8-16 E.S.

$

$

Currently unavailable

31

Toro 920009-4

Washer

$

$

Currently unavailable

32

Toro 6584

Ass-y-Drag Link

$

$

Not available

33

Toro 6587

ASSY HITCH SHAFT R

$

$

Not available

34

Toro 6968

Pin-Hitch
(Superseded to 704110)

$

$

Not available

35

Toro 960200-4

Bolt Whizlock 3/8-16 x 5/8

$

$

Currently unavailable

36

Toro 933512-4

Hairpin

$

$

Currently unavailable

37

Toro 6592

PIVOT TUBE

$

$

Not available

38

Toro MW-4346

Washer

$

$

Currently unavailable

39

Toro 936134

SNAP RING

$

$

Not available

40

Toro 3155

SHAFT CROSS

$

$

Not available

42

Toro 1624

PULLEY

$

$

Not available

43

Toro 937159

Key
(Superseded to 937225)

$5.49

$

Usually ships in 3-6 days

0

44

Toro 7590

Housing
(Superseded to 7591)

$

$

Not available

45

Toro 1515

Ball
(Superseded to 101480)

$56.99

$

In Stock, only 3 left!

0

46

Toro 920083-4

Lockwasher

$

$

Currently unavailable

47

Toro 7898

Gear

$

$

Not available

48

Toro 915639-4

Nut Hex 5/8-18 Thin

$

$

Currently unavailable

49

Toro 3141

COVER GEAR

$

$

Not available

50

Toro 3757

PLUG BUTTON

$

$

Not available

51

Toro 1304

SCREW

$0.99

$

Usually ships in 3-6 days

0

52

Toro 6594

PULLEY

$

$

Not available

53

Toro 6593

BALL BEARING

$46.99

$

Usually ships in 3-6 days

0

54

Toro 6595

SPACER-BEARING

$

$

Not available

55

Toro 6596

SPECIAL BOLT

$72.99

$

Usually ships in 3-6 days

0

56

Toro 6601

Ass-y-Support-Wheel

$

$

Not available

58

Toro 6605

WASHER

$

$

Not available

59

Toro 6577

Bolt-Special
(Superseded to 7910)

$

$

Not available

61

Toro 6606

QUADRANT R

$

$

Not available

62

Toro 6633

PLUNGER

$

$

Not available

63

Toro 6634

Spring

$

$

Not available

64

Toro 6635

KNOB

$

$

Not available

65

Toro 6749

WHEEL ASSY

$156.99

$

Usually ships in 3-6 days

0

66

Toro 3765

SHIM-WASHER

$1.99

$

In Stock, only 3 left!

0

67

Toro 5701

E Ring
(Superseded to 32120-47)

$1.49

$

In Stock, Qty 8

0

68

Toro 6613

LIFT ROD R

$

$

Not available

69

Toro 933504-4

Hairpin

$

$

Currently unavailable

70

Toro 6636

Ass-y Idler Arm

$

$

Not available

71

Toro 1623

Pulley
(Superseded to 92-7102)

$71.99

$

In Stock, only 1 left!

0

72

Toro 6638

SPACER

$

$

Not available

73

Toro 6360

BRACKET GUARD

$

$

Not available

74

Toro 908036-4

Bolt, 3/8-16 x 1/2

$

$

Currently unavailable

75

Toro 1536

BUSHING

$

$

Not available

76

Toro 933503-4

Hairpin

$

$

Currently unavailable

77

Toro 4490

Ass-y Latch & Shaft
(Superseded to 6710)

$

$

Not available

78

Toro 4494

Ass-y Plate Pin R.H.

$

$

Not available

79

Toro 4497

PLATE-MTG BRKT LH R (NS)

$

$

Not available

80

Toro 908034-4

Bolt 3/8-16 x 1

$

$

Currently unavailable

81

Toro 909086-4

Bolt 3/8-16 x 1 RD.HD.

$

$

Currently unavailable

82

Toro 5240

Roller
(Superseded to 94-1599)

$13.99

$

In Stock, Qty 16

0

83

Toro 5241

Shaft
(Superseded to 101881)

$16.99

$

Usually ships in 3-6 days

0

84

Toro 932017-4

Cotter Pin

$

$

Currently unavailable

85

Toro 5949

RETAINER BELT

$

$

Not available

86

Toro 3385

Bolt Round Head 5/16-24 x 3/4

$

$

Currently unavailable

87

Toro 908032-4

Bolt 3/8-16 x 3/4

$

$

Currently unavailable

88

Toro 920082-4

Lockwasher

$

$

Currently unavailable

89

Toro 920083-4

Lockwasher

$

$

Currently unavailable

90

Toro 920008-4

Washer

$

$

Currently unavailable

91

Toro 920009-4

Washer

$

$

Currently unavailable

92

Toro 7430

V BELT

$25.99

$

Usually ships in 3-6 days

0

93

Toro 1578

V-BELTS - MATCHED PR

$32.99

$

In Stock, only 1 left!

0

94

Toro 6743

Decal-Height Control

$

$

Not available

95

Toro 3710

Decal

$

$

Currently unavailable

96

Toro 4570

Decal
(Superseded to 93-1122)

$9.99

$

In Stock, Qty 12

0

2

Toro 6640

Ass-y Deck

$

$

Not available

4

Toro 7592

Housing

$

$

Not available

18

Toro 7906

Blade R.H. 18"
(Superseded to 8014)

$134.99

$

Usually ships in 3-6 days

0

19

Toro 7907

Blade L.H. 18"
(Superseded to 8014)

$134.99

$

Usually ships in 3-6 days

0

41

Toro 4112

SHAFT

$

$

Not available

57

Toro 6644

Ass-y Support-Wheel

$

$

Not available

60

Toro 7910

SPECIAL BOLT

$

$

Not available
