5-1780 - Toro 36" Side-Discharge Mower Deck (1975) A-60 PARTS MANUAL 15.000 SEAT, DECALS, MISC. TRIM (FIG. 15) Parts Diagram

36" Side-Discharge Mower Deck

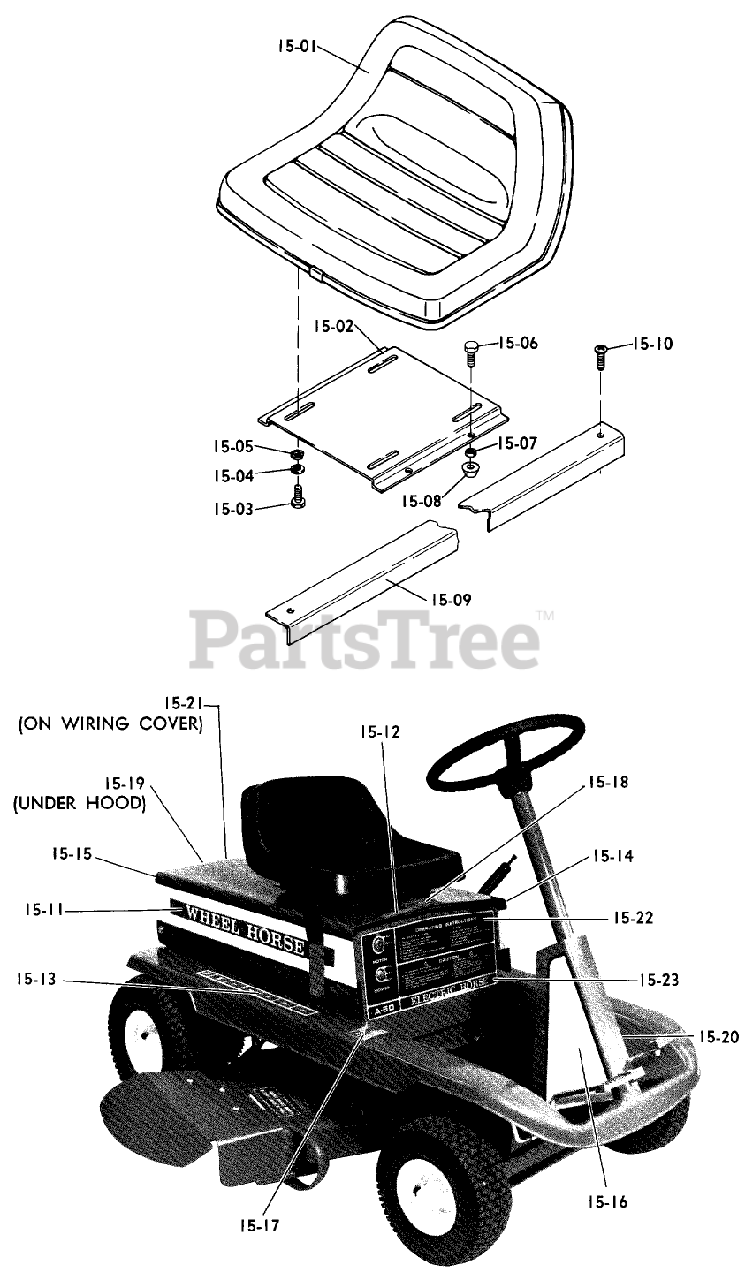

A-60 PARTS MANUAL 15.000 SEAT, DECALS, MISC. TRIM (FIG. 15) Parts Diagram

  • Title

15-01

Toro 104297

Seat

$

$

Not available

15-02

Toro 104298

Seat Support

$

$

Not available

15-03

Toro 908016

Bolt
(Superseded to 322-2)

$2.49

$

In Stock, Qty 13

0

15-04

Toro 920038

Collar
(Superseded to 3-2563)

$0.99

$

In Stock, Qty 20+

0

15-05

Toro 920082

Lockwasher
(Superseded to 325-34)

$3.99

$

Usually ships in 3-6 days

0

15-06

Toro 911403

Bolt 10-32 X 5/8

$

$

Not available

15-07

Toro 960005

Nut, # 10-32 Whizlock

$

$

Currently unavailable

15-08

Toro 104299

Bumper

$

$

Not available

15-09

Toro 104295

Seat Support Angle

$

$

Currently unavailable

15-10

Toro 104406

Screw, Flat Hd. 1/4-20 x 3/4 Swage Form

$

$

Currently unavailable

15-11

Toro 104412

Decal, Wheel Horse, Side Trim

$

$

Currently unavailable

15-12

Toro 103568

Decal-Read Manual

$

$

Currently unavailable

15-13

Toro 104328

Decal, Shift Pattern

$

$

Not available

15-14

Toro 104329

Decal, Mower Height

$

$

Currently unavailable

15-15

Toro 104883

Decal, A-60 Electric

$

$

Not available

15-16

Toro 104410

Decal, Steering Housing R.H.

$

$

Currently unavailable

15-17

Toro 104332

Decal, Parking Brake

$

$

Not available

15-18

Toro 104333

Decal, Caution

$

$

Not available

15-19

Toro 104372

Decal, Wiring Diagram

$

$

Not available

15-20

Toro 104411

Decal, Steering Housing L.H.

$

$

Currently unavailable

15-21

Toro 104455

Decal, Caution-Disconnect

$

$

Not available

15-22

Toro 104897

Instruction Plate

$

$

Currently unavailable

15-23

Toro 100609

Plate Screws

$

$

Not available
