5-1202 - Toro 48" Side-Discharge Mower Deck (1973) PARTS LIST Parts Diagram

48" Side-Discharge Mower Deck

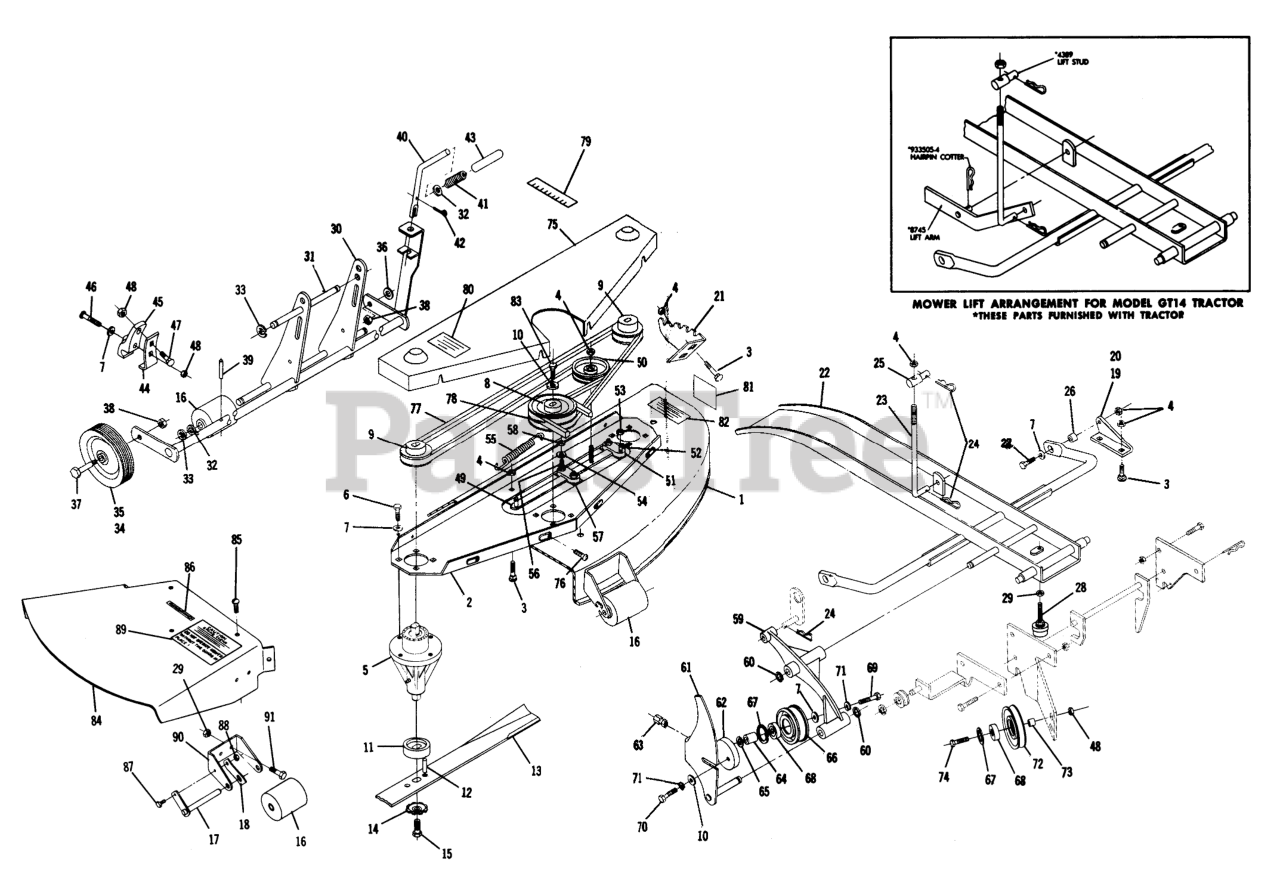

PARTS LIST Parts Diagram

  • Title

1

Toro 8842

Deck

$

$

Not available

2

Toro 6759

Support

$

$

Not available

3

Toro 900062-4

Bolt-3/8-16 x 3/4

$

$

Currently unavailable

4

Toro 915663-4

3/8-16 E.S.

$

$

Currently unavailable

5

Toro 100710

Ass-y-Sealed Spindle Bearing

$

$

Not available

6

Toro 908033-6

Bolt 3/8-16 x 7/8

$

$

Currently unavailable

7

Toro 920009-4

Washer

$

$

Currently unavailable

8

Toro 6756

Pulley-Center
(Superseded to 106848)

$

$

Not available

9

Toro 6757

Pulley-Right & Left
(Superseded to 106849)

$268.99

$

Usually ships in 3-6 days

0

10

Toro 2844

WASHER

$2.99

$

In Stock, Qty 17

0

11

Toro 8200

Cup-Spindle
(Superseded to 3716)

$

$

Not available

12

Toro 933211

SPIROL ROLL PIN

$2.49

$

Usually ships in 3-6 days

0

13

Toro 100202

BLADE KIT 48 LF

$

$

Not available

14

Toro 1336

WASHER

$

$

Not available

15

Toro 908033-5

Bolt 3/8-16 x 7/8

$

$

Currently unavailable

16

Toro 5240

Roller
(Superseded to 94-1599)

$13.99

$

In Stock, Qty 16

0

17

Toro 102770

Roller Shaft
(Superseded to 110847)

$28.99

$

In Stock, only 3 left!

0

18

Toro 102773

SPRING ROLLER STOP

$

$

Not available

19

Toro 6764

Bracket-Deck R.H.

$

$

Not available

20

Toro 6765

Bracket-Deck L.H.

$

$

Currently unavailable

21

Toro 100564

Quadrant

$

$

Not available

22

Toro 6761

Ass-y Support-Mower

$

$

Not available

23

Toro 6699

ROD LIFT

$

$

Not available

24

Toro 933504-4

Hairpin

$

$

Currently unavailable

25

Toro 6739

TRUNNION-LIFT

$24.99

$

In Stock, Qty 5

0

26

Toro 2138

SPACER

$

$

Not available

27

Toro 908035-4

Bolt 3/8-16 x 1

$

$

Currently unavailable

28

Toro 100087

LEVELER MOWER

$

$

Not available

29

Toro 915112-4

Nut, 5/16-18

$

$

Currently unavailable

30

Toro 100413

Ass-y.-Gage Wheel Support

$

$

Currently unavailable

31

Toro 6704

Pin

$

$

Not available

32

Toro 920011-4

Washer

$

$

Currently unavailable

33

Toro 5701

E Ring
(Superseded to 32120-47)

$1.49

$

In Stock, Qty 8

0

34

Toro 5305

Wheel
(Superseded to 110506)

$42.99

$

In Stock, only 2 left!

0

35

Toro 5306

BEARING

$4.49

$

Usually ships in 3-6 days

0

36

Toro 920241-4

Washer-Spacer

$

$

Currently unavailable

37

Toro 5188

BOLT-SHOULDER

$6.49

$

In Stock, Qty 6

0

38

Toro 915236-4

3/8-16 Jam Nut

$

$

Currently unavailable

39

Toro 933188

Roll Pin
(Superseded to 32121-93)

$

$

Not available

40

Toro 8162

FORK

$

$

Not available

41

Toro 8202

Spring

$

$

Not available

42

Toro 932009-4

Hairpin

$

$

Currently unavailable

43

Toro 9038

GRIP

$6.99

$

In Stock, only 1 left!

0

44

Toro 6723

Clip-Axle

$

$

Not available

45

Toro 6724

SUPPORT AXLE

$24.99

$

In Stock, only 1 left!

0

46

Toro 911404-4

Bolt 3/8-16 x 1 5/8

$

$

Currently unavailable

47

Toro 900064-4

Bolt Carriage 3/8-16 x 1

$

$

Currently unavailable

48

Toro 915113-6

Nut

$

$

Currently unavailable

49

Toro 6715

ASSY BAR IDLER SUPPO

$

$

Not available

50

Toro 6769

Pulley-Idler
(Superseded to 93-1622)

$42.99

$

In Stock, only 3 left!

0

51

Toro 6720

Side Block
(Superseded to 742659)

$

$

Not available

52

Toro 900039-4

Bolt-5/16-18 x 1/4

$

$

Currently unavailable

53

Toro 915662-4

Nut 5/16-18

$

$

Currently unavailable

54

Toro 920008-4

Washer

$

$

Currently unavailable

55

Toro 6651

SPRING R

$24.99

$

In Stock, only 1 left!

0

56

Toro 900040-4

Bolt-5/16-18 x 1 1/2

$

$

Currently unavailable

57

Toro 6748

SLIDE

$

$

Not available

58

Toro 915112-6

Nut-Nylok

$

$

Currently unavailable

59

Toro 6725

ARM PIVOT R
(Superseded to 6725-01)

$

$

Not available

60

Toro 4736

RING LAM L 262

$

$

Not available

61

Toro 7068

ASSEMBLY CAM LEVE R

$

$

Not available

62

Toro 6733

Ass-y Idle Support

$

$

Not available

63

Toro 6736

Nut

$

$

Not available

64

Toro 6814

SPACER

$

$

Not available

65

Toro 920156

Lockwasher-3/8 Int.Tooth
(Superseded to 3254-6)

$0.99

$

Usually ships in 3-6 days

0

66

Toro 6740

PULLEY IDLER

$

$

Not available

67

Toro 936024

INTERNAL SNAPRING

$

$

Not available

68

Toro 4567

BEARING

$

$

Not available

69

Toro 908037-4

Bolt Hex 3/8-16

$

$

Currently unavailable

70

Toro 908034-4

Bolt 3/8-16 x 1

$

$

Currently unavailable

71

Toro 920083-4

Lockwasher

$

$

Currently unavailable

72

Toro 4974

PULLEY IDLER

$

$

Not available

73

Toro 6638

SPACER

$

$

Not available

74

Toro 908036-4

Bolt, 3/8-16 x 1/2

$

$

Currently unavailable

75

Toro 6770

Cover
(Superseded to 106081)

$

$

Not available

76

Toro 960150-4

Bolt 1/4-20 x 3/8

$

$

Currently unavailable

77

Toro 1594

V-BELT

$39.99

$

In Stock, only 1 left!

0

78

Toro 9783

V BELT

$36.99

$

Usually ships in 3-6 days

0

79

Toro 100333

Decal-Height Adj.

$

$

Currently unavailable

80

Toro 4580

Decal Belt Installation

$

$

Currently unavailable

81

Toro 102832

DECAL-WHEEL HORSE

$

$

Not available

82

Toro 4570

Decal
(Superseded to 93-1122)

$9.99

$

In Stock, Qty 12

0

83

Toro 908032-6

Bolt 3/8-16 x 3/4 Hex

$

$

Currently unavailable

84

Toro 102705

Chute Extension

Note: Model 5-1202 only.

$

$

Currently unavailable

85

Toro 910864-4

Bolt 5/16-18 x 5/8

$

$

Currently unavailable

86

Toro 102962

Decal Mower Width

$

$

Currently unavailable

87

Toro 908002-4

Bolt-1/4-20 x 5/8

$

$

Currently unavailable

88

Toro 915111-6

Nut-Nylok

$

$

Currently unavailable

89

Toro 102952

Decal-Warning

$

$

Currently unavailable

90

Toro 5218

Bracket
(Superseded to 115060)

$

$

Not available

91

Toro 908016-4

Bolt Hex 5/16-18

$

$

Currently unavailable

92

Toro 908002-4

Bolt-1/4-20 x 5/8

$

$

Currently unavailable

93

Toro 915111-4

Nut 1/4-20

$

$

Currently unavailable
