5-0900 - Toro 60" Rear Mount Mower Deck (1973) SUPPORT FRAMEPARTS LIST Parts Diagram

60" Rear Mount Mower Deck

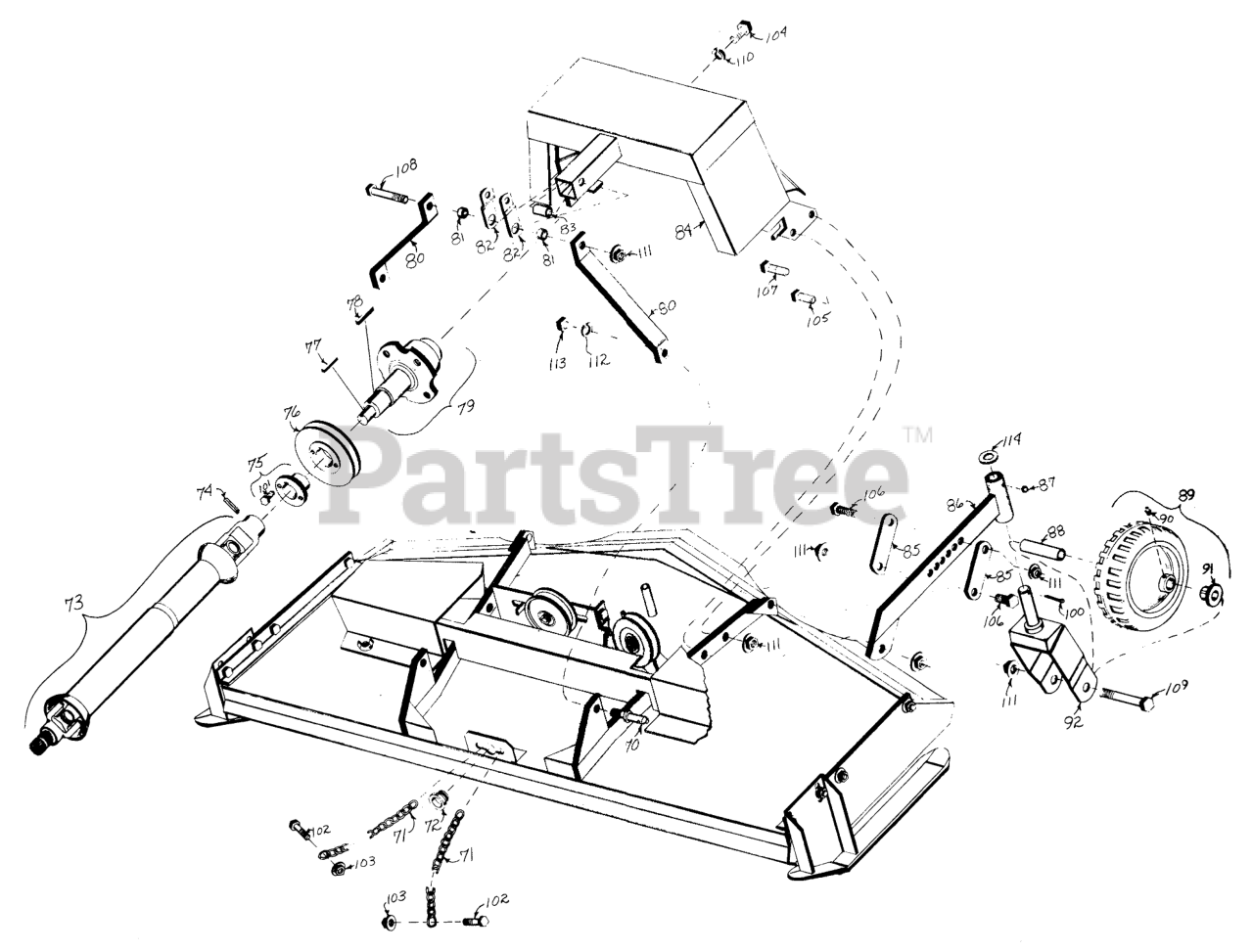

SUPPORT FRAMEPARTS LIST Parts Diagram

  • Title
70

Toro 103259

Category "O" Mounting Pin

$

$

Not available

71

Toro 103233

Check Chains

$

$

Not available

72

Toro 103234

Plastic Caplug

$

$

Not available

73

Drive Shaft Complete (See Page 10)

$

$

Not available

74

Toro 933231

Roll Pin 5/16 x 1 3/4

$

$

Not available

75

Toro 103260

H 1 3/8 Straight Bore Bushing

$

$

Currently unavailable

76

Toro 103261

5 PD Sheave

$

$

Not available

77

Toro 103262

1/4 x 1/4 x 1/4 Key

$

$

Not available

78

5/16 x 5/16 x 2 1/4 Key (Part of 103260)

$

$

Not available

79

Drive Spindle Assembly (See Page 9)

$

$

Not available

80

Toro 103264

A-Frame Bar

$

$

Currently unavailable

81

Toro 103265

Strap

$

$

Currently unavailable

82

Toro 103266

Top Pivot Link

$

$

Currently unavailable

83

Toro 103301

17 GA wa x 5/8 x 1 1/4 Tube

$

$

Currently unavailable

84

Toro 103267

Drive Spindle Support Assembly

$

$

Not available

85

Toro 103250

Caster Arm Adjustment Bracket

$

$

Currently unavailable

86

Toro 103251

Caster Arm

$

$

Currently unavailable

87

Toro 103302

Grease Fining

$

$

Currently unavailable

88

Toro 103255

U Bolt

$

$

Not available

89

Toro 103252

Bearing

$

$

Not available

90

Toro 103305

Clamp

$

$

Currently unavailable

91

Toro 103253

FLANGE BEARING

$

$

Not available

91

Toro 103254

Foot Rest

$

$

Not available

92

Toro 103256

Caster Yoke

$

$

Not available

100

Toro 932040

1/4 x 1 1/2 Cotter Pin

$

$

Currently unavailable

101

Toro 908003-4

Bolt 1/4-20 X 3/4

$

$

Currently unavailable

102

Toro 908036-4

Bolt, 3/8-16 x 1/2

$

$

Currently unavailable

103

Toro 915974-4

Nut, Jam, 3/8-24 Thd

$

$

Currently unavailable

104

Toro 908207-4

1/2 NF x 1 1/4 Hex Head Cap Screw

$

$

Currently unavailable

105

Toro 908058-4

Bolt Hex 1/2-13 x 1 1/4

$

$

Currently unavailable

106

Toro 908060-4

Bolt-1/2-13-1 3/4

$

$

Currently unavailable

107

Toro 908061-4

Bolt-Hex 1/2-13 x 2

$

$

Currently unavailable

108

Toro 908067-4

1/2 NC x 3 1/2 Hex Head Cap Screw

$

$

Currently unavailable

109

Toro 908070-4

1/2 NC x 4 1/2 Hex Head Cap Screw

$

$

Currently unavailable

110

Toro 920085-4

Lockwasher

$

$

Currently unavailable

111

Toro 915966-4

1/2 NC Flange Lock Nut

$

$

Currently unavailable

112

Toro 920087-4

5/8 Lock Washer

$

$

Currently unavailable

113

Toro 915117-4

5/8 NC Hex Nut

$

$

Currently unavailable

114

Toro 920015-4

Washer

$

$

Currently unavailable
