5-0711 - Toro 36" Side-Discharge Mower Deck (1972) PARTS LIST FOR ROTARY MOWER Parts Diagram

36" Side-Discharge Mower Deck

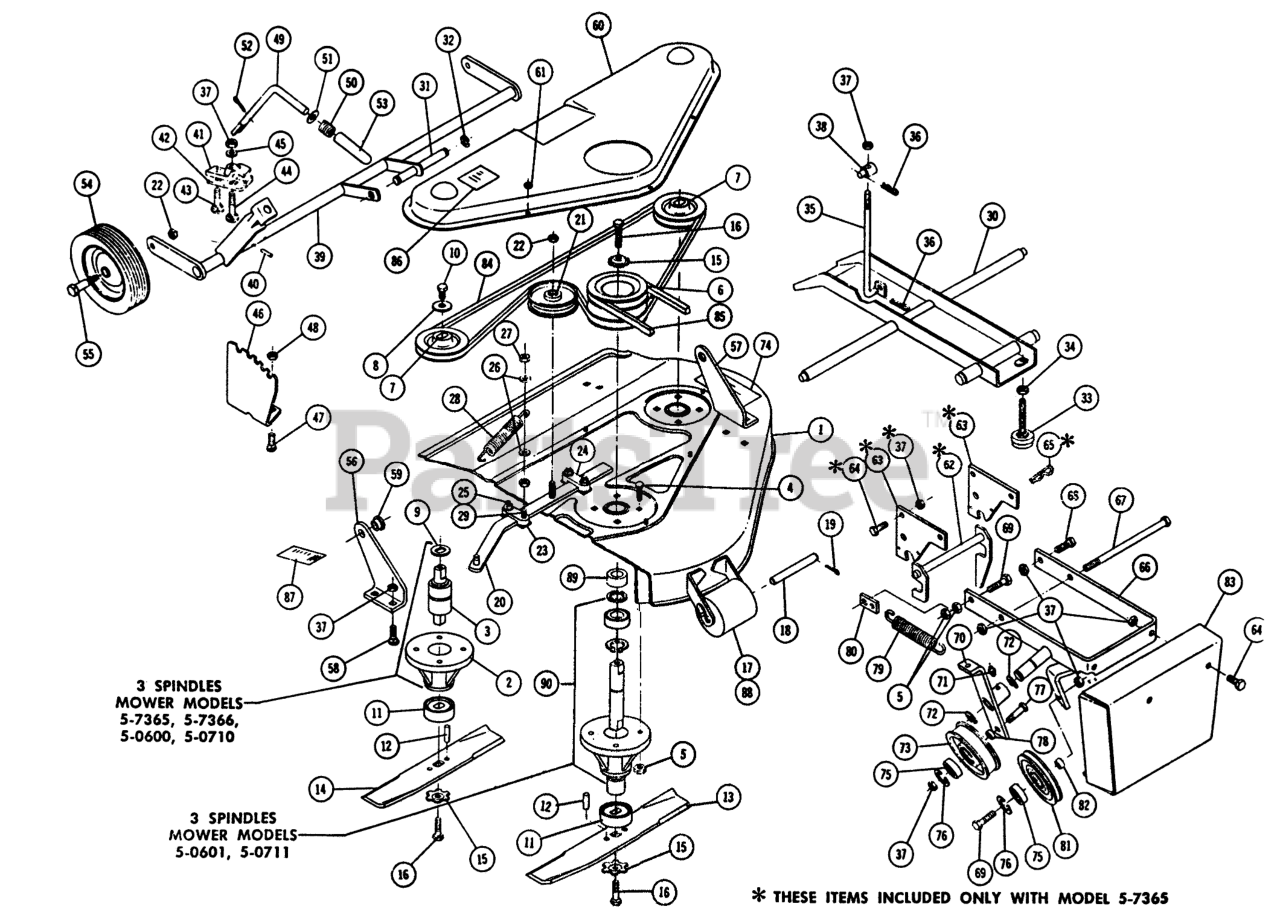

PARTS LIST FOR ROTARY MOWER Parts Diagram

  • Title

1

Toro 8385

Deck-Mower

$

$

Currently unavailable

1

Toro 100762

Deck-Mower (5-0710 & 5-0711)

$

$

Currently unavailable

2

Toro 8389

Housing
(Superseded to 101525)

$

$

Not available

3

Toro 8390

Bearing-Spindle
(Superseded to 103119)

$

$

Not available

4

Toro 900234-4

Bolt Carriage 3/8-16 x 1

$

$

Currently unavailable

5

Toro 915113-6

Nut

$

$

Currently unavailable

6

Toro 8391

Pulley

$

$

Not available

6

Toro 101232

Pulley-Middle Drive
(Superseded to 99-5357)

$

$

Not available

7

Toro 8392

Pulley
(Superseded to 105781)

$67.99

$

In Stock, only 2 left!

0

7

Toro 101231

Pulley-End
(Superseded to 105781)

$67.99

$

In Stock, only 2 left!

0

8

Toro 2844

WASHER

$2.99

$

In Stock, Qty 20+

0

9

Toro 5951

WASHER

$

$

Not available

10

Toro 908032-6

Bolt 3/8-16 x 3/4 Hex

$

$

Currently unavailable

11

Toro 8200

Cup-Spindle
(Superseded to 3716)

$

$

Not available

12

Toro 933211

SPIROL ROLL PIN

$2.49

$

Usually ships in 3-6 days

0

13

Toro 9187

Blade 14"

Note: Order Part No. 8969 (3-Blade Kit)

$

$

Not available

13

Toro 100776

Blade 14" (5-0710 & 5-0711)
(Superseded to 101335)

Note: Order Part No. 101335 (3-Blade Kit)

$164.99

$

Usually ships in 3-6 days

0

14

Toro 9188

Blade 12"
(Superseded to 8969)

Note: Order Part No. 8969 (3-Blade Kit)

$155.99

$

In Stock, only 1 left!

0

14

Toro 100777

Blade 12" (5-0710 & 5-0711)
(Superseded to 101335)

Note: Order Part No. 101335 (3-Blade Kit)

$164.99

$

Usually ships in 3-6 days

0

15

Toro 1336

WASHER

$

$

Not available

16

Toro 908033-6

Bolt 3/8-16 x 7/8

$

$

Currently unavailable

17

Toro 5240

Roller
(Superseded to 94-1599)

$13.99

$

In Stock, Qty 16

0

18

Toro 5241

Shaft
(Superseded to 101881)

$16.99

$

Usually ships in 3-6 days

0

19

Toro 932017-4

Cotter Pin

$

$

Currently unavailable

20

Toro 9256

Bar Idler Support

$

$

Not available

21

Toro 7434

Idler Pulley
(Superseded to 112426)

$26.99

$

In Stock, only 3 left!

0

22

Toro 915236-4

3/8-16 Jam Nut

$

$

Currently unavailable

23

Toro 6748

SLIDE

$

$

Not available

24

Toro 6720

Side Block
(Superseded to 742659)

$

$

Not available

25

Toro 900039-4

Bolt-5/16-18 x 1/4

$

$

Currently unavailable

26

Toro 920008-4

Washer

$

$

Currently unavailable

27

Toro 915112-6

Nut-Nylok

$

$

Currently unavailable

28

Toro 6651

SPRING R

$24.99

$

In Stock, only 1 left!

0

29

Toro 900040-4

Bolt-5/16-18 x 1 1/2

$

$

Currently unavailable

30

Toro 9287

Lift Frame

$

$

Not available

31

Toro 6704

Pin

$

$

Not available

32

Toro 5701

E Ring
(Superseded to 32120-47)

$1.49

$

In Stock, Qty 8

0

33

Toro 9297

Leveler
(Superseded to 74-2020)

$

$

Not available

34

Toro 915113-4

Nut

$

$

Currently unavailable

35

Toro 6699

ROD LIFT

$

$

Not available

36

Toro 933504-4

Hairpin

$

$

Currently unavailable

37

Toro 915663-4

3/8-16 E.S.

$

$

Currently unavailable

38

Toro 6739

TRUNNION-LIFT

$24.99

$

In Stock, Qty 5

0

39

Toro 9290

Screw-Conn. Rod

$

$

Not available

40

Toro 933188

Roll Pin
(Superseded to 32121-93)

$

$

Not available

41

Toro 8406

Support

$

$

Not available

42

Toro 8407

Clip

$

$

Not available

43

Toro 900064-4

Bolt Carriage 3/8-16 x 1

$

$

Currently unavailable

44

Toro 900067-4

Bolt Carriage 3/8-16 x 2

$

$

Currently unavailable

45

Toro 920009-4

Washer

$

$

Currently unavailable

46

Toro 9294

Quadrant

$

$

Currently unavailable

47

Toro 900037-4

Bolt Hex 5/16-18 x 3/4

$

$

Currently unavailable

48

Toro 915662-4

Nut 5/16-18

$

$

Currently unavailable

49

Toro 8162

FORK

$

$

Not available

50

Toro 8202

Spring

$

$

Not available

51

Toro 920011-4

Washer

$

$

Currently unavailable

52

Toro 932009-4

Hairpin

$

$

Currently unavailable

53

Toro 9038

GRIP

$6.99

$

In Stock, only 1 left!

0

54

Toro 5305

Wheel
(Superseded to 110506)

$42.99

$

In Stock, Qty 10

0

55

Toro 5188

BOLT-SHOULDER

$6.49

$

In Stock, Qty 14

0

56

Toro 9295

Bracket-Hanger L.H.

$

$

Not available

57

Toro 9296

Bracket-Hanger R.H.

$

$

Not available

58

Toro 900063-4

Bolt 3/8-16 x 1

$

$

Currently unavailable

59

Toro 6229

BUSHING

$10.99

$

In Stock, only 2 left!

0

60

Toro 7932

Cover
(Superseded to 104987)

$

$

Not available

61

Toro 5924

HEX NUT 10-32 E.S.

$

$

Not available

62

Toro 6710

ASSY LATCH & SHAF R

$

$

Not available

63

Toro 4497

PLATE-MTG BRKT LH R (NS)

$

$

Not available

64

Toro 908034-4

Bolt 3/8-16 x 1

$

$

Currently unavailable

65

Toro 933512-4

Hairpin

$

$

Currently unavailable

66

Toro 9361

Frame-Idler Support

$

$

Not available

67

Toro 900853-4

Bolt-Hex 3/8-16 x 8

$

$

Currently unavailable

68

Toro 908035-4

Bolt 3/8-16 x 1

$

$

Currently unavailable

69

Toro 908037-4

Bolt Hex 3/8-16

$

$

Currently unavailable

70

Toro 9811

ASSY IDLER ARM SU R

$

$

Not available

71

Toro 1030

Zerk

$

$

Not available

72

Toro 5618

E-RING

$1.49

$

In Stock, Qty 11

0

73

Toro 6740

PULLEY IDLER

$

$

Not available

74

Toro 4570

Decal
(Superseded to 93-1122)

$9.99

$

In Stock, Qty 12

0

75

Toro 4567

BEARING

$

$

Not available

76

Toro 936024

INTERNAL SNAPRING

$

$

Not available

77

Toro 911404-4

Bolt 3/8-16 x 1 5/8

$

$

Currently unavailable

78

Toro 6638

SPACER

$

$

Not available

79

Toro 100071

SPRING-EXTENSION

$11.99

$

In Stock, only 3 left!

0

80

Toro 100047

PLATE SPRING ANCHOR

$

$

Not available

81

Toro 4974

PULLEY IDLER

$

$

Not available

82

Toro 1967

SPACER

$

$

Not available

83

Toro 9812

Belt Cover

$

$

Not available

84

Toro 8411

V-BELT

$28.99

$

In Stock, only 1 left!

0

85

Toro 9360

V-BELT

$59.99

$

Usually ships in 3-6 days

0

86

Toro 9815

Decal-Belt Installation

$

$

Not available

87

Toro 100333

Decal-Height Adj.

$

$

Currently unavailable

88

Toro 100284

BUSHING

$

$

Not available

89

Toro 100674

SPACER-PULLEY

Note: Included in Kit No. 6098 for service replacement of Items 2, 3, & 9 on models other than 5-0601 & 5-0711. Also requires 101231 or 101232 pulley depending on location of replaced spindle assembly.

$

$

Not available

90

Toro 100675

Assy.-Sealed Spindle Bearing
(Superseded to 101525)

Note: Included in Kit No. 6098 for service replacement of Items 2, 3, & 9 on models other than 5-0601 & 5-0711. Also requires 101231 or 101232 pulley depending on location of replaced spindle assembly.

$

$

Not available
