5-0481 - Toro 48" Side-Discharge Mower Deck (1970) ROTARY MOWER Parts Diagram

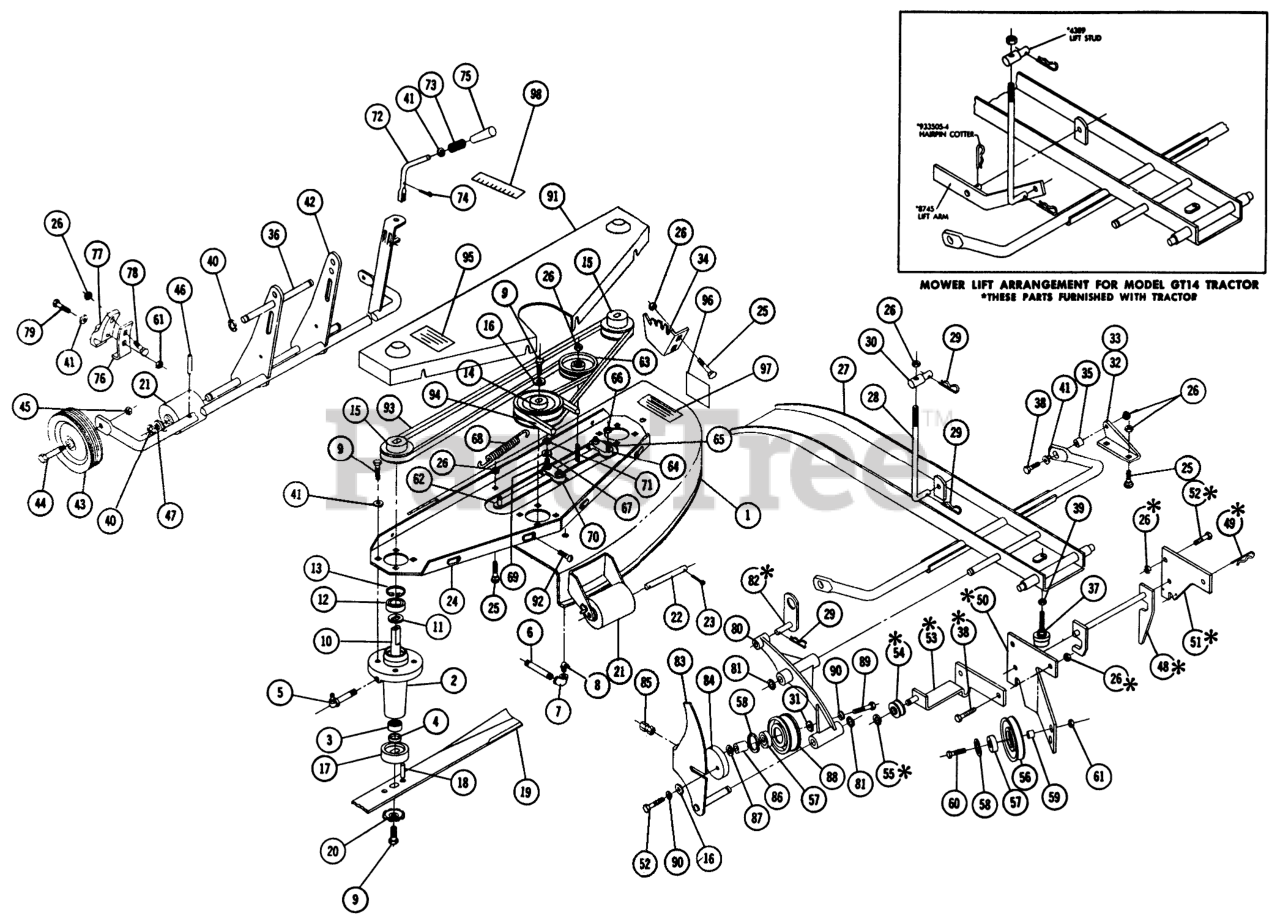

48" Side-Discharge Mower Deck

ROTARY MOWER Parts Diagram

  • Title

1

Toro 8842

Deck

$

$

Not available

2

Toro 8139

Housing-Spindle

$

$

Not available

3

Toro 1508

NEEDLE BEARING
(Superseded to 252-6)

$13.99

$

In Stock, Qty 13

0

4

Toro 100441

SEAL-OIL

$9.99

$

Usually ships in 3-6 days

0

5

Toro 4566

Fitting-Grease

$

$

Not available

6

Toro 7911

Nipple 1/8 Pipe x 1" Long

$

$

Not available

7

Toro 943021

ELBOW

$

$

Not available

8

Toro 7891

Fitting-Grease 90deg.

$

$

Not available

9

Toro 908033-6

Bolt 3/8-16 x 7/8

$

$

Currently unavailable

10

Toro 5875

Shaft Spindle
(Superseded to 101686)

$

$

Not available

11

Toro 5951

WASHER

$

$

Not available

12

Toro 1515

Ball
(Superseded to 101480)

$56.99

$

In Stock, only 3 left!

0

13

Toro 936029

INT SNAP RING

$3.49

$

Usually ships in 3-6 days

0

14

Toro 6756

Pulley-Center
(Superseded to 106848)

$

$

Not available

15

Toro 6757

Pulley-Right & Left
(Superseded to 106849)

$268.99

$

Usually ships in 3-6 days

0

16

Toro 2844

WASHER

$2.99

$

In Stock, Qty 20+

0

17

Toro 8200

Cup-Spindle
(Superseded to 3716)

$

$

Not available

18

Toro 933211

SPIROL ROLL PIN

$2.49

$

Usually ships in 3-6 days

0

19

Toro 6758

Blade 16"
(Superseded to 100202)

Note: ORDER KIT Num 100202 (3-BLADE KIT)

$

$

Not available

20

Toro 1336

WASHER

$

$

Not available

21

Toro 5240

Roller
(Superseded to 94-1599)

$13.99

$

In Stock, Qty 16

0

22

Toro 5241

Shaft
(Superseded to 101881)

$16.99

$

Usually ships in 3-6 days

0

23

Toro 932017-4

Cotter Pin

$

$

Currently unavailable

24

Toro 6759

Support

$

$

Not available

25

Toro 900062-4

Bolt-3/8-16 x 3/4

$

$

Currently unavailable

26

Toro 915663-4

3/8-16 E.S.

$

$

Currently unavailable

27

Toro 6761

Ass-y Support-Mower

$

$

Not available

28

Toro 6699

ROD LIFT

$

$

Not available

29

Toro 933504-4

Hairpin

$

$

Currently unavailable

30

Toro 6739

TRUNNION-LIFT

$24.99

$

In Stock, Qty 5

0

31

Toro 920083-4

Lockwasher

$

$

Currently unavailable

32

Toro 6764

Bracket-Deck R.H.

$

$

Not available

33

Toro 6765

Bracket-Deck L.H.

$

$

Currently unavailable

34

Toro 6767

Quadrant

$

$

Not available

34

Toro 100564

Quadrant

$

$

Not available

35

Toro 2138

SPACER

$

$

Not available

36

Toro 6704

Pin

$

$

Not available

37

Toro 100087

LEVELER MOWER

$

$

Not available

38

Toro 908035-4

Bolt 3/8-16 x 1

$

$

Currently unavailable

39

Toro 915112-4

Nut, 5/16-18

$

$

Currently unavailable

40

Toro 5701

E Ring
(Superseded to 32120-47)

$1.49

$

In Stock, Qty 8

0

41

Toro 920009-4

Washer

$

$

Currently unavailable

42

Toro 8143

Gage Wheel Support 5-1482 & 5-1483

$

$

Currently unavailable

42

Toro 100413

Ass-y.-Gage Wheel Support

$

$

Currently unavailable

43

Toro 5305

Wheel
(Superseded to 110506)

$42.99

$

In Stock, Qty 10

0

44

Toro 5188

BOLT-SHOULDER

$6.49

$

In Stock, Qty 14

0

45

Toro 915236-4

3/8-16 Jam Nut

$

$

Currently unavailable

46

Toro 933188

Roll Pin
(Superseded to 32121-93)

$

$

Not available

47

Toro 920011-4

Washer

$

$

Currently unavailable

48

Toro 6710

ASSY LATCH & SHAF R

$

$

Not available

49

Toro 933512-4

Hairpin

$

$

Currently unavailable

50

Toro 6712

MOUNTING BRACKET R

$231.99

$

Usually ships in 3-6 days

0

51

Toro 4497

PLATE-MTG BRKT LH R (NS)

$

$

Not available

52

Toro 908034-4

Bolt 3/8-16 x 1

$

$

Currently unavailable

53

Toro 8174

ASSY BRACKET AND R

$

$

Not available

54

Toro 6714

ROLLER

$

$

Not available

55

Toro MW-4564

Lock Rod

$

$

Currently unavailable

56

Toro 4974

PULLEY IDLER

$

$

Not available

57

Toro 4567

BEARING

$

$

Not available

58

Toro 936024

INTERNAL SNAPRING

$

$

Not available

59

Toro 6638

SPACER

$

$

Not available

60

Toro 908036-4

Bolt, 3/8-16 x 1/2

$

$

Currently unavailable

61

Toro 915113-6

Nut

$

$

Currently unavailable

62

Toro 6715

ASSY BAR IDLER SUPPO

$

$

Not available

63

Toro 6769

Pulley-Idler
(Superseded to 93-1622)

$42.99

$

In Stock, Qty 20+

0

64

Toro 6720

Side Block
(Superseded to 742659)

$

$

Not available

65

Toro 900039-4

Bolt-5/16-18 x 1/4

$

$

Currently unavailable

66

Toro 915662-4

Nut 5/16-18

$

$

Currently unavailable

67

Toro 920008-4

Washer

$

$

Currently unavailable

68

Toro 6651

SPRING R

$24.99

$

In Stock, only 1 left!

0

69

Toro 900040-4

Bolt-5/16-18 x 1 1/2

$

$

Currently unavailable

70

Toro 6748

SLIDE

$

$

Not available

71

Toro 915112-6

Nut-Nylok

$

$

Currently unavailable

72

Toro 8162

FORK

$

$

Not available

73

Toro 8202

Spring

$

$

Not available

74

Toro 932009-4

Hairpin

$

$

Currently unavailable

75

Toro 9038

GRIP

$6.99

$

In Stock, only 1 left!

0

76

Toro 6723

Clip-Axle

$

$

Not available

77

Toro 6724

SUPPORT AXLE

$24.99

$

In Stock, only 1 left!

0

78

Toro 900064-4

Bolt Carriage 3/8-16 x 1

$

$

Currently unavailable

79

Toro 911404-4

Bolt 3/8-16 x 1 5/8

$

$

Currently unavailable

80

Toro 6725

ARM PIVOT R
(Superseded to 6725-01)

$

$

Not available

81

Toro 4736

RING LAM L 262

$

$

Not available

82

Toro 6727

Cam Arm

$

$

Not available

83

Toro 7068

ASSEMBLY CAM LEVE R

$

$

Not available

84

Toro 6733

Ass-y Idle Support

$

$

Not available

85

Toro 6736

Nut

$

$

Not available

86

Toro 6814

SPACER

$

$

Not available

87

Toro 920156

Lockwasher-3/8 Int.Tooth
(Superseded to 3254-6)

$0.99

$

Usually ships in 3-6 days

0

88

Toro 6740

PULLEY IDLER

$

$

Not available

89

Toro 908037-4

Bolt Hex 3/8-16

$

$

Currently unavailable

90

Toro 920083-4

Lockwasher

$

$

Currently unavailable

91

Toro 6770

Cover
(Superseded to 106081)

$

$

Not available

92

Toro 960150-4

Bolt 1/4-20 x 3/8

$

$

Currently unavailable

93

Toro 1594

V-BELT

$39.99

$

In Stock, Qty 6

0

94

Toro 9783

V BELT

$36.99

$

Usually ships in 3-6 days

0

95

Toro 4580

Decal Belt Installation

$

$

Currently unavailable

96

Toro 4410

Decal
(Superseded to 102832)

$

$

Not available

97

Toro 4570

Decal
(Superseded to 93-1122)

$9.99

$

In Stock, Qty 12

0

98

Toro 100333

Decal-Height Adj.

$

$

Currently unavailable
