4W115D (9160-3) - Generac 5,000 Watt Portable Generator Generator Parts Diagram

5,000 Watt Portable Generator

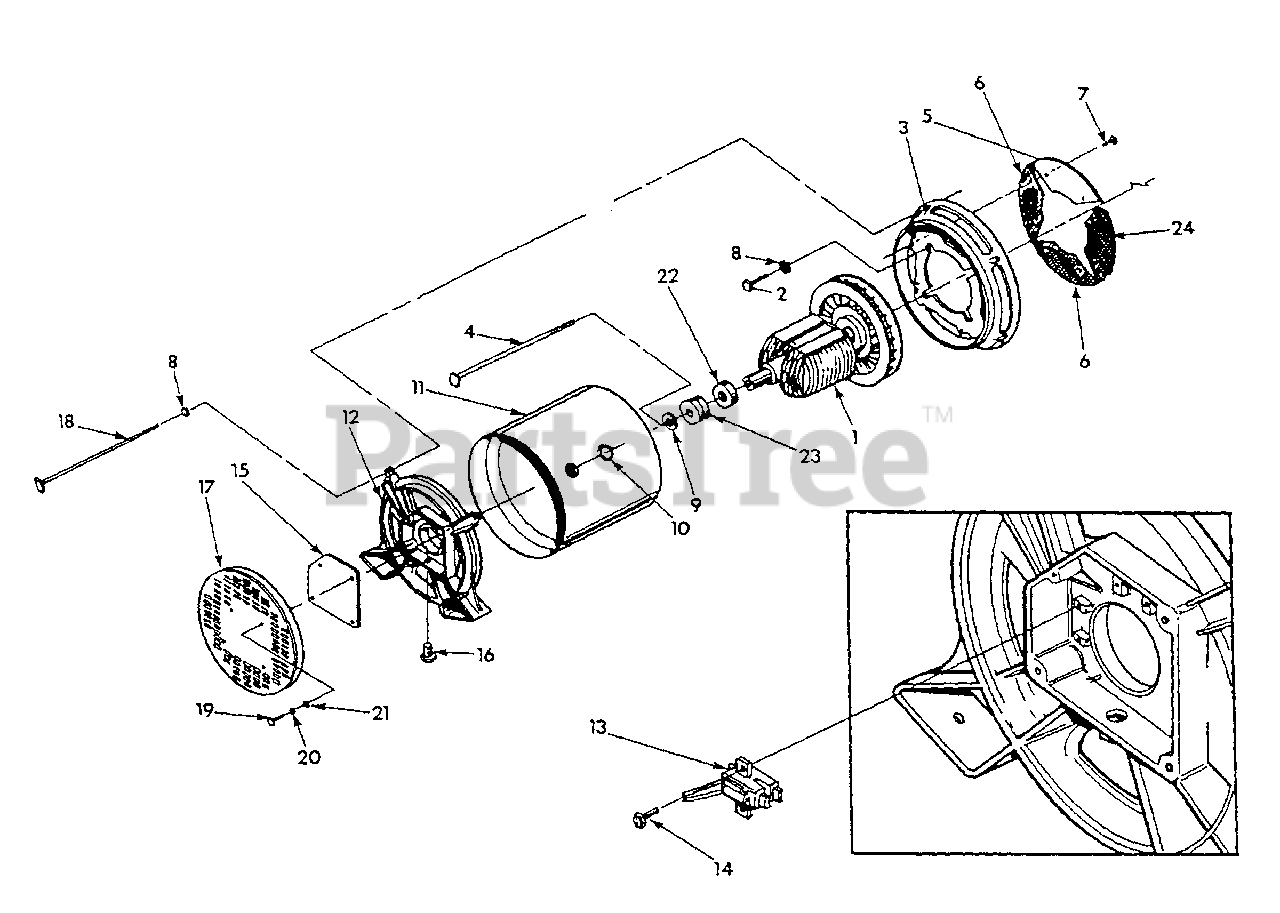

Generator Parts Diagram

  • Title
1

Briggs & Stratton 86554

5 kW Rotor assembly

$

$

Currently unavailable

2

Briggs & Stratton 43107

M8-125 x 25mm Capscrew
(Superseded to 43107GS)

$3.49

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 78806

Engine adaptor
(Superseded to BB2700GS)

$182.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 86925

M10-1.5 x 286mm Capscrew

$

$

Not available

5

$

$

Not available

$

$

Not available

7

Briggs & Stratton 46852

No. 10-32 x 1/4" Screw

$

$

Not available

8

Briggs & Stratton 22129

M8 (5/16) Lock washer
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

9

Briggs & Stratton 46526

M10 Lock washer

$

$

Not available

10

Briggs & Stratton 38057

Rubber grommet
(Superseded to 38057GS)

$3.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 86552

5 kW Stator assembly

$

$

Not available

12

Briggs & Stratton 69804A

Rear bearing carrier

$

$

Currently unavailable

13

Briggs & Stratton 86854

Brush assembly holder

$

$

Currently unavailable

13

Briggs & Stratton 23877D

Brush holder
(Superseded to 23877DGS)

$11.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton A24044A

Brush
(Superseded to A24044AGS)

$11.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 52813

M4-0.7 x 20mm Screw

$

$

Currently unavailable

15

Briggs & Stratton 69892

Rear bearing carrier gasket

$

$

Currently unavailable

16

Briggs & Stratton 70992

Flame arrestor

$

$

Currently unavailable

17

Briggs & Stratton 69819

Rear bearing carrier plate

$

$

Currently unavailable

18

Briggs & Stratton 47481

Stator bolt
(Superseded to 47481GS)

$12.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 47411

M6-1.0 x 16mm Capscrew

$

$

Not available

20

Briggs & Stratton 22097

M6 Lock washer
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

21

22473

M6 Flat washer

$

$

Not available

$

$

Currently unavailable

$

$

Currently unavailable

$

$

Currently unavailable
