4W115A (9160-0) - Generac 5,000 Watt Portable Generator Generator Parts Diagram

5,000 Watt Portable Generator

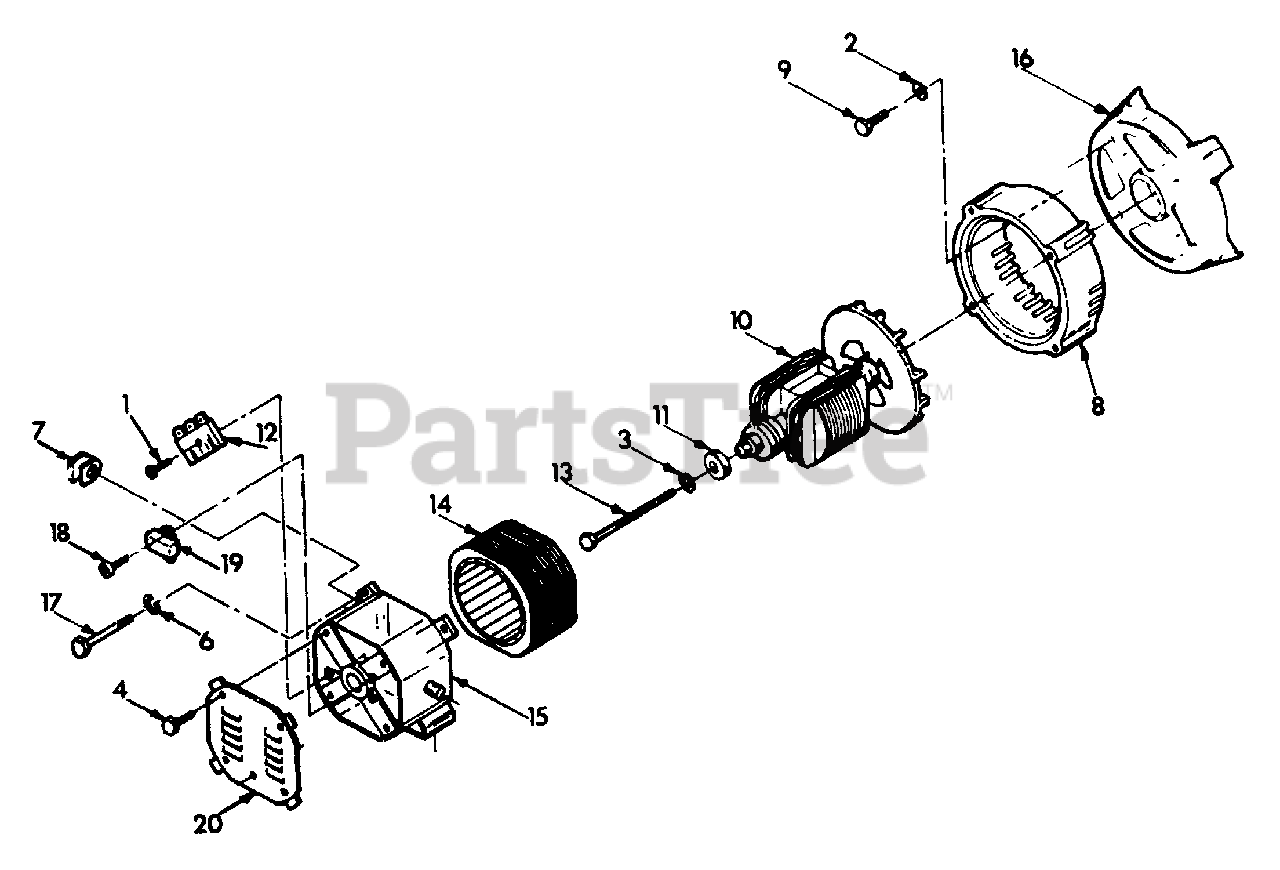

Generator Parts Diagram

  • Title

1

Briggs & Stratton 66849A

M5-0.8 x 20mm Screw
(Superseded to 66849AGS)

$4.49

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 22129

5/16" Lock washer
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

3

Briggs & Stratton 67451

Special M8 flat washer

$

$

Currently unavailable

4

Briggs & Stratton 74908

M5-0.8 x 8mm Screw
(Superseded to 74908GS)

$2.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 22097

M6 Lockwasher
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 67022

Rubber grommet
(Superseded to 67022GS)

$3.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 66365D

Adapter casing
(Superseded to 66365DGS)

$70.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 23564

5/16-24 x 2-1/2" Hex screw

$

$

Currently unavailable

10

Briggs & Stratton 70418

Rotor assembly

$

$

Currently unavailable

11

Briggs & Stratton 65791

Ball bearing
(Superseded to 65791GS)

$34.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 65795

Battery charge rectifier
(Superseded to 65795GS)

$

$

Not available

13

Briggs & Stratton 29024

5/16"-24 x 9" Rotor bolt

$

$

Not available

14

Briggs & Stratton 77243

Stator assembly

$

$

Not available

15

Briggs & Stratton 66825

Rear bearing carrier

$

$

Currently unavailable

16

Briggs & Stratton 68342

Adapter spacer

$

$

Currently unavailable

17

Briggs & Stratton 66449F

M6-1.00 x 140mm stator bolt

$

$

Not available

18

Briggs & Stratton 66849

M5-0.8 x 15mm Screw
(Superseded to 66849GS)

$4.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 66836

Brush holder

$

$

Currently unavailable

20

Briggs & Stratton 67025

Rear cover

$

$

Currently unavailable
