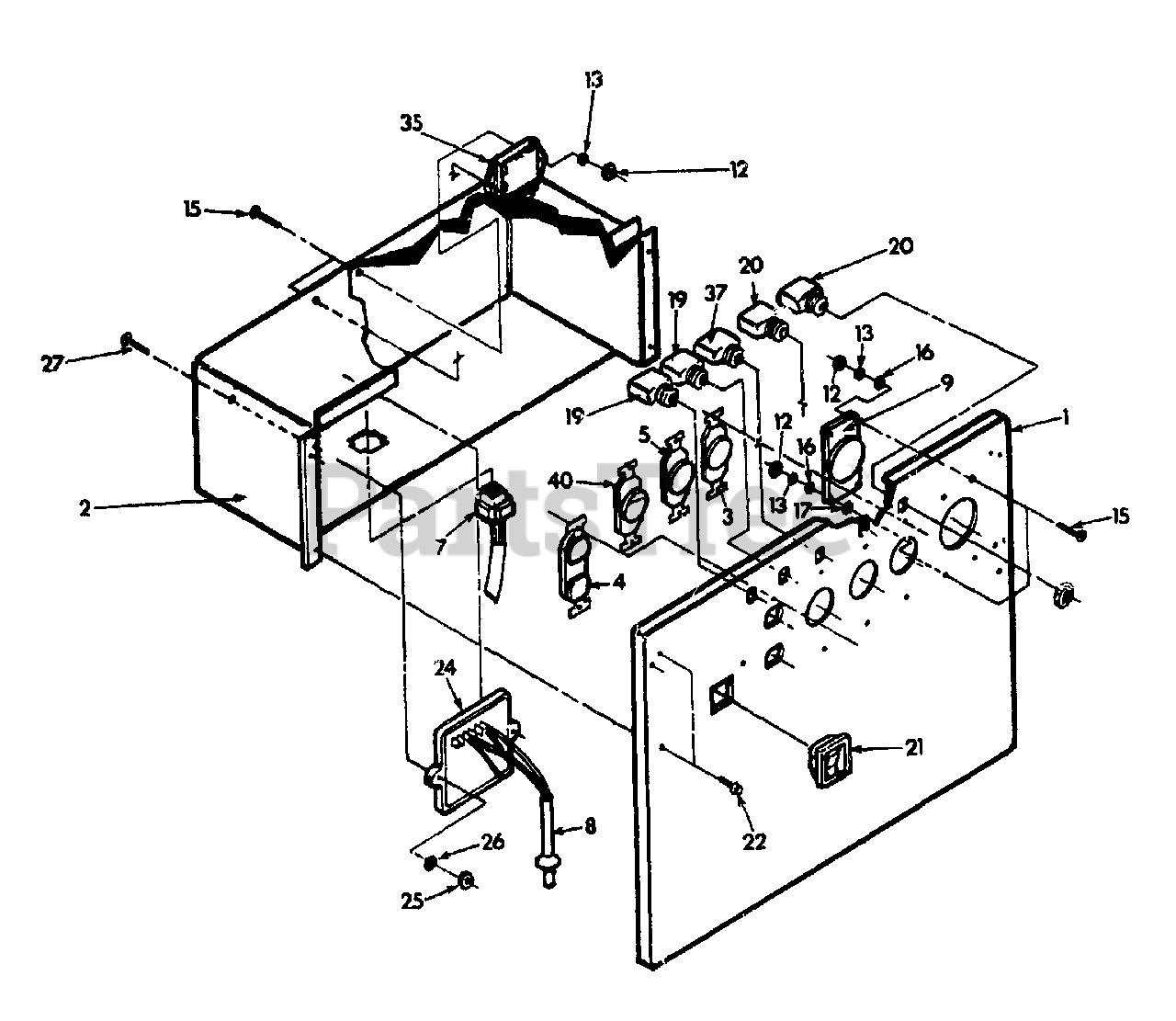

4W113D (9163-2) - Generac 8,000 Watt Portable Generator Control Panel And Cover Parts Diagram

8,000 Watt Portable Generator

Control Panel And Cover Parts Diagram

  • Title

1

Briggs & Stratton 79720

Control panel

$

$

Currently unavailable

2

Briggs & Stratton 79223

Control panel cover

$

$

Not available

3

Briggs & Stratton 43437

120/240 volt, 30 amp Outlet

$

$

Not available

4

Briggs & Stratton 63025

120 volt, 15 amp Duplex
(Superseded to 63025GS)

$12.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 68868

120 volt, 30 amp Outlet
(Superseded to 705932)

$37.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 63993

Connector

$

$

Currently unavailable

8

Briggs & Stratton 77244

Field boost assembly

$

$

Currently unavailable

9

Briggs & Stratton 74191

250 volt, 50 amp Receptacle
(Superseded to 74191GS)

$26.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 51715

M4-0.7 Hex nut
(Superseded to 51715GS)

$2.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 22264

M4 Lock washer

$

$

Not available

15

Briggs & Stratton 75475

M4-0.7 x 10mm Screw

$

$

Not available

16

Briggs & Stratton 43180

M4 Flat washer
(Superseded to 5043180B)

$54.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 23365

M4 Shakeproof washer
(Superseded to 5023365)

$462.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 75207D

15 amp Circuit breaker
(Superseded to 75207DGS)

$13.99

$

Usually ships in 2-12 days

0

20

75207A

30 amp Circuit breaker

$

$

Not available

21

Briggs & Stratton 66817

Engine control switch
(Superseded to 66817GS)

$39.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 63036

No. 8-18 x 1/4" Screw
(Superseded to 63036GS)

$2.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 83049

AC voltage regulator
(Superseded to 83049GS)

$313.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 51716

M5-0.8 Hex nut
(Superseded to 51716GS)

$2.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 49226

M5 Lock washer
(Superseded to 49226GS)

$2.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 79224

M5-0.8 x 30mm Screw

$

$

Not available

35

Briggs & Stratton 77314

Thermal relay

$

$

Not available

37

Briggs & Stratton 75207

20 amp Circuit breaker
(Superseded to 209872GS)

$9.99

$

In Stock, Qty 14

0

40

Briggs & Stratton 74190

120 volt, 20 amp Outlet

$

$

Not available
