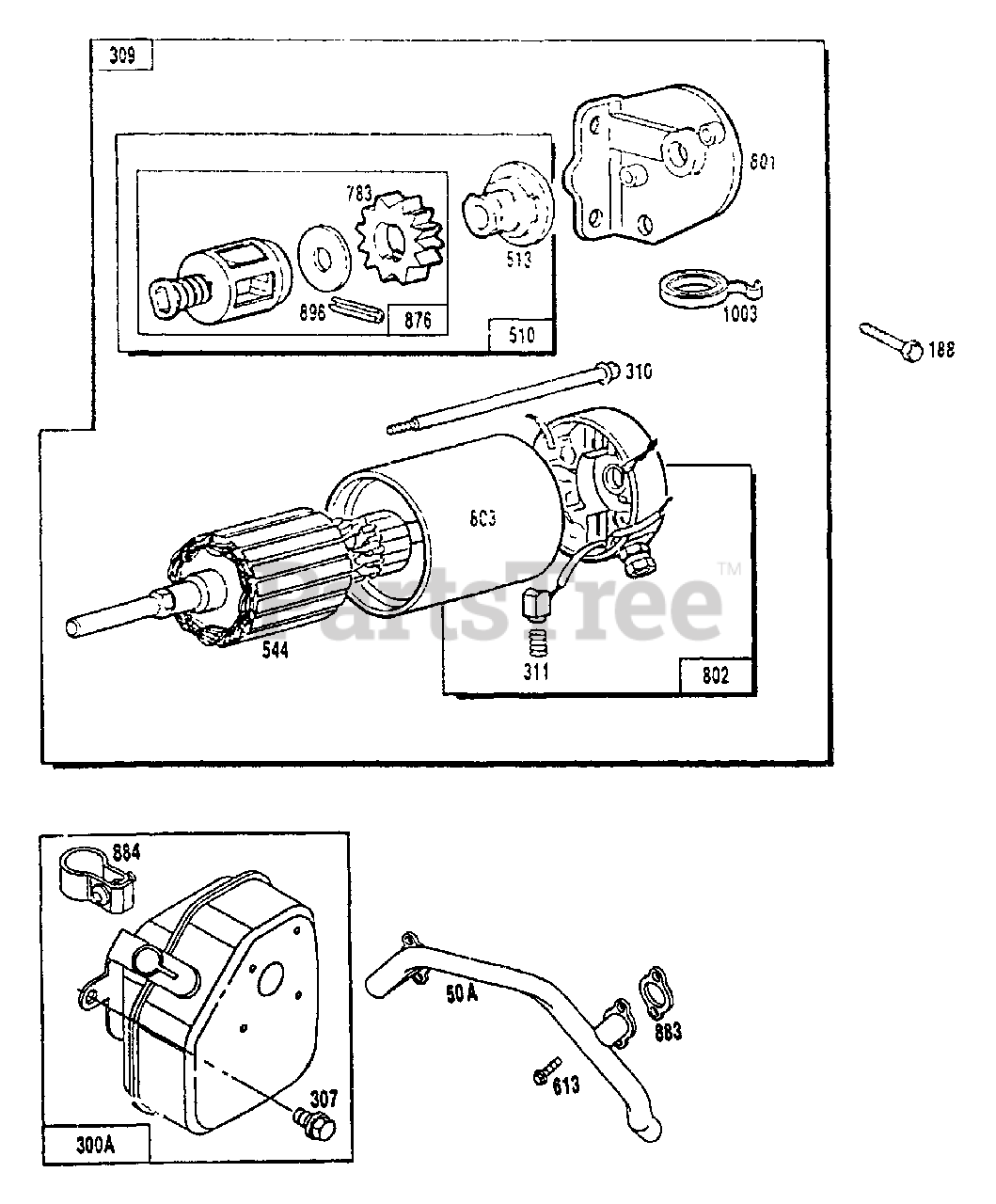

4W113A (9163-0) - Generac 8,000 Watt Portable Generator Starter Assembly & Manifold Replacement Parts Parts Diagram

8,000 Watt Portable Generator

Starter Assembly & Manifold Replacement Parts Parts Diagram

  • Title

50A

Briggs & Stratton 69370

805142 -- Exhaust manifold

Note: Contact Generac for quantity required

$

$

Currently unavailable

188

Briggs & Stratton 39253

805247 -- Screw
(Superseded to 39253GS)

Note: Contact Generac for quantity required

$3.49

$

In Stock, Qty 6

0

300A

Briggs & Stratton 81958

807558 -- Exhaust muffler
(Superseded to 807742)

Note: Contact Generac for quantity required

$157.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 67898

805025 -- Screw

Note: Contact Generac for quantity required

$

$

Not available

309

Briggs & Stratton 75255

399169 -- Starter motor

Note: Contact Generac for quantity required

$

$

Currently unavailable

310

Briggs & Stratton 75256

94169 -- Bolt

Note: Contact Generac for quantity required

$

$

Currently unavailable

311

Briggs & Stratton 75257

490311 -- Brush assembly

Note: Contact Generac for quantity required

$

$

Currently unavailable

510

Briggs & Stratton 75250

490421 -- Drive assembly

Note: Contact Generac for quantity required

$

$

Currently unavailable

513

Briggs & Stratton 75261

398003 -- Clutch assembly

Note: Contact Generac for quantity required

$

$

Currently unavailable

544

Briggs & Stratton 75269

490309 -- Armature assembly

Note: Contact Generac for quantity required

$

$

Currently unavailable

613

Briggs & Stratton 69397

805158 -- Screw

Note: Contact Generac for quantity required

$

$

Currently unavailable

783

Briggs & Stratton 75264

280104 -- Gear
(Superseded to 7075264YP)

Note: Contact Generac for quantity required

$100.99

$

Usually ships in 2-12 days

0

801

Briggs & Stratton 75266

394857 -- Drive end cap assembly

Note: Contact Generac for quantity required

$

$

Currently unavailable

802

Briggs & Stratton 75266

490310 -- Commutator end assm.

Note: Contact Generac for quantity required

$

$

Currently unavailable

803

Briggs & Stratton 75267

399172 -- Housing assembly
(Superseded to 7075267YP)

Note: Contact Generac for quantity required

$76.99

$

Usually ships in 2-12 days

0

876

Briggs & Stratton 75268

490467 -- Gear kit
(Superseded to 7075268YP)

Note: Contact Generac for quantity required

$44.99

$

Usually ships in 2-12 days

0

883

Briggs & Stratton 67897

805024 -- Exhaust manifold gasket
(Superseded to 691613)

Note: Contact Generac for quantity required

$5.49

$

Usually ships in 2-12 days

0

884

Briggs & Stratton 74807

807595 -- Muffler clamp

Note: Contact Generac for quantity required

$

$

Currently unavailable

896

Briggs & Stratton 75270

94288 -- Roll pin
(Superseded to 7075270YP)

Note: Contact Generac for quantity required

$50.99

$

Usually ships in 2-12 days

0

1003

Briggs & Stratton 80011

490316 -- Brush spring set

Note: Contact Generac for quantity required

$

$

Currently unavailable
