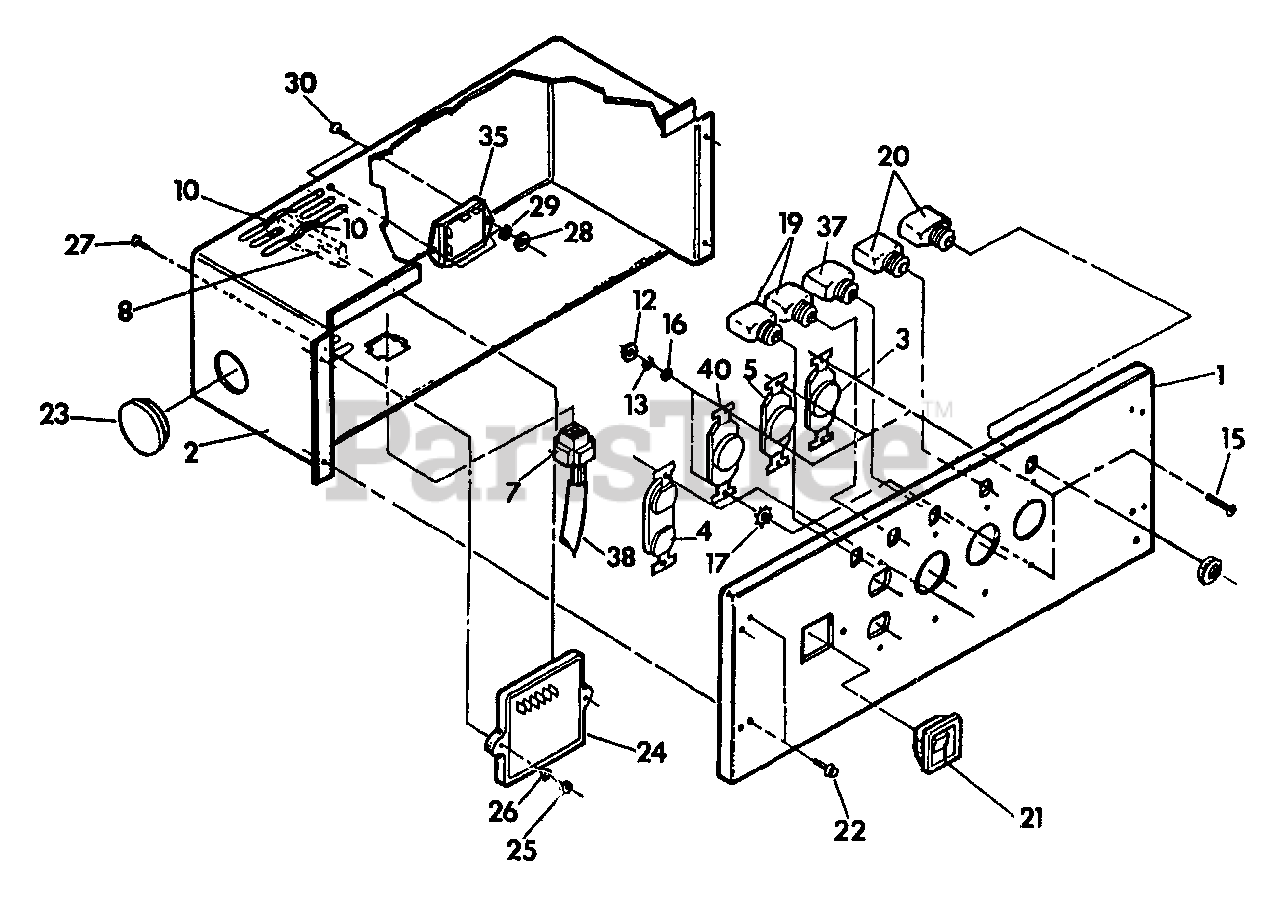

4W113A (9163-0) - Generac 8,000 Watt Portable Generator Replacement Parts For Control Panel Parts Diagram

8,000 Watt Portable Generator

Replacement Parts For Control Panel Parts Diagram

  • Title

1

Briggs & Stratton 80808

Silkscreen 8kW Control Panel

$

$

Currently unavailable

2

Briggs & Stratton 77315

Control Panel Cover

$

$

Currently unavailable

3

Briggs & Stratton 43437

120/240 volts, 30 amp Twistlock outlet

$

$

Not available

4

Briggs & Stratton 63025

120 volts, 15 amp Duplex outlet
(Superseded to 63025GS)

$12.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 68868

120 volts, 30 amp Twistlock outlet
(Superseded to 705932)

$37.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 63993

Connector

$

$

Currently unavailable

8

Briggs & Stratton 77244

Field boost assembly

$

$

Currently unavailable

10

Briggs & Stratton 29333A

Tie-wrap
(Superseded to 29333AGS)

$4.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 43180

Flat washer
(Superseded to 5043180B)

$54.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 51715

M4-0.7 Hex nut
(Superseded to 51715GS)

$2.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 22264

No. 8 Lockwasher

$

$

Not available

15

Briggs & Stratton 75475

M4-0.7 x 10mm Pan head machine screw

$

$

Not available

16

Briggs & Stratton 38150

No. 8 Flat washer
(Superseded to 38150GS)

$2.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 23365

No. 8 Shakeproof washer
(Superseded to 5023365)

$462.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 75207

15 amp Circuit breaker
(Superseded to 209872GS)

$9.99

$

In Stock, only 4 left!

0

20

75207A

30 amp Circuit breaker

$

$

Not available

21

Briggs & Stratton 66817

Engine control switch
(Superseded to 66817GS)

$39.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 63036

No. 8-18 x 1/4" Crimptite screw
(Superseded to 63036GS)

$2.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 58221

1-3/4" dia. Hole plug

$

$

Not available

24

Briggs & Stratton 74074

A-C voltage regulator

$

$

Currently unavailable

25

Briggs & Stratton 22158

No. 10-32 Hex nut
(Superseded to 5022158)

$30.99

$

In Stock, Qty 20+

0

26

Briggs & Stratton 22152

No. 10 Lock washer
(Superseded to 5022152)

$32.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 33534

No. 10-32 x 1-1/8" Pan head screw

$

$

Currently unavailable

28

Briggs & Stratton 22188

No. 6-32 Hex nut

$

$

Currently unavailable

29

Briggs & Stratton 22155

No. 6 Lock washer
(Superseded to 5022155)

$130.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 36902

No. 6-32 x 1/2" Pan head screw
(Superseded to 36902GS)

$3.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 77314

Thermal relay

$

$

Not available

37

Briggs & Stratton 75207

20 amp Circuit breaker
(Superseded to 209872GS)

$9.99

$

In Stock, only 4 left!

0

38

Briggs & Stratton 22661Y

640mm Sleeving

$

$

Currently unavailable

40

Briggs & Stratton 74190

120 volts, 20 amp Twistlock outlet

$

$

Not available
