4W113A (9163-0) - Generac 8,000 Watt Portable Generator Engine Replacement Gasket Sets Parts Diagram

8,000 Watt Portable Generator

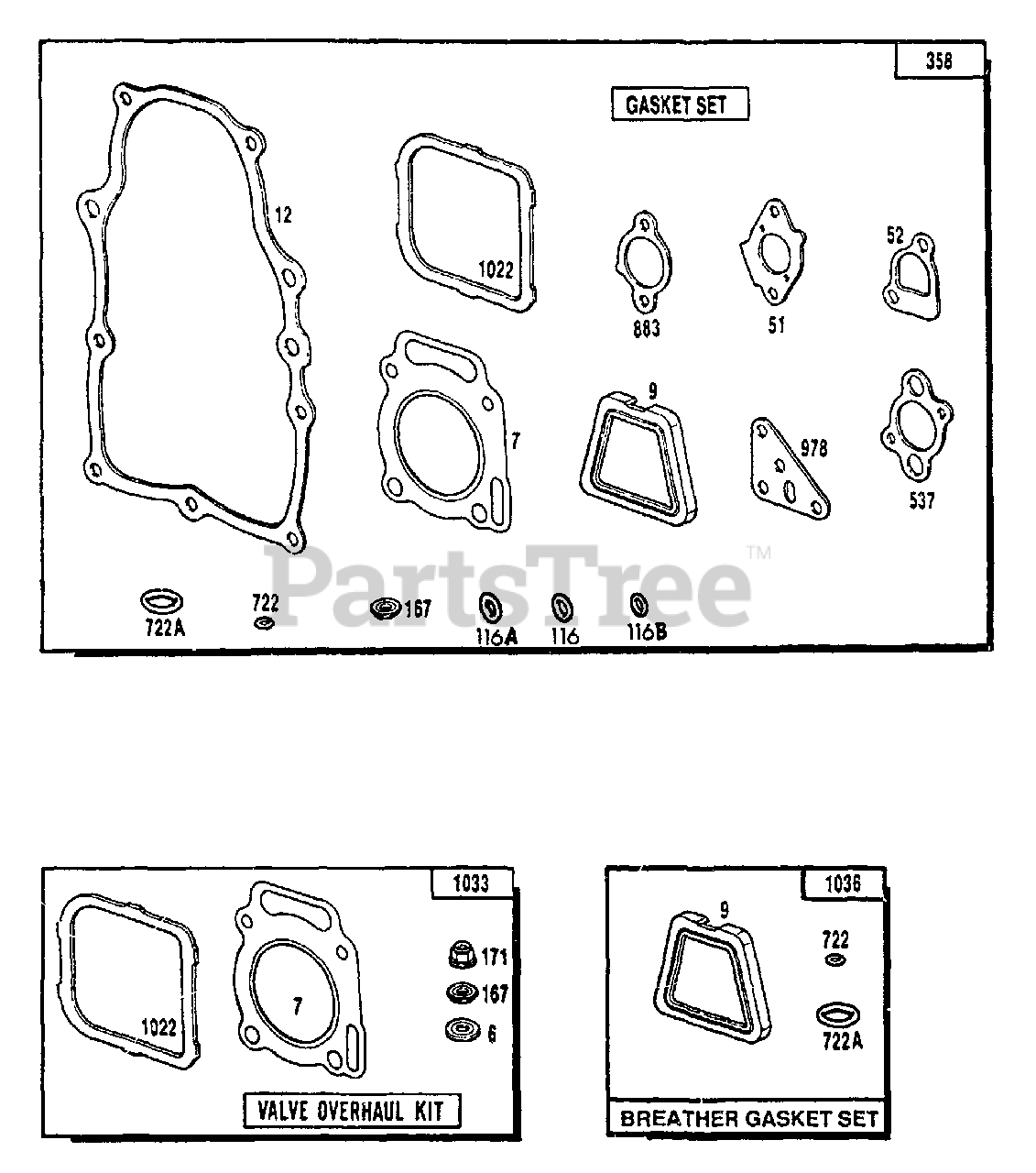

Engine Replacement Gasket Sets Parts Diagram

  • Title

6

Briggs & Stratton 70169

805193 -- Cylinder hd. washer

Note: Contact Generac for quantity required

$

$

Currently unavailable

7

Briggs & Stratton 69332

805111 -- Cylinder hd. gasket

Note: Contact Generac for quantity required

$

$

Currently unavailable

9

Briggs & Stratton 72315

805379 -- Breather gasket

Note: Contact Generac for quantity required

$

$

Currently unavailable

12

Briggs & Stratton 69336

805112 -- Crankcase cover gskt

Note: Contact Generac for quantity required

$

$

Not available

51

Briggs & Stratton 67290

805264 -- Carburetor mtg gasket

Note: Contact Generac for quantity required

$

$

Currently unavailable

52

Briggs & Stratton 67895

805023 -- Intake manifold gasket
(Superseded to 692035)

Note: Contact Generac for quantity required

$3.49

$

In Stock, Qty 17

0

116

Briggs & Stratton 68573

805058 -- O-ring (oil pump)

Note: Contact Generac for quantity required

$

$

Currently unavailable

116A

Briggs & Stratton 70506

805198 -- O-ring (crankcase)

Note: Contact Generac for quantity required

$

$

Currently unavailable

116B

Briggs & Stratton 70541

805316 -- O-ring (pick-up tube)

Note: Contact Generac for quantity required

$

$

Currently unavailable

167

Briggs & Stratton 75253

805420 -- Valve cover washer

Note: Contact Generac for quantity required

$

$

Currently unavailable

171

Briggs & Stratton 67885

805019 -- Nut
(Superseded to 67885GS)

Note: Contact Generac for quantity required

$6.99

$

In Stock, only 1 left!

0

358

Briggs & Stratton 72528

807640 -- Gasket set

Note: Contact Generac for quantity required

$

$

Currently unavailable

537

Briggs & Stratton 66480

805003 -- Air cleaner gasket

Note: Contact Generac for quantity required

$

$

Currently unavailable

722

Briggs & Stratton 75262

805482 -- Breather screw seal

Note: Contact Generac for quantity required

$

$

Currently unavailable

722A

Briggs & Stratton 75263

805483 -- Breather screw seal

Note: Contact Generac for quantity required

$

$

Currently unavailable

883

Briggs & Stratton 67897

805024 -- Exhaust manifold gasket
(Superseded to 691613)

Note: Contact Generac for quantity required

$5.49

$

Usually ships in 2-12 days

0

978

Briggs & Stratton 68548

805250 -- Oil filter adapter gasket

Note: Contact Generac for quantity required

$

$

Not available

1022

Briggs & Stratton 67920

805028 -- Valve cover gasket

Note: Contact Generac for quantity required

$

$

Currently unavailable

1033

Briggs & Stratton 75271

807668 -- Valve overhaul kit

Note: Contact Generac for quantity required

$

$

Currently unavailable

1036

Briggs & Stratton 80012

808688 -- Breather gasket set

Note: Contact Generac for quantity required

$

$

Currently unavailable
